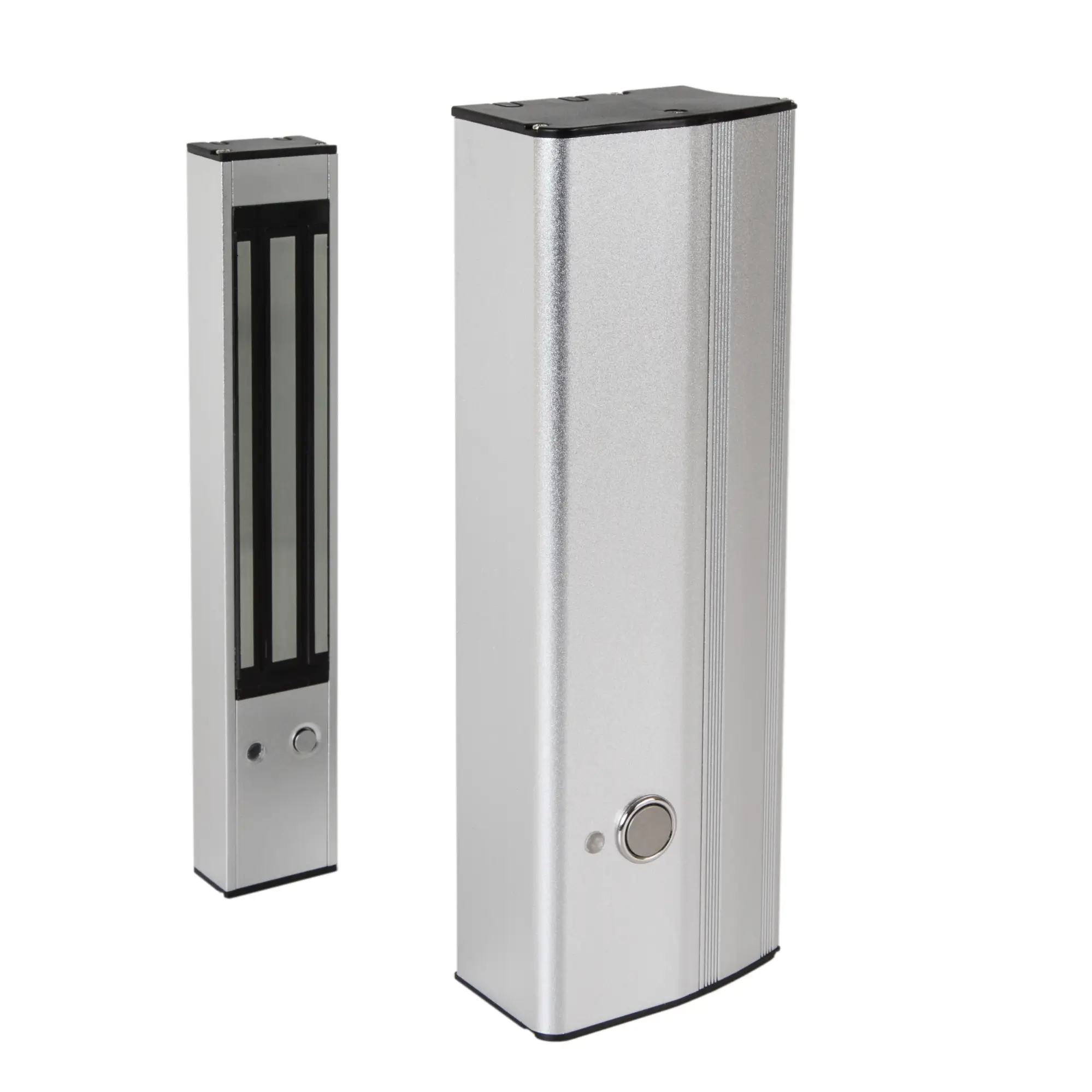

RGL DHM600 Slimline Magnetic Door Lock With Built-In Exit Button & Timer

The RGL DHM600 Slimline Magnetic Door Lock With Built-In Exit Button & Timer provides a feature-rich and aesthetically pleasing solution for door access control. This slimline lock combines a powerful holding force with a user-friendly exit button, built-in timer, and real-time monitoring capabilities. With its versatile design and reliable operation, the RGL DHM600 is a valuable addition to access control systems for various door applications.

The RGL DHM600 Slimline Magnetic Door Lock With Built-In Exit Button & Timer has a holding force of 600lbs (280kgs). It is suitable for use on 90 degree wooden or aluminium doors and is monitored for door open or door closed detection. The DHM600 also has a built-in delay timer that can be set to 0, 2.5, 5, or 9 seconds.

Key Features

  • Housing: Aluminium
  • Power requirement: 12/24 VDC @ 500/250 mA
  • Holding force: 280 kg (600 lbs)
  • Surge protection: Built-in
  • Door monitoring: Yes (open or closed)
  • Door compatibility: 90 degree wooden or aluminium doors
  • Delay timer: Built-in, with settings of 0, 2.5, 5, or 9 seconds
  • Exit button: Built-in


Full Description

Combine Unobtrusive Design with Reliable Security and Convenient Access Control

The RGL DHM600 Slimline Magnetic Door Lock With Built-In Exit Button & Timer offers a practical and aesthetically pleasing solution for door access control. This feature-rich lock boasts a powerful holding force, integrated exit button, and built-in timer, making it a versatile choice for various applications.

Key Features:

  • Slimline Design: The low-profile aluminium housing provides a discreet appearance that complements modern door designs.
  • 600lb (280kg) Holding Force: Delivers exceptional locking strength for reliable door security.
  • 12/24VDC Operation: Offers compatibility with different power supply setups for flexible installation.
  • Built-in Surge Protection: Safeguards the unit from electrical spikes and power surges.
  • Monitored (Door Open/Closed Detection): Provides real-time status for integration with access control systems.
  • Suitable for 90-Degree Wooden or Aluminium Doors: Ensures compatibility with a wide range of door types.
  • Delay Timer (0/2.5/5/9 Seconds): Allows for customisation of the door unlocking delay after pressing the exit button.
  • Built-in Exit Button: Enables convenient door unlocking from the inside.
  • Visible LED Indication: Provides a clear visual status of the lock’s operation.
  • No Residual Magnetism: Eliminates potential interference with electronic devices near the door.
  • Centre-Door Installation: Recommended for optimal performance and to prevent door distortion.
  • Full Data Sheet

Benefits of RGL DHM600 Magnetic Lock:

  • Unobtrusive Design: The slimline form factor complements modern aesthetics without compromising security.
  • Enhanced Security: The powerful holding force deters unauthorised access.
  • Simplified Access Control: Integrated exit button and timer offer user-friendly operation.
  • Versatile Application: Suitable for various door access control systems in commercial, residential, and industrial settings.
  • Reliable Performance: Monitored operation and surge protection ensure dependable functionality.

Built-in Timer for Customised Door Unlocking:

The RGL DHM600 features a convenient built-in timer that allows you to program a delay between pressing the exit button and the door unlocking. This offers several benefits:

  • Enhanced Security: A short delay (2.5 seconds) can deter tailgating attempts, where someone follows closely behind an authorised person to gain access.
  • Traffic Control: In high-traffic areas, a slight delay (2.5-5 seconds) can help manage the flow of people exiting and ensure the door doesn’t unlock too quickly before someone has fully passed through.
  • Egress Safety: A longer delay (5-9 seconds) can be beneficial in specific situations, such as allowing time for pedestrians to cross in front of an automated door before it opens.

By adjusting the timer settings (0, 2.5, 5, or 9 seconds), you can customise the unlocking behaviour of the RGL DHM600 to suit your specific security and access control needs.

Ideal Applications of the Slimline Magnetic Door Lock With Built-In Exit Button & Timer:

  • Office Buildings: Secure office entrances and restricted areas.
  • Retail Stores: Control access to employee areas and stockrooms.
  • Apartment Buildings: Enhance security for common areas and individual apartments.
  • Hospitals and Healthcare Facilities: Restrict access to sensitive areas.
  • Schools and Universities: Control access to classrooms and restricted zones.

Overall, the DHM600 Slimline Magnetic Door Lock With Built-In Exit Button & Timer is a reliable, secure, and versatile access control solution. It is perfect for a variety of applications and is easy to install and operate.

See All Maglocks

Product Specifications

Weight 3000 g
Dimensions 300 × 92 × 58 mm


Form Factor

Mini Maglock



Holding Force

600 Lbs, 280 Kg



Power Requirement

12VDC, 24 VDC

Lock Options




Manufacturer's Datasheet

313.84 KB
