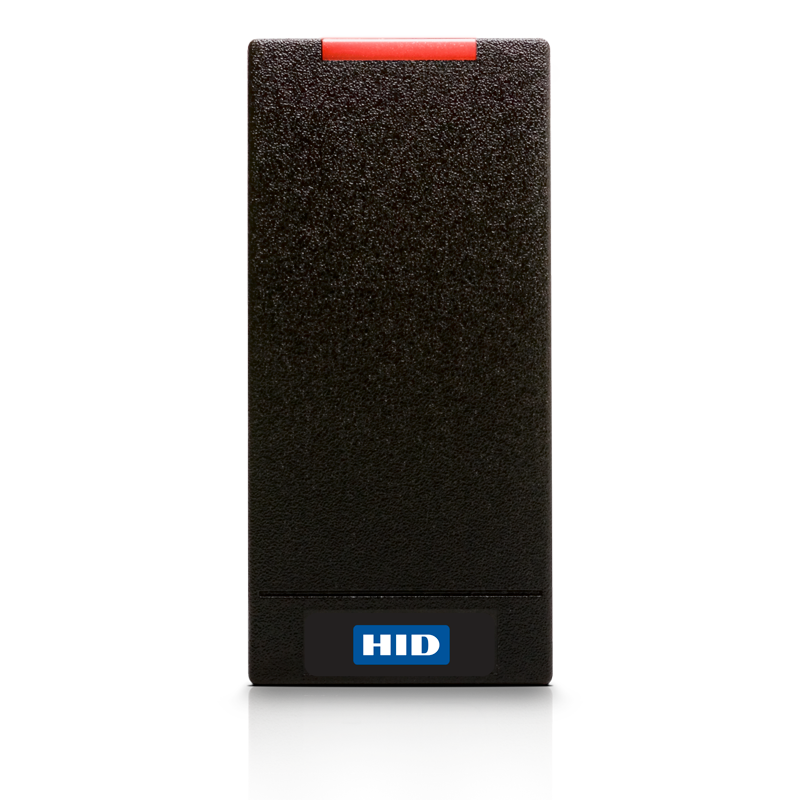

HID iCLASS SE R10 Reader – Base Part Number 900NT

The HID iCLASS SE R10 reader is the smallest reader in the iCLASS family and is the optimum choice for mullion-mounted door installations

  • Colour: black
  • Termination: Available with 457mm (18″) pigtail or terminal-strip (please select when placing your order)
  • Dimensions: 48.3mm x 102.6mm x 20.3mm (1.90″ x 4.04″ x .80″)
  • 5-16 VDC operating voltage (HID recommend a linear power supply)
  • Enclosure Protection Rating: IP55

Product Specifications

Weight 113 g
Dimensions 103 × 48 × 23 mm
Connection type

Pigtail / cable connection, Terminal connection

Output Protocol

Wiegand

Brand

HID

Annunciation

Green LED, Red LED, Sounder

Colours

Black

Construction

Polycarbonate

Frequency

13.56 MHz

Mounting

Surface Mount

Operating Temperature

-35°C to 66°C

Power Requirement

200 mA, 5-16 VDC

Protection Rating

IP55

Technology

iCLASS

SKU 900NTNTEK00000, 900NTNNEK00000
