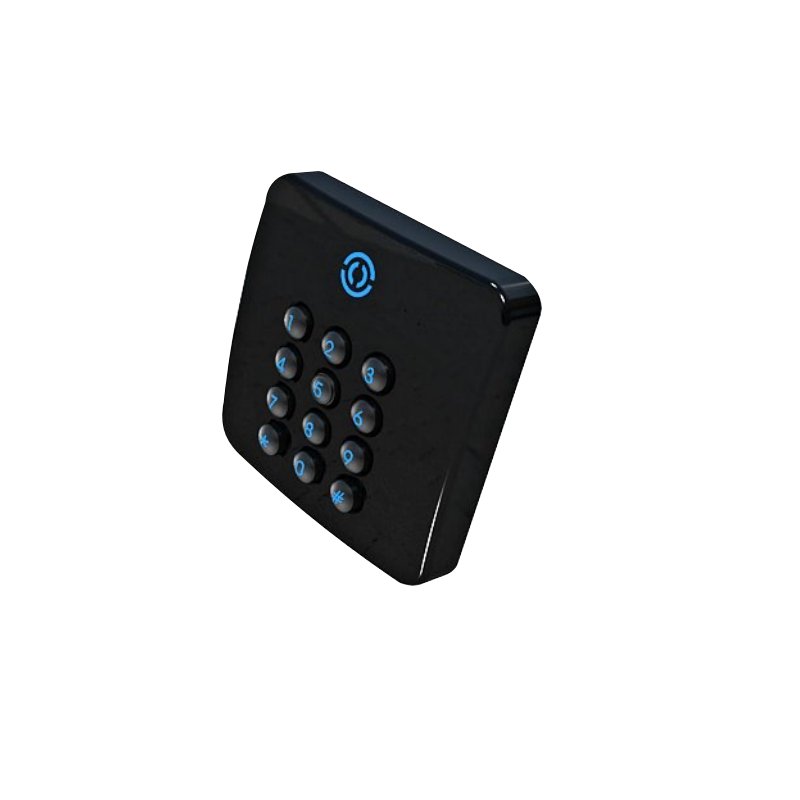

Third Millennium RX1K Keypad Reader, Black

With a similar footprint to the RX1, Third Millennium’s RX1K is designed to fit directly to a UK or EU electrical back box. It also features an RGB illuminated keypad,  offering the additional security of PIN entry. The RX1K supports a wide variety of output formats, allowing it to be used in most access control systems.

The combination of an integral speaker, RGB LED and audible buzzer provides a flexible platform to give the right user interface configuration for your project.

The RX1K is available in two versions: RX1K80PLUS (MIFARE Sector + 125KHz Proximity) and the RX1K82 (MIFARE CSN).  Please select your choice when placing your order.

Product Specifications

Dimensions 87 × 87 × 21 mm
Brand

Third Millennium

Variations

RX1K80PLUS, RX1K82

Construction

Polycarbonate

Mounting

Surface Mount

Operating Temperature

-35°C to 66°C

Protection Rating

IK10, IP67

Connection type

Terminal connection

Keypad

Backlit, Integral 4-Bit Burst Keypad

Frequency

125 KHz, 13.56 MHz

Technology

MIFARE Classic, Proximity

Output Protocol

Wiegand

SKU RX1K80PLUS, RX1K82

Downloads

Manufacturer's Datasheet

166.8 KB

Download
