Intratone 06-0230 – Slim Proximity Reader Kit with 10-Years Free Data

The Intratone 06-0230 is an “all-in-one” access control kit designed for simplicity and efficiency, featuring a slim proximity reader ideal for narrow door frames. This comprehensive package includes everything needed for a complete, remotely managed access solution, including an impressive 10 years of unlimited data synchronization.

Key Features of the Intratone 06-0230:

  • Slim Proximity Reader (04-0113): Its compact design makes it suitable for installation on narrow door frames and posts.
  • GPRS Data Module with 10 Years Unlimited Data: Provides continuous, free data synchronization for remote management and updates, eliminating ongoing data costs.
  • Relay Card (12-0110): Expands control to up to 3 additional peripheral devices from the single-door central unit, offering a cost-effective solution for multi-door management.
  • Mifare Compatibility: Works with Mifare proximity fobs and cards for secure access.
  • Online Real-Time Management: Access and manage the system remotely via a web browser (www.intratone.info), allowing for programming, user changes, and updates without site visits.
  • Plug-and-Play Installation: Designed for quick and easy setup with no complex wiring or hidden costs.
  • Time-Stamped Events: Logs access events for detailed record-keeping.
  • Free Access Time Slots: Allows for programmed access schedules.
  • Technical Alerts: Can send alerts for system events (e.g., relay card’s GSM-only alert).

Full Description

All-in-One Slim Proximity Reader Kit for Easy Access Control

The Intratone 06-0230 is a complete, all-in-one access control solution featuring a slim proximity reader, a central unit, and a GPRS data module with an incredible 10 years of unlimited free data. The Intratone 06-0230 plug-and-play kit offers real-time remote management, making it an efficient and future-proof choice for securing a single door, particularly suitable for narrow door frames.

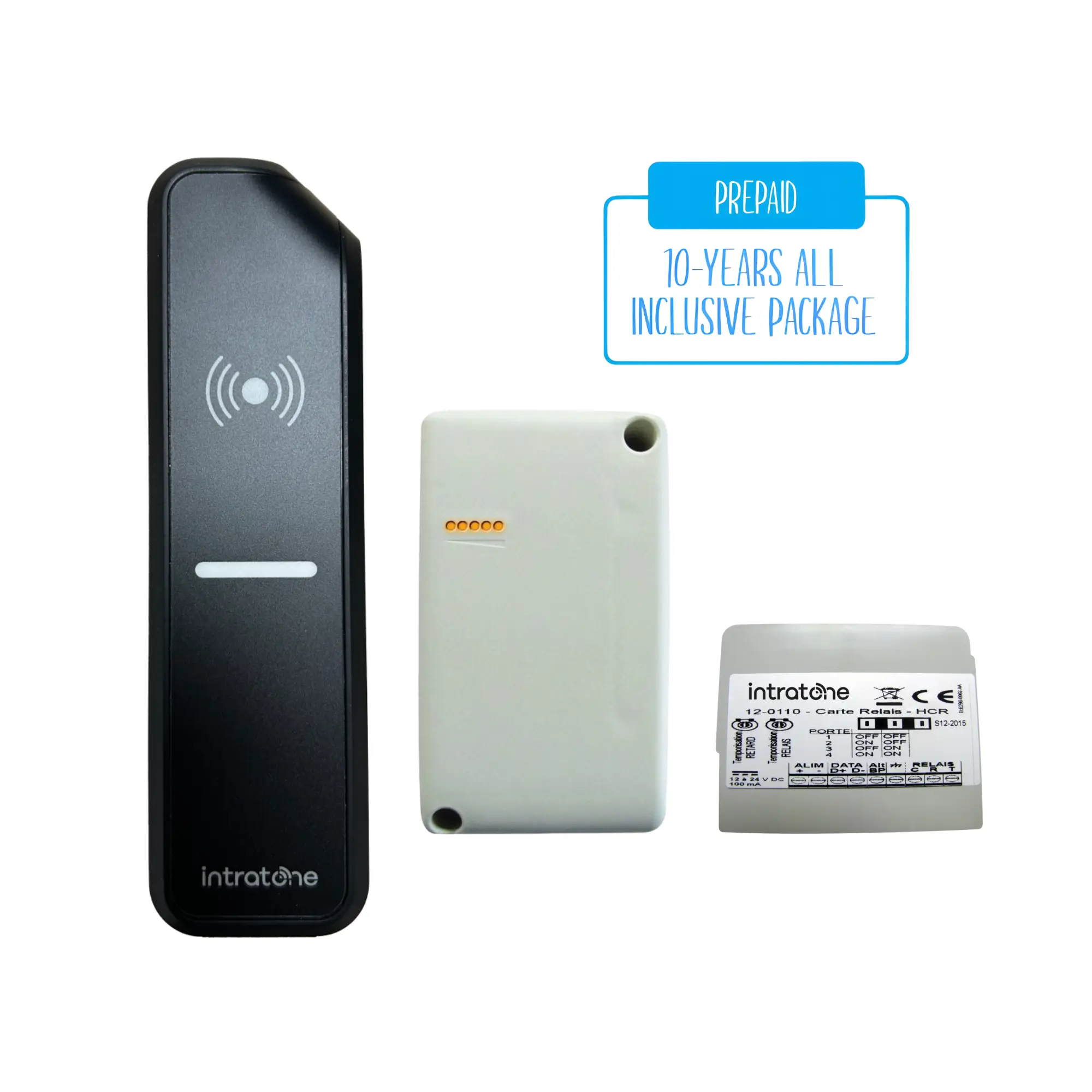

Intratone 06-0230 Kit Includes:

The Intratone 06-0230 is a full kit comprising of everything needed for a simple set-up.

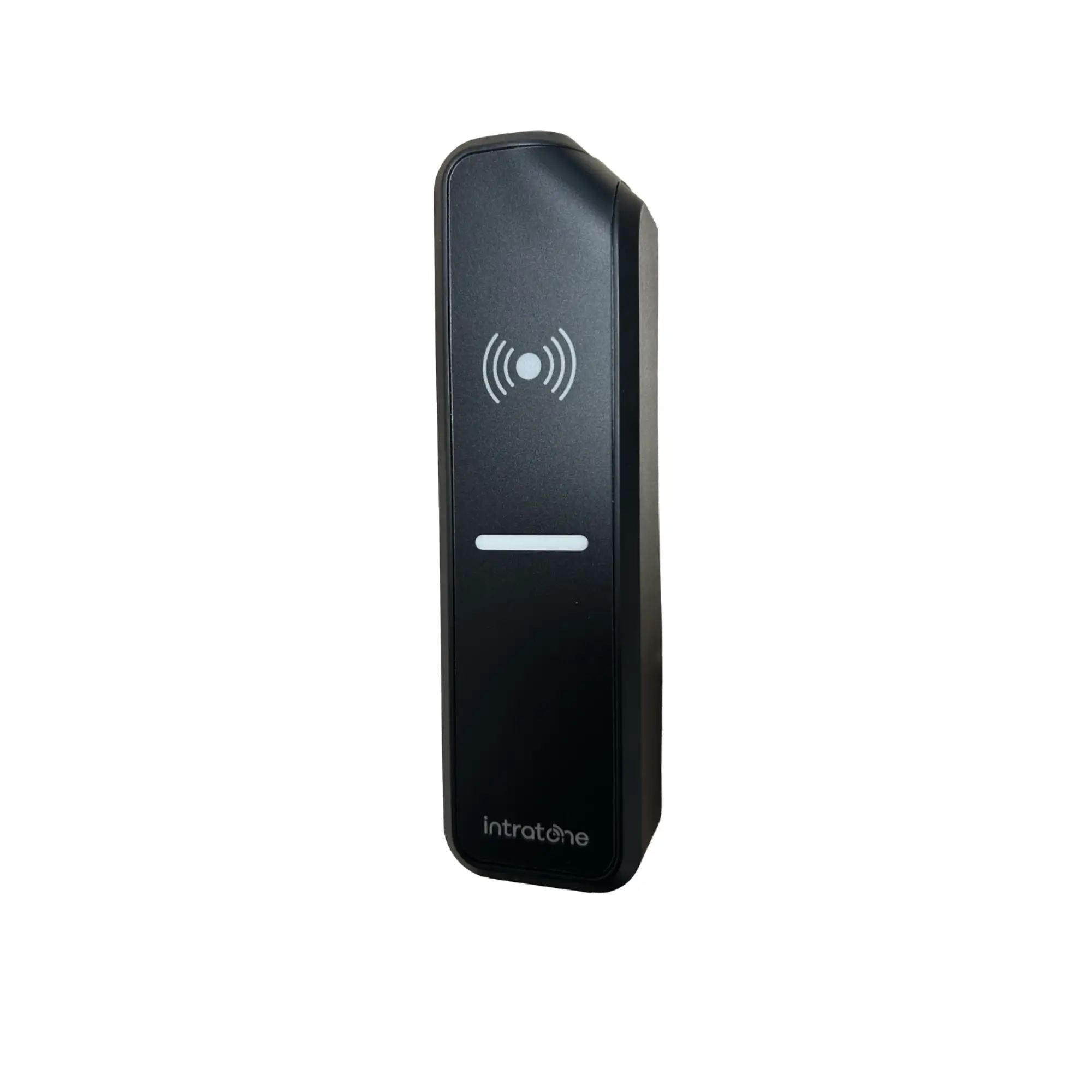

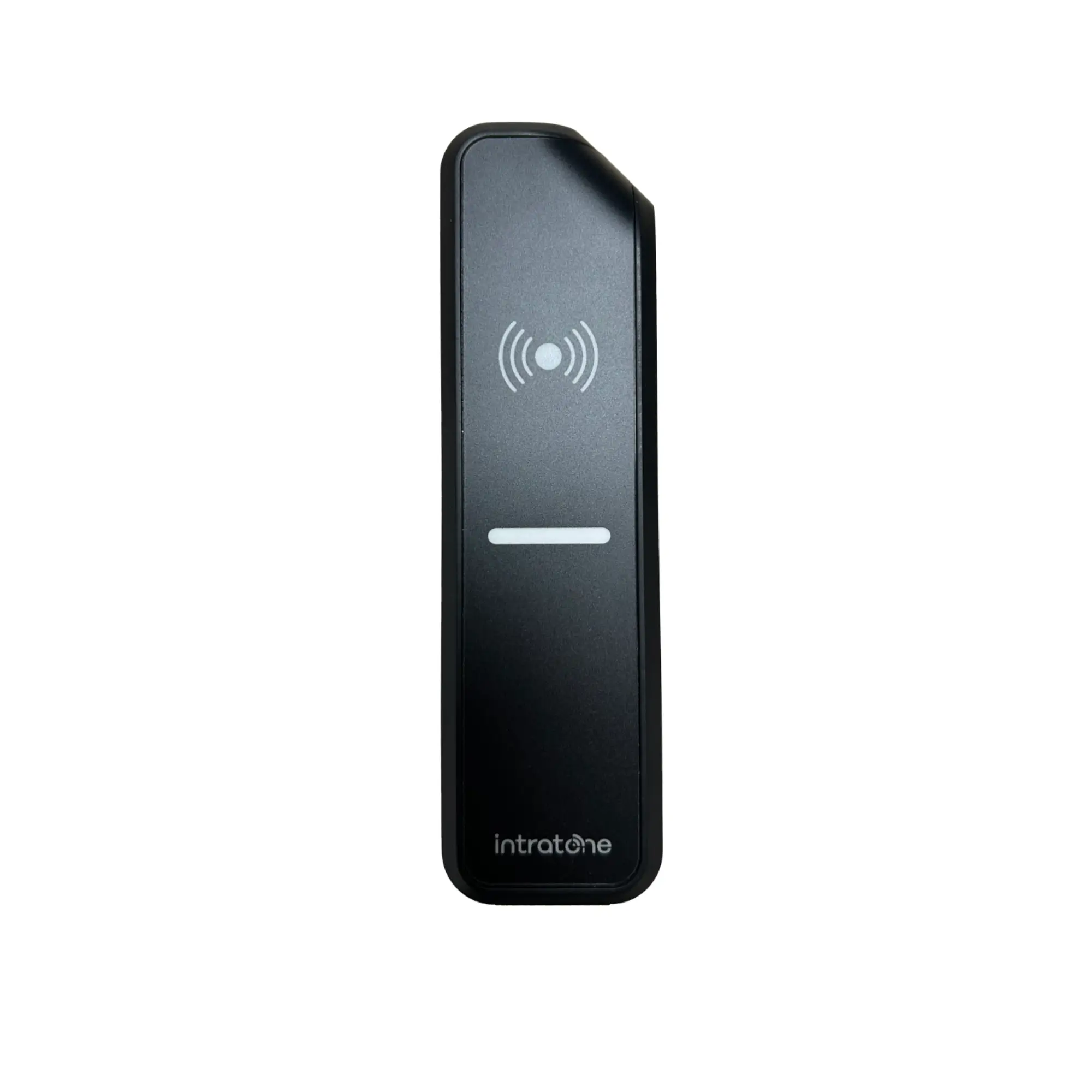

  • 1 x Slim Proximity Reader (04-0113):
    • Designed for narrow door frames (slimline).
    • Operating voltage: 12 – 24Vdc max.
    • Operating temperature range: -20 to +60°C.
    • IP54 operating environment protection.
    • Radio frequency characteristics: 119 kHz – 135 kHz and 13.553 MHz – 13.567 MHz.
    • Mifare compatibility.

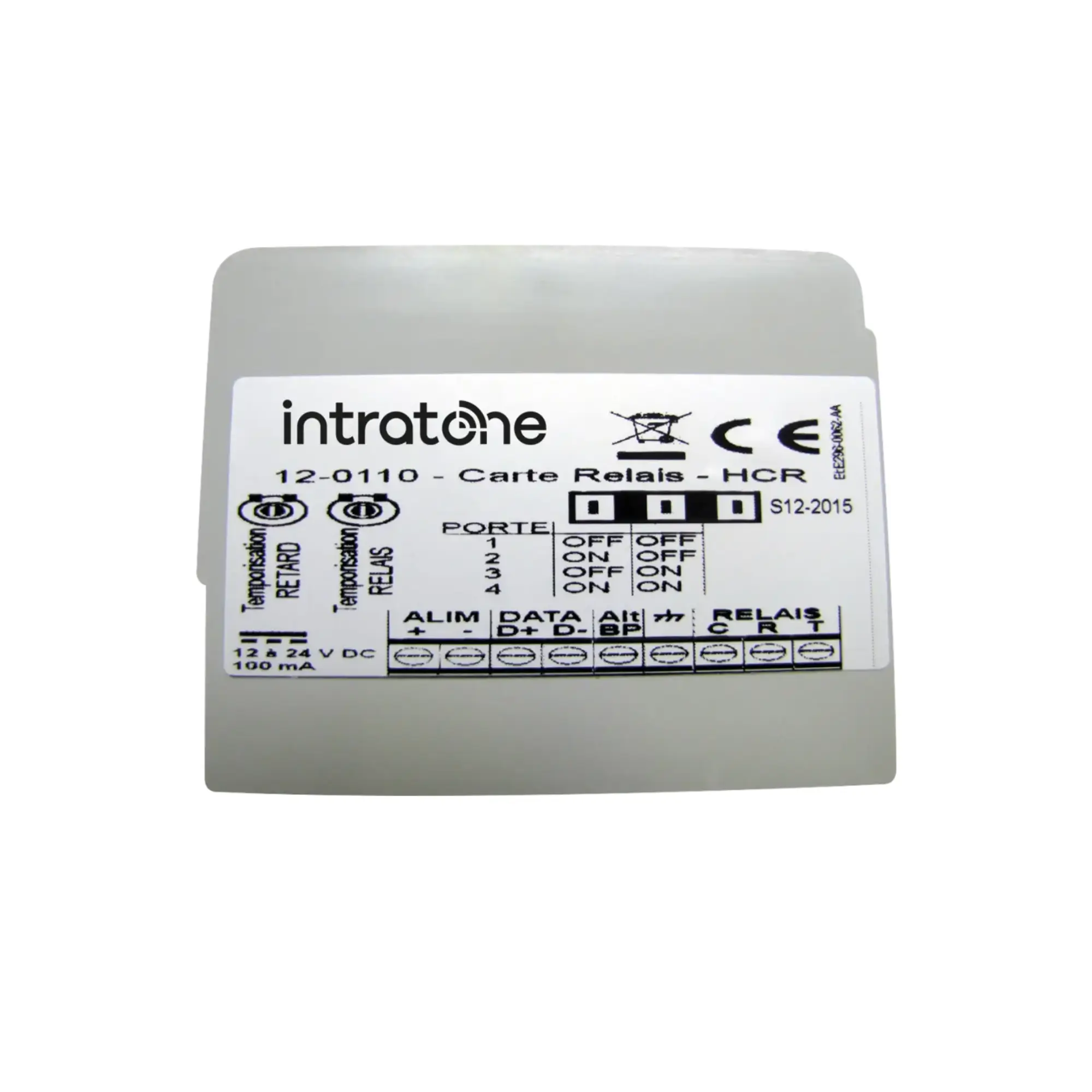

  • 1 x Relay Card (12-0110):
    • Opens up to 3 additional peripheral devices from the central unit.
    • Provides 1 additional alarm input.
    • Power supply: 12 to 24 V DC / 50 mA.
    • Cabling: 4 wires (2 twisted pairs) – Max. distance: 300m.
    • Size (L x H x D): 74 mm x 59 mm x 18 mm.
    • Protection class IP40.
    • Adjustable time delay (0 to 60 sec.) and opening delay (0.2 to 60 sec.).
    • Supports technical alerts (GSM only).

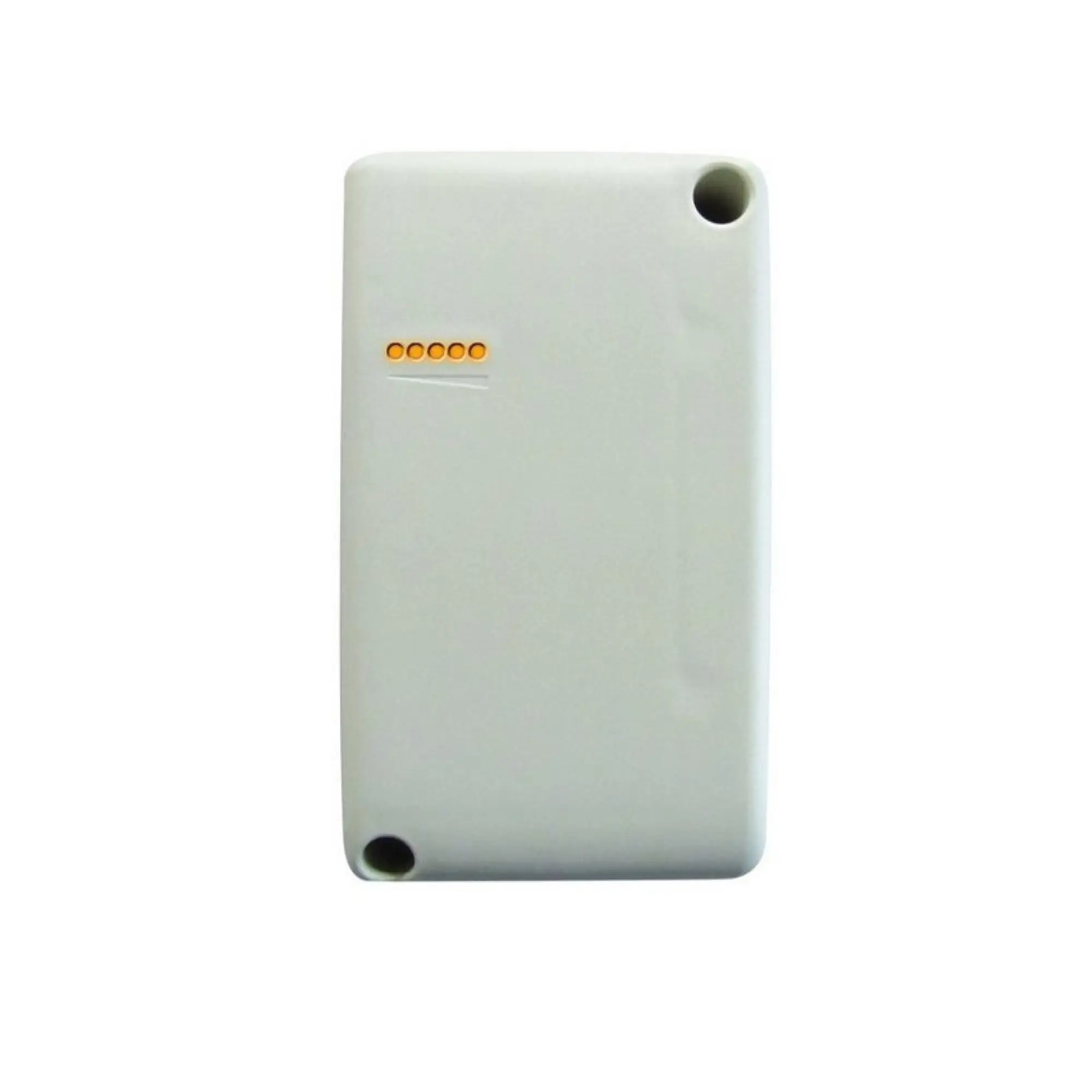

  • 1 x GPRS Data Module with Unlimited Data for 10 Years:
    • Provides remote management and updates.
    • Guarantees continuous connectivity for a decade without extra cost.

Key Features & Benefits:

  • 10 Years FREE Unlimited Data: The Intratone 06-0230 has unmatched value with no recurring data costs for a decade.
  • Real-Time Online Management: Add, change, or remove user access remotely via the web portal, eliminating the need for site visits.
  • Plug-and-Play Installation: Simplified setup for fast and efficient deployment.
  • Slimline Design: Ideal for installations on narrow door frames and discreet placement.
  • Multiple Access Methods: Compatible with proximity cards and potentially other access methods via the central unit.
  • Mifare Compatibility: Integrates with commonly used Mifare credentials.
  • Enhanced Security: Time-stamped events provide a clear audit trail.
  • Flexible Access Control: Supports free access time slots for scheduled open periods.
  • Expandable Control: Relay card allows for controlling additional peripheral devices.
  • Durable Construction: Components designed for long-lasting, efficient use with IP54 protection for the reader.

Ideal Applications of Intratone’s Slim Proximity Reader Kit:

  • Residential buildings (apartments, flats).
  • Commercial offices and small businesses.
  • Gate entry systems.
  • Any single-door access control application requiring remote management and a slimline aesthetic.
  • Installations where long-term, cost-effective data connectivity is crucial.

Product Specifications

Brand

Intratone

Device Type

Reader

Reader and Card Technology

MIFARE

Operating Temperature

-20°C to 60°C

Power Requirement

12-24 VDC

Construction

ABS

Frequency

13.56 MHz

Mounting

Surface Mount, Architrave

Protection Rating

IP54

Kit

Yes

Connection Type

GSM

SKU INT-06-0230

Downloads

Manufacturers Data Sheet

645.63 KB

Download
