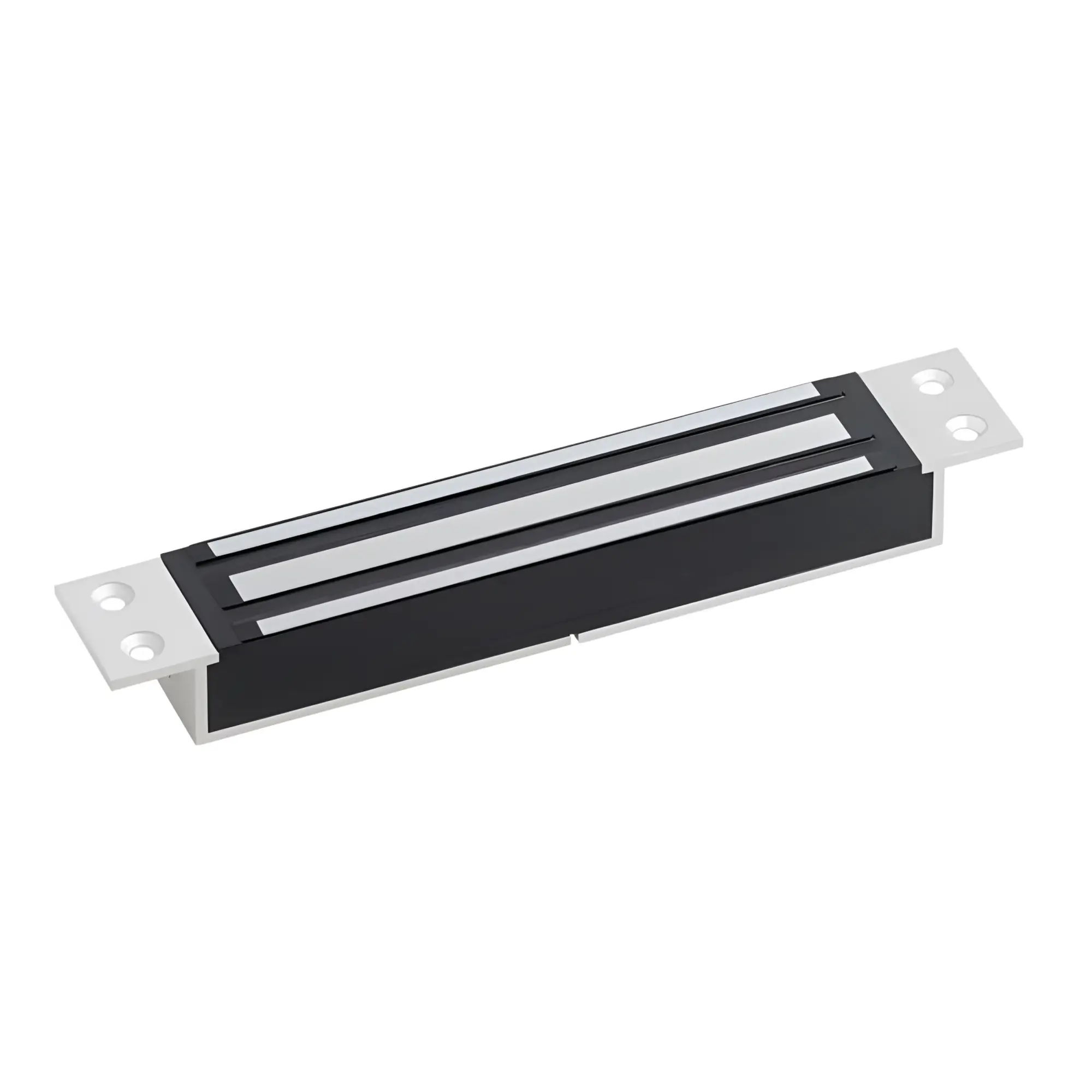

Mini Mortice Maglock With Optional Door Monitoring

The Mini Mortice Maglock offers a powerful and discreet solution for securing sliding doors and gates. This versatile electromagnetic lock provides a strong holding force, a sleek design, and optional door monitoring for enhanced security management. The Mini Mortice Maglock is an ideal choice for various access control applications where reliable security and a clean aesthetic are desired.

Key Features:

  • Miniature Design: Provides a sleek, integrated appearance for a seamless aesthetic.
  • Powerful Holding Force: Delivers up to 275kg (600lbs) of holding force, ensuring reliable door security.
  • Dual Voltage Operation: Selectable for 12VDC or 24VDC operation for compatibility with different power systems.
  • Mortice Fix: Enables a flush finish for a clean, professional look.
  • MOV Protection: Offers surge and spike protection for enhanced electrical safety.
  • Fail-Safe Operation: For safety, the lock automatically releases when power is lost.
  • Anti-Residual Magnetism: Prevents the door from sticking after unlocking.
  • Optional Door Monitoring: (*Monitored Version Only) Provides a contact output for monitoring door status (available in a separate model).

Full Description

A Compact Solution for Secure Sliding Door and Gate Applications

The Mini Mortice Maglock is a versatile and discreet electromagnetic lock designed for sliding door and gate applications. This compact solution offers a strong holding force, making it ideal for securing various entry points.

Key Features:

  • Miniature Design: Our Mini Mortice Maglock With Optional Door Monitoring provides a sleek, integrated appearance for a seamless aesthetic.
  • Powerful Holding Force: Delivers up to 275kg (600lbs) of holding force, ensuring reliable door security.
  • Dual Voltage Operation: Selectable for 12VDC or 24VDC operation for compatibility with different power systems.
  • Mortice Fix: Enables a flush finish for a clean, professional look.
  • MOV Protection: Offers surge and spike protection for enhanced electrical safety.
  • Fail-Safe Operation: For safety, the lock automatically releases when power is lost.
  • Anti-Residual Magnetism: Prevents the door from sticking after unlocking.
  • Optional Door Monitoring: (*Monitored Version Only) Provides a contact output for monitoring door status (available in a separate model).

Benefits of the Mini Mortice Maglock:

  • Unobtrusive Design: Maintains the clean aesthetics of your entryway.
  • Reliable Security: Provides a strong holding force for a secure environment.
  • Versatile Application: Suitable for various sliding door and gate applications.
  • Easy Installation: Mortice fix allows for a flush and professional finish.
  • Enhanced Safety: Fail-safe operation ensures a safe exit in case of power loss.
  • Improved System Efficiency: Surge and spike protection safeguards the system.
  • Optional Door Monitoring: (Monitored Version Only) Enables real-time monitoring of door status for enhanced security management (please select the monitored version when ordering).
Ideal Applications:
  • Office Buildings: Secure restricted areas and server rooms.
  • Retail Stores: Control access to back offices and storage areas.
  • Educational Facilities: Enhance security in classrooms and laboratories.
  • Hospitals and Healthcare Facilities: Restrict access to sensitive areas.
  • Leisure and Hospitality Facilities: Secure equipment storage and staff areas.
Technical Specifications:
  • Holding Force: Up to 275kg (600lbs)
  • Current Draw: 500mA @ 12Vdc / 250mA @ 24Vdc
  • Voltage Tolerance: +/- 15%
  • Operating Temperature: -10°C to +55°C
  • Humidity: 0-95% non-condensing
  • Weight: Approximately 2kg
  • (Monitored Version Only) Relay: COM/NO/NC (1A@24Vdc)



See All Maglocks

Product Specifications

Weight 2000 g
Brand

Smart R Distribution

Lock Options

Monitored, Unmonitored

Colours

Alloy

Connection Type

Pigtail / cable connection

Construction

Aluminium Alloy

Holding Force

600 Lbs

Mounting

Flush Mount

Power Requirement

12-24 VDC

Operating Temperature

-10°C to 55°C

Safety Features

Fail-Safe

Form Factor

Mortice Maglock

SKU SR1-MAG-600MORT, SR1-MAG-600MORT-M
