Scantronic 80HE Kits – 40-Zone Alarm System Kit with Wired or Wireless Keypad
The Scantronic 80HE Kits offer a complete, Grade 2 intruder alarm solution in a single box, perfectly suited for residential and small-to-medium-sized commercial premises. The core of the system is the highly versatile hybrid (wired and wireless) control panel, which starts with 40 zones and is fully expandable up to 80 zones. The kit provides essential peripherals – PIRs, a door contact, and prox tags, and offers a choice between a traditional wired keypad (KIT-80HE-WKP) or a flexible wireless keypad (KIT-80HE-RKP). With a built-in Ethernet port, the 80HE panel comes ready for immediate, free-of-charge integration with the Eaton SecureConnect™ smart security cloud.
Technical Specifications:
- Control Panel: Scantronic 80HE (formerly i-on40H).
- Max Zones: Up to 80 zones total (starting at 40 inbuilt zones).
- Security Grade: EN50131 Grade 2.
- Connectivity: Built-in Ethernet for IP/Cloud communication (SecureConnect™).
- Keypad Types: Wired (KEY-KPZ) or Wireless (KEY-2R-KPZ). Both include 2 onboard zones and a prox tag reader.
- PIRs (DET-2R-PIR): Wireless, Grade 2 protection, Pet tolerant (up to 25kg), approx. 5-year battery life.
- Communication Protocol: Scantronic Secure Radio (SSR) for secure, bidirectional encrypted wireless communication.

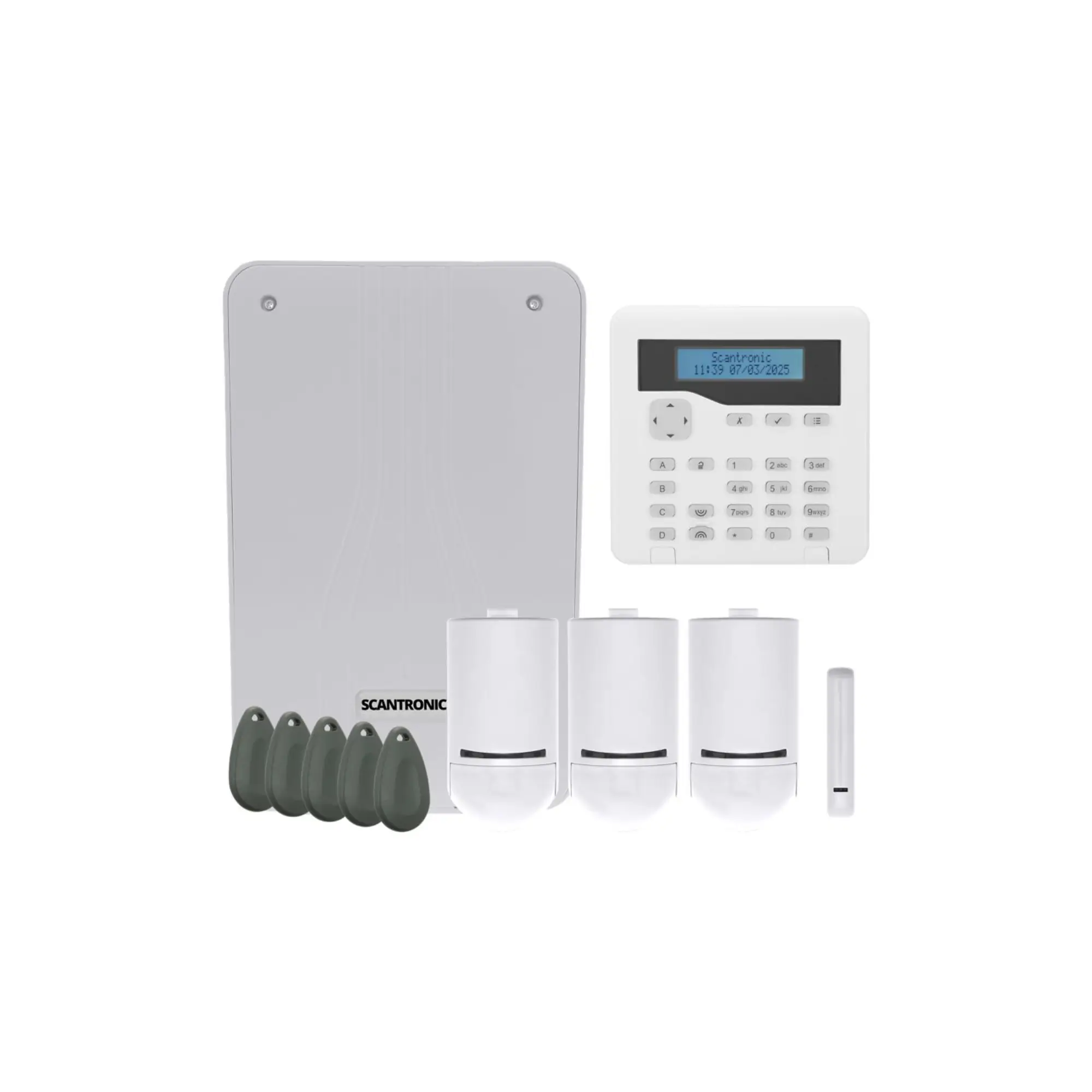

- Kit Contents: 1x 80HE Panel, 1x Keypad (Wired or Wireless Please select when ordering), 3x Wireless PIRs, 1x Wireless Door Contact, 5x Proximity Tags.
Full Description
Smart Hybrid Alarm System Kits
The Scantronic 80HE Kits (KIT-80HE-RKP and KIT-80HE-WKP) are comprehensive, single-box security alarm solutions manufactured by Eaton Scantronic. These kits are designed for houses and small-to-medium-sized commercial installations. Both kits feature the powerful 80HE hybrid control panel, which comes with 40 zones inbuilt and is fully expandable up to a total of 80 zones using wired and wireless expanders. The system is certified to EN 50131 Security Grade 2.
The control panel features a crucial built-in Ethernet port, enabling quick and easy connection to the free-to-use SecureConnect™ smart security cloud. Each of the Scantronic 80HE Kits is supplied with a set of peripherals, including three pet-tolerant PIRs, a slim-line door contact, and five proximity tags, ensuring everything needed for a complete, flexible installation is provided. The primary difference between the two variations is the type of keypad included: a wireless keypad (KIT-80HE-RKP) or a wired keypad (KIT-80HE-WKP).
Key Features Of The Scantronic 80HE Kits:
- Hybrid Expandable Control Panel: The core of the system is the 80HE panel, which is initially 40 zones but can expand up to 80 zones using both wired and wireless expanders.
- Dual-Option Keypad: Kits come with a choice of either a wired (KIT-80HE-WKP) or wireless (KIT-80HE-RKP) keypad for flexible installation.
- Smart Cloud Connectivity: The 80HE control panel has a built-in Ethernet port for immediate connection to the free-to-use SecureConnect™ smart security cloud.
- High User Capacity: The Scantronic 80HE Kits can support up to 80 users.
- Complete Peripherals Included: Both kits include three pet-tolerant PIR motion detectors (up to 25kg), one discreet door/window contact, and five proximity tags.

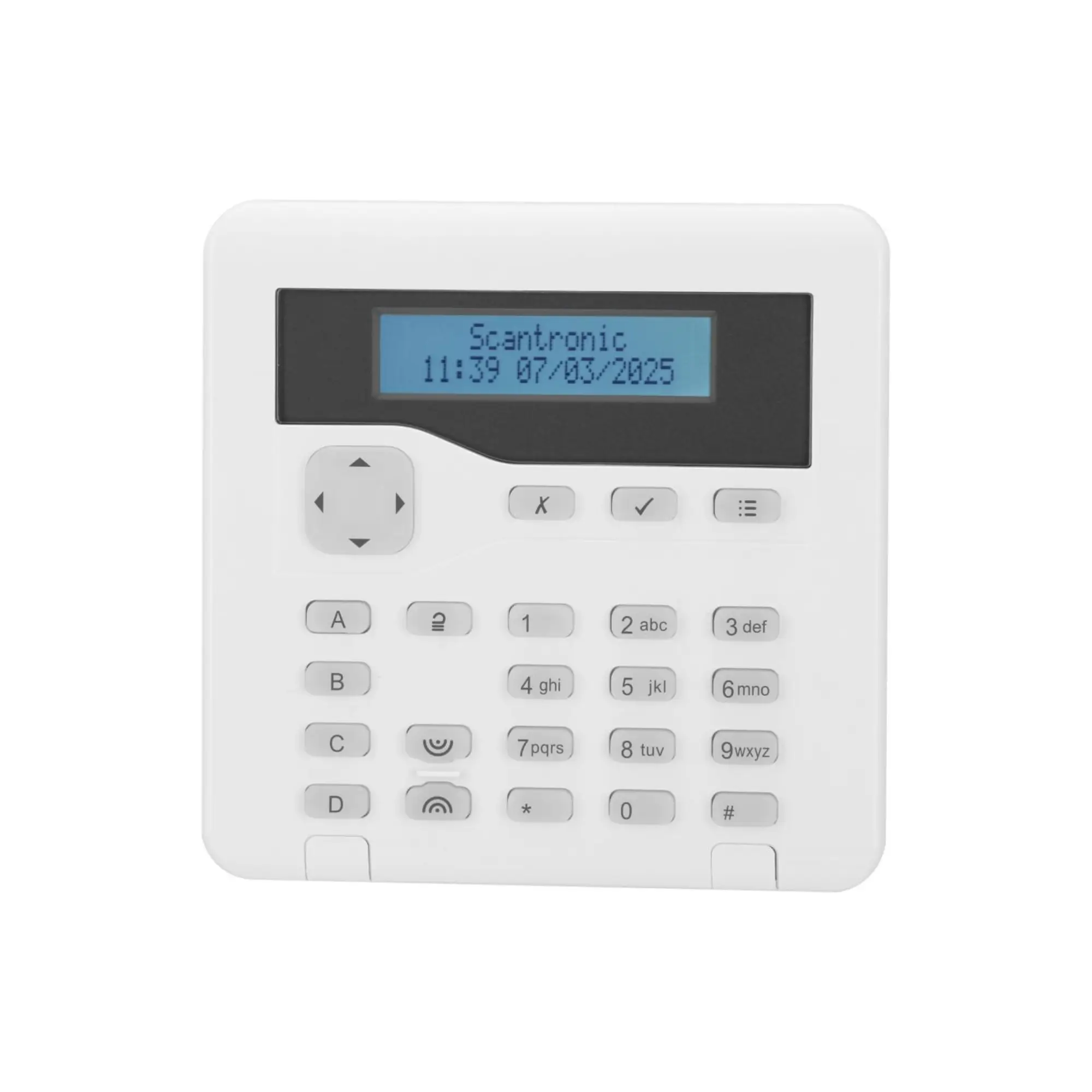

- Dual Zone Keypads: The keypads are small, surface-mounted, and feature two zones and a built-in proximity tag reader.
- Legacy Compatibility: As a hybrid panel, the 80HE is backwards and forwards compatible with Eaton’s full range of radio peripherals for future system expansion.

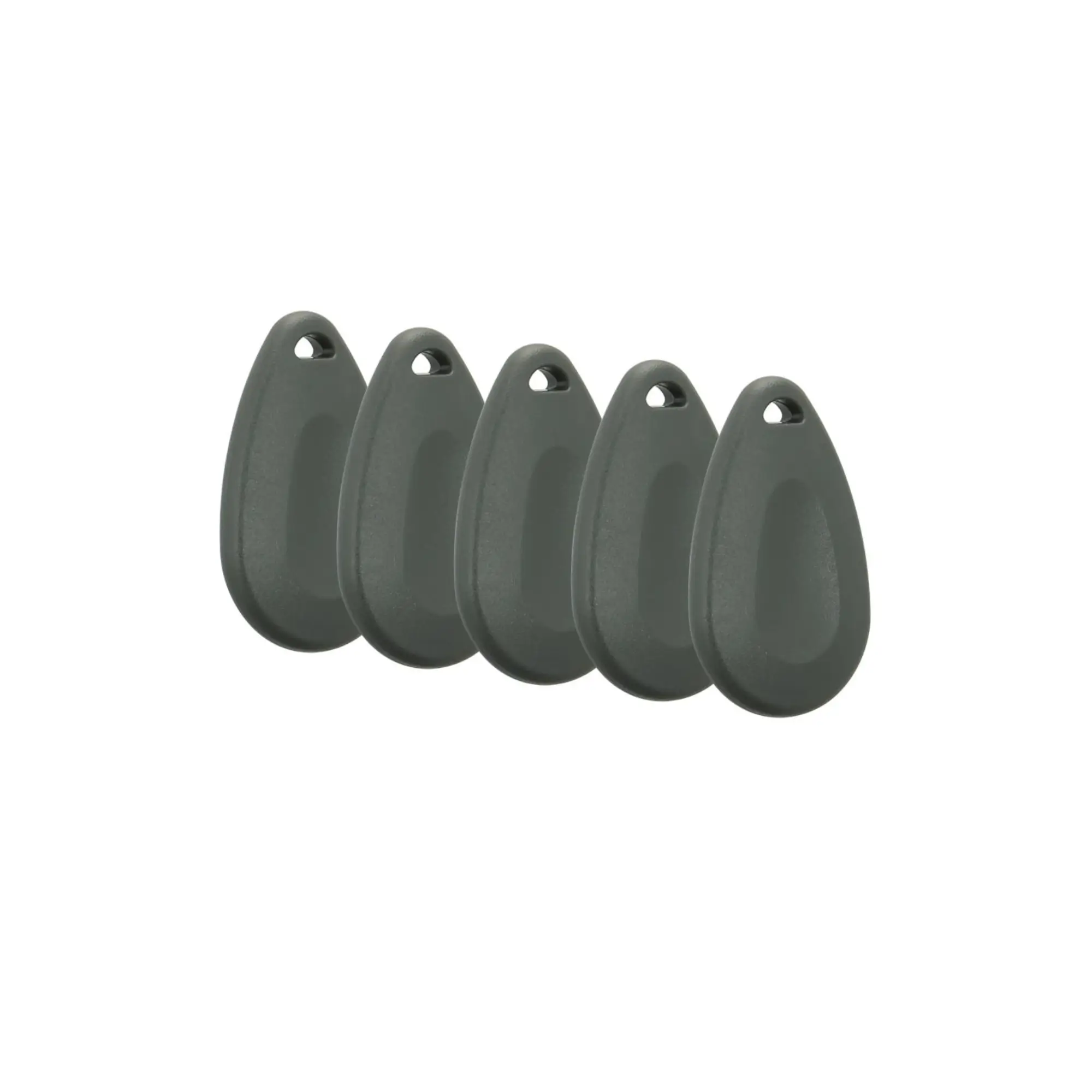

- Access Control Feature: Proximity tags (PROXTAGPK5) allow users to set and unset the system without needing a PIN number.
Technical Specifications:
- System Certification: EN 50131 Security Grade 2.
- Connection Type: Hybrid (Wired and Wireless).
- Total Zone Capacity: 80.
- Out of the Box Zones: 30 Radio zones and 10 Wired zones.
- Maximum Users: 80.
- Maximum Wired Keypads: 20.
- Communications: On-board Ethernet.
- Optional Communications: Plug-on modules for 4G, WiFi, and 4G+WiFi.
- Logging: Stores up to 1000 log events.
- Sounder Capacity (Max): 4 Radio Internal, 4 Radio External, 1 Wired Internal, 1 Wired External.
- Power Supply: 1A.
- Max Back-up Battery Size: 7Ah (requires 1 back-up battery).
- Dimensions (L x H x W): 430 mm x 125 mm x 430 mm.
- KIT-80HE-RKP Data Sheet
- KIT-80HE-WKP Data Sheet
Benefits:
- High Flexibility: Hybrid functionality of the Scantronic 80HE Kits allows for easy expansion using either existing wired infrastructure or future wireless components.
- Simplified Installation: Supplied as a complete kit, providing the control panel, keypad, detectors, and access tags in one box.
- Enhanced User Experience: Proximity tags allow for quick, time-saving setting and un-setting of the system.
- Remote Management: Built-in Ethernet and SecureConnect™ compatibility allow for remote configuration, monitoring, and control via the cloud.
- Reliable Detection: The Scantronic 80HE Kits includes pet-tolerant PIRs, which can reduce false alarms in environments with animals up to 25kg.
- Scalability: The ability to expand to 80 zones and support 80 users ensures the system can grow with the property’s needs.
Ideal Applications:
- Residential Homes: Secure, expandable security for modern family houses.
- Small-to-Medium-Sized Commercial Premises: Flexible and scalable protection for offices, retail units, or small warehouses.
- Existing Wired Systems: Excellent for upgrading an older wired system while adding modern wireless expansion capabilities.
- Installations Requiring Cloud Access: Ideal where remote monitoring and management via a smart security cloud are desired.
- Properties with Pets: The included pet-tolerant PIRs make it suitable for locations with domestic animals.
Product Specifications
| Brand | Eaton, Scantronic |
|---|---|
| Device Type | Alarm System Kit |
| Grading and Compliance | Grade 2 |
| Connection Type | Wired, Wireless |
| Operating Temperature | -10°C to 55°C |
| Kit | Yes |
| SKU | EAT-KIT-80HE-WKP, EAT-KIT-80HE-RKP |
