Scantronic DET-2R-DC Series: Wireless 2-Way Slimline Door Contact in 3 Colours – Grade 2

Full Description

Two-Way Wireless Door/Window Contact with Encrypted Communication and Long Battery Life

The Scantronic DET-2R-DC series offers advanced wireless 2-way slimline door contacts designed for perimeter protection in Scantronic Secure Radio (SSR) intruder alarm systems. Available in a choice of white (DET-2R-DC-W), brown (DET-2R-DC-B), and grey (DET-2R-DC-G), these discreet detectors blend seamlessly into any environment while providing reliable detection of door or window openings. Featuring advanced two-way communication and true signal encryption, they ensure market-leading cybersecurity, extended battery life, and rapid event notification for Grade 2 security.

Key Features Of The Scantronic DET-2R-DC Series:

• Slimline Design & Three Colour Options: With a compact and unobtrusive housing available in white, brown, and grey, these detectors blend seamlessly with various decors and door/window frames.
• Perimeter Protection: Utilises a magnet to reliably detect the opening and closing of doors and windows, alerting system users to potential intrusions.
• Scantronic Secure Radio (SSR) Technology: Features advanced two-way wireless communication and true signal encryption (AES128), ensuring market-leading cybersecurity and robust system integrity.
• Over-the-Air Updates: Supports remote firmware updates, keeping devices future-proof and reducing the need for costly onsite labor.
• Extended Battery Life: Shortened device response times and SSR transmission acknowledgement functionality optimise power consumption, providing a typical battery life of up to 3 years (using a 3Vdc CR2 Lithium battery).
• Rapid Event Notification: Ensures quick and efficient transmission of alerts to the control panel, reducing false alarms and enabling prompt response.
• Grade 2 Security: Certified to EN 50131-2-6 and compliant with PD 6662:2017, meeting high standards for intrusion detection systems.
• Wide Radio Range: Offers an impressive radio range of up to 600m in free space (or 700m depending on listed spec), ensuring reliable communication even across large properties.
• Low Battery Warning: Provides a warning when battery voltage drops to 2.4Vdc, allowing for timely replacement.
• Tamper Protection: Includes mechanisms to detect attempts to open or remove the device, enhancing security.
• Environmental Class II / IP40: Suitable for indoor use, protected against solid objects larger than 1mm.

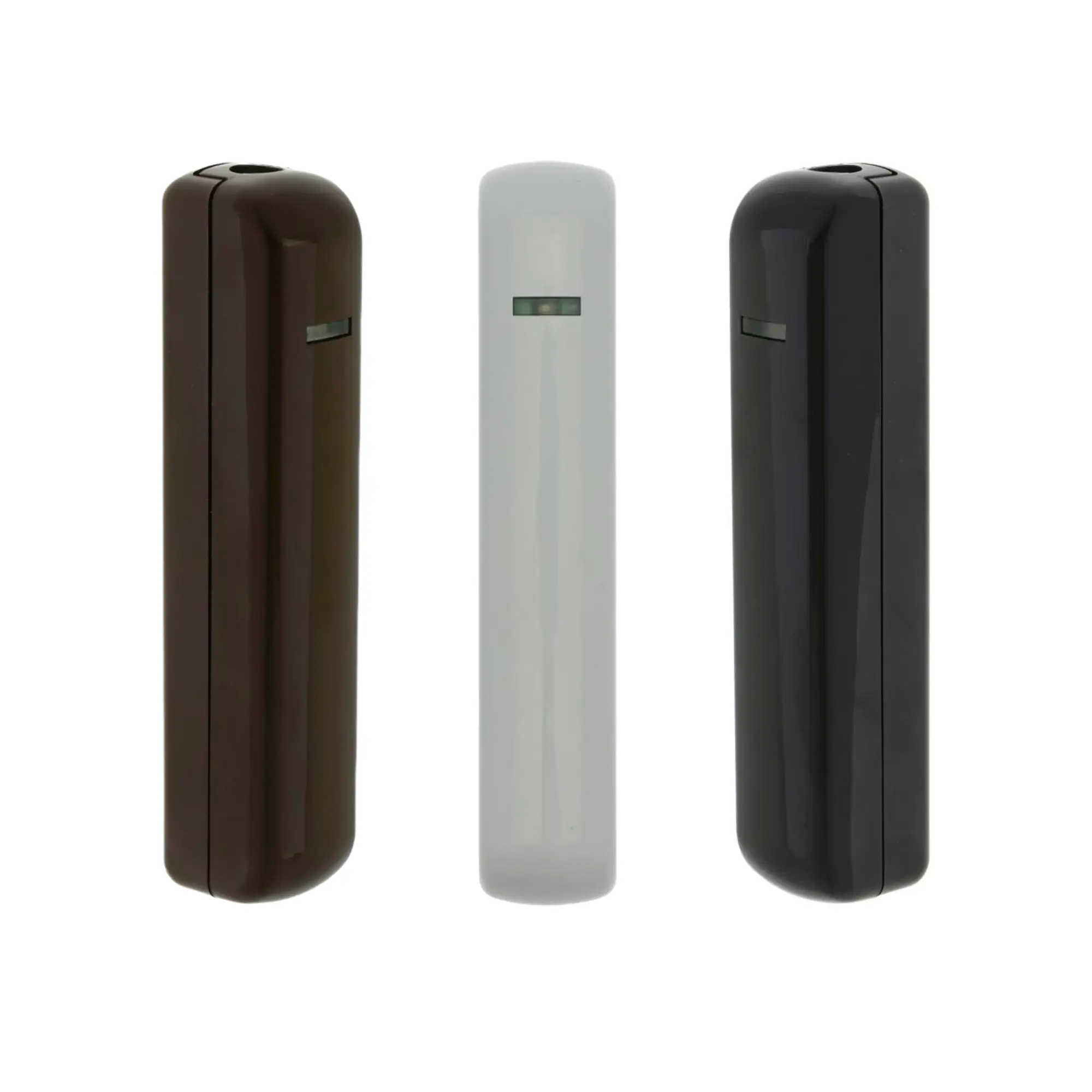

Available in the Following Colours:

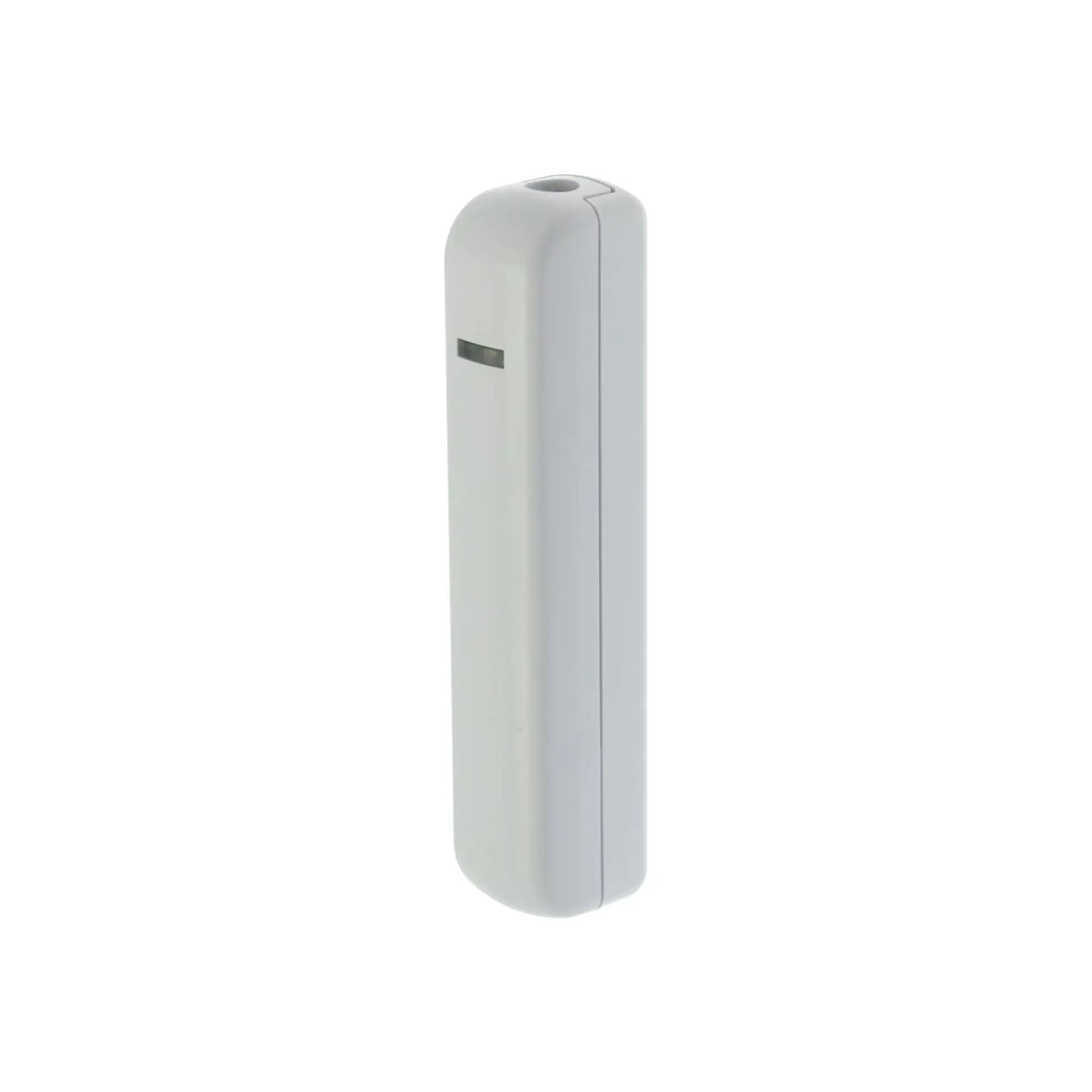

• DET-2R-DC-W: White Slimline Door Contact

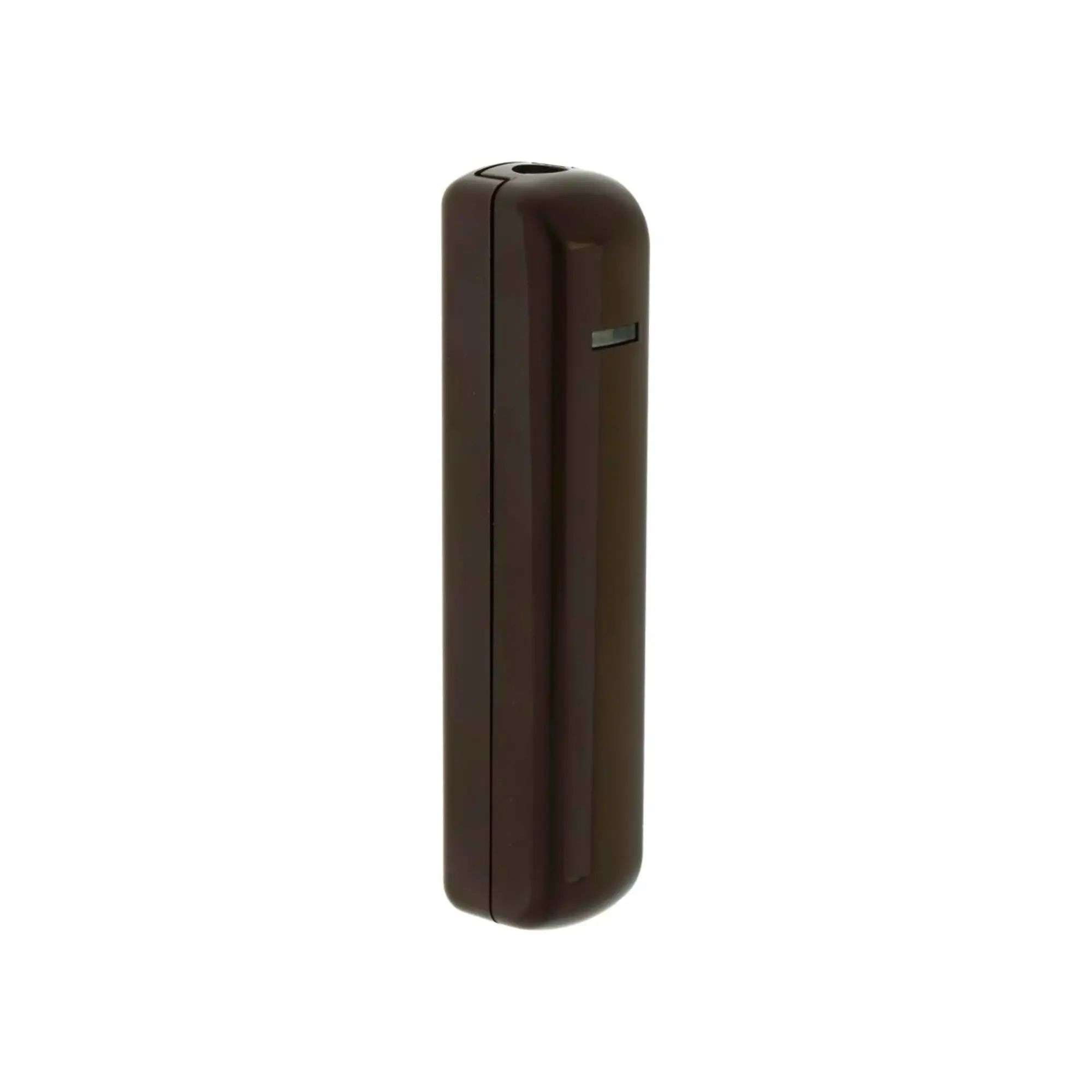

• DET-2R-DC-B: Brown Slimline Door Contact

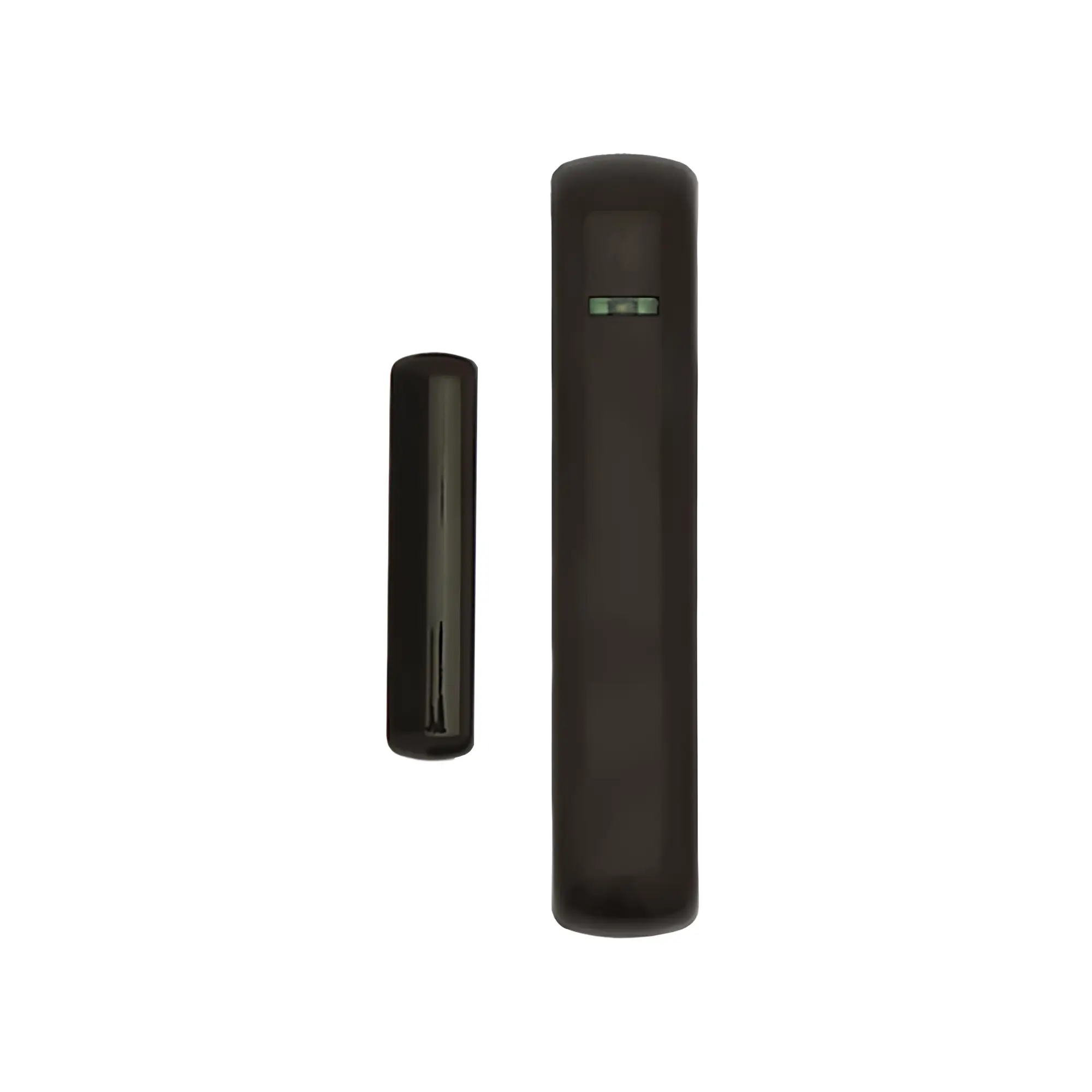

• DET-2R-DC-G: Grey Slimline Door Contact

Technical Specifications:

• Technology Type: Magnetic (Reed Switch)
• Connection: Wireless / Radio (2-Way Communication)
• Channels: 1
• Security Grade: Grade 2
• Intrusion Standards: EN 50131-5-3:2017; PD 6662:2017; Certified to EN50131-2-6
• Environmental Class: Class II / IP40
• Power Supply: 3 VDC (3Vdc CR2 Lithium battery)
• Battery Quantity: 1
• Replacement Battery Code: 1-345346 / 3v CR2
• Typical Battery Life: 3 years
• Current: 3μA quiescent; 35mA max
• Radio Frequency: 868-868.5MHz (SSR mode) | 868.6625MHz (Legacy mode)
• Radio Range (Free Space): Up to 600m (or 700m depending on listed spec)
• Transmission Power: 10 mW
• Operating Temperature: -10°C to +55°C
• Humidity: 0-95%
• Weight: Sensor: 40g (inc. battery) | Magnet: 10g
• Dimensions (L x W x D):
  • Sensor: 103 x 19 x 24mm
  • Magnet: 55 x 12 x 12mm
• Enclosure Material: Plastic
• Mounting Method: Surface
• Indication: Optical
• Detection Type: Distance (Magnetic contact)
• Tamper Protection: Yes
• See Data Sheet

Benefits of Scantronics 2-Way Slimline Door Contact:

• Aesthetic Integration: Slimline design and choice of three colours ensure discreet and seamless blending with property aesthetics.
• Superior Security: Two-way encrypted communication provides robust protection against tampering and cyber threats.
• Long-Lasting Performance: Extended battery life reduces maintenance and ensures continuous protection.
• Reliable Detection: Provides accurate alerts for perimeter breaches on doors and windows.
• Future-Proof: Over-the-air updates keep the system current with the latest features and security enhancements.
• Easy Installation: Wireless design eliminates complex wiring, and compact size allows for versatile placement.

Ideal Applications:

• Residential homes for securing doors and windows.
• Commercial properties, offices, and retail units for perimeter protection.
• Any indoor environment requiring reliable, discreet wireless door/window contact detection.
• Installations demanding Grade 2 compliant security solutions.
• Properties where aesthetic considerations are important alongside robust security.
