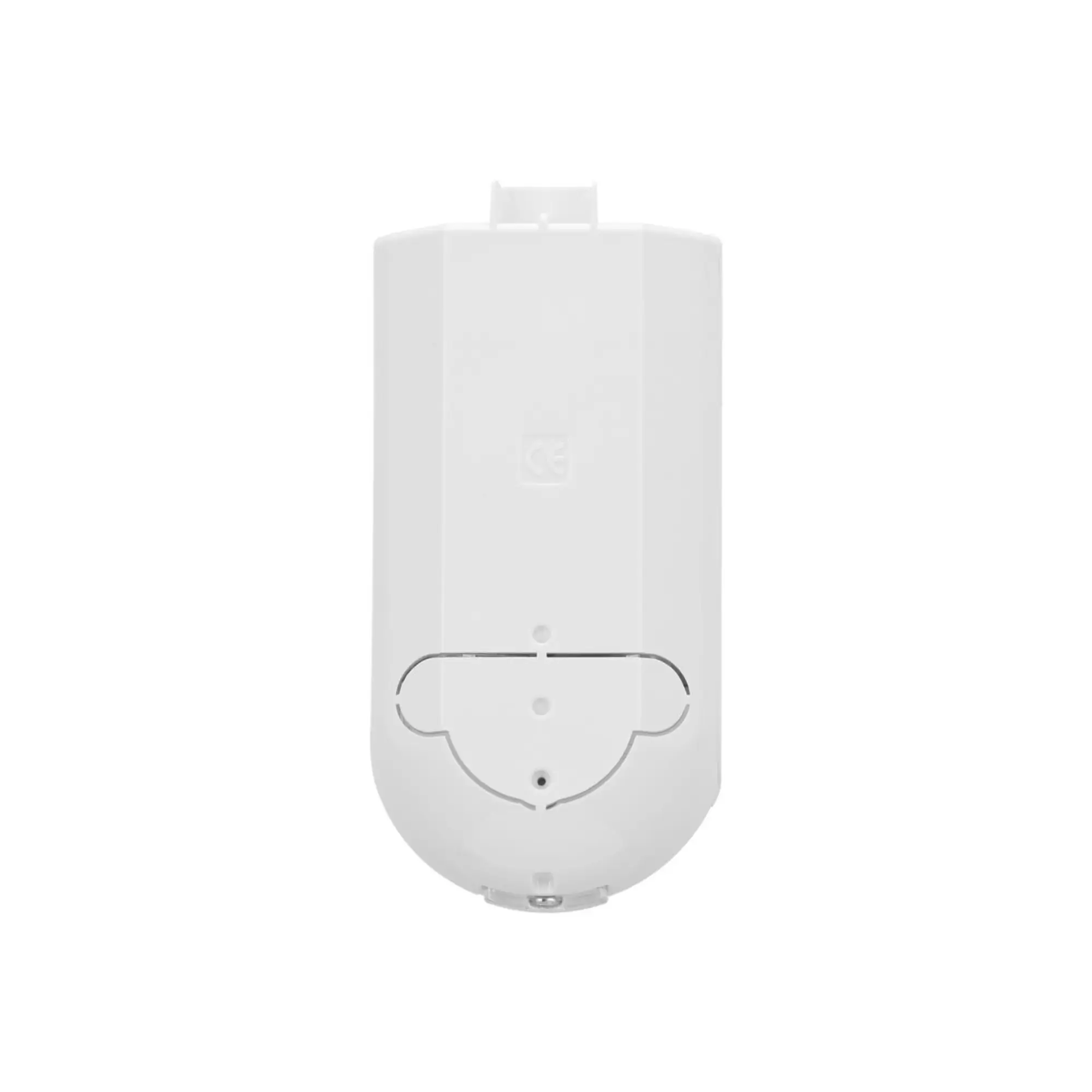

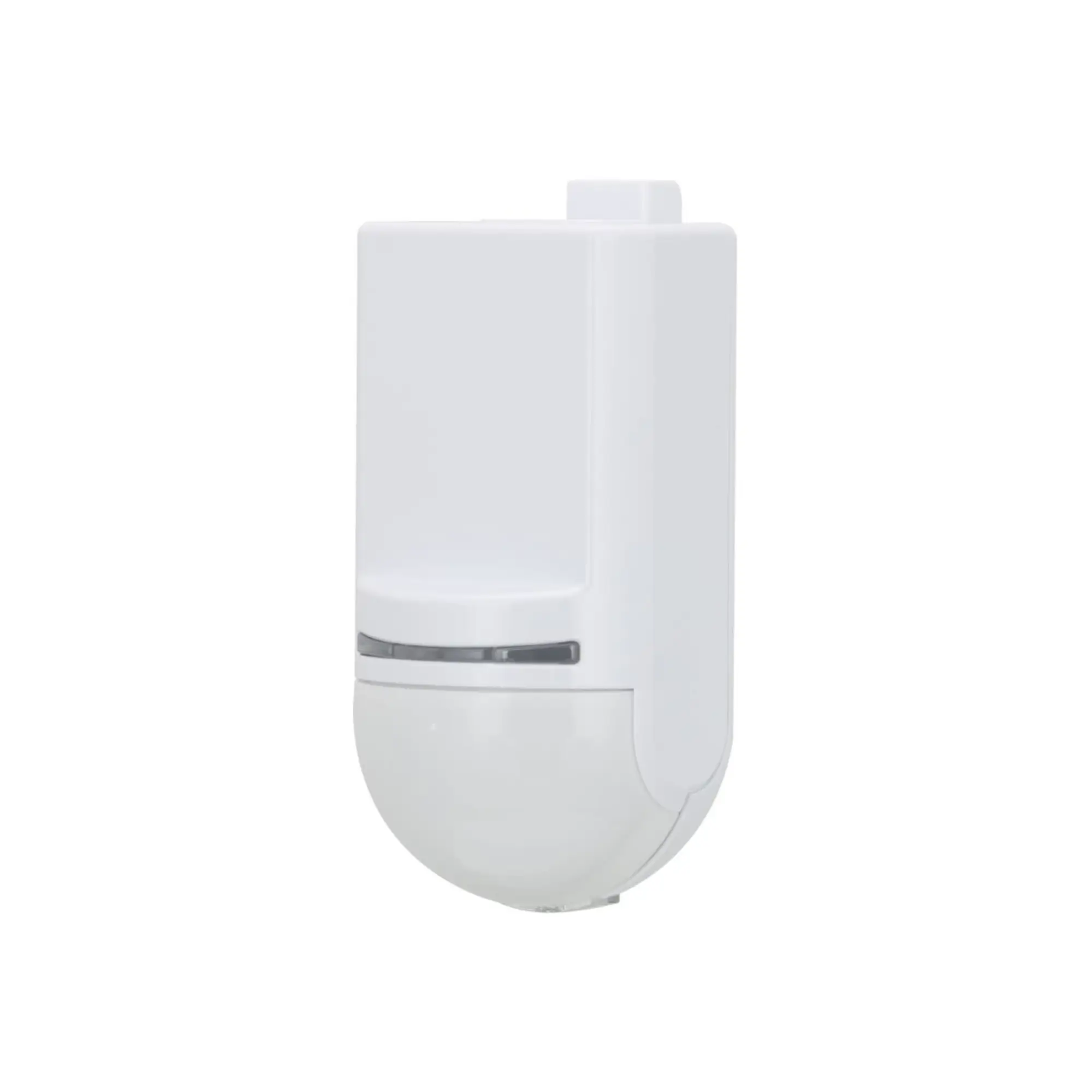

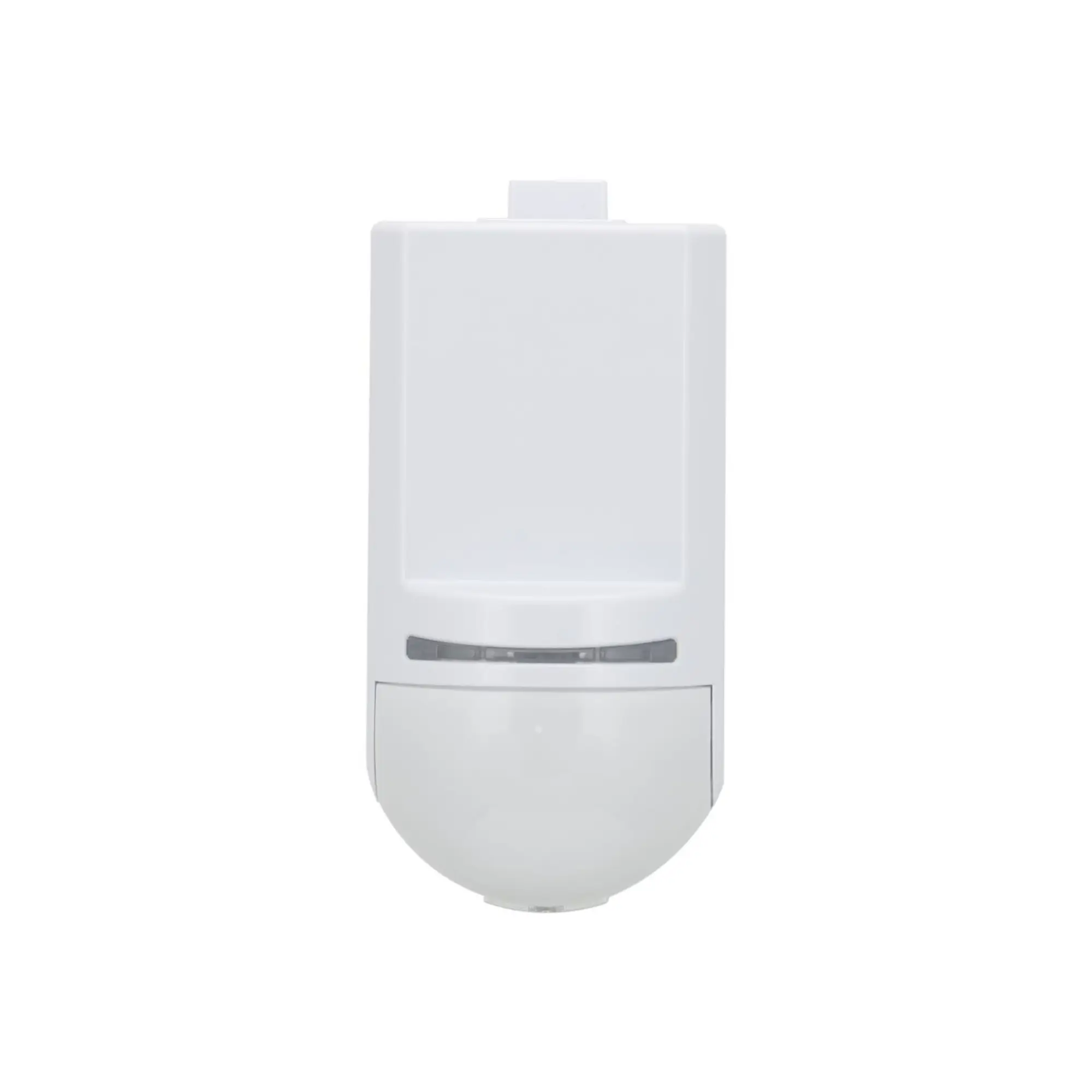

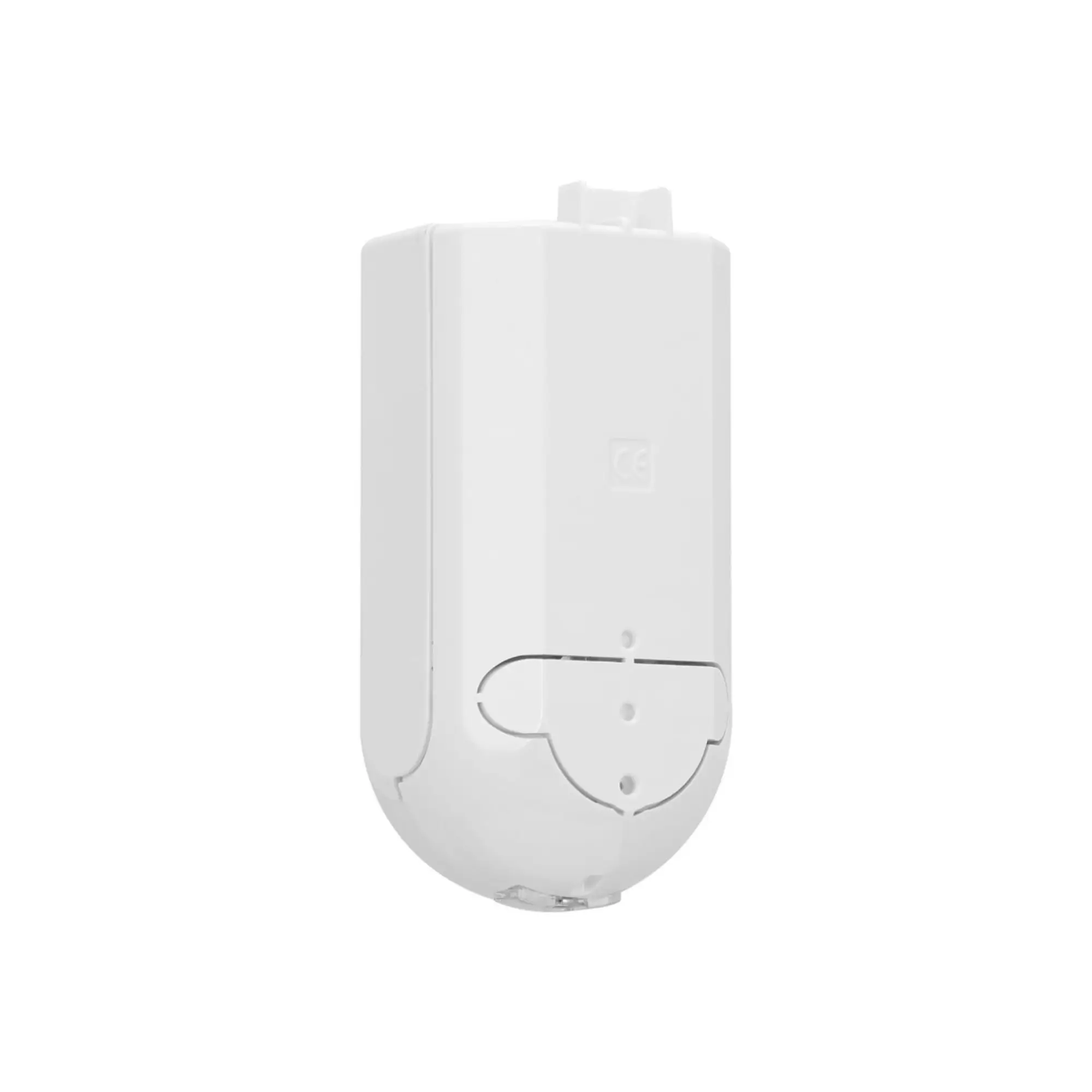

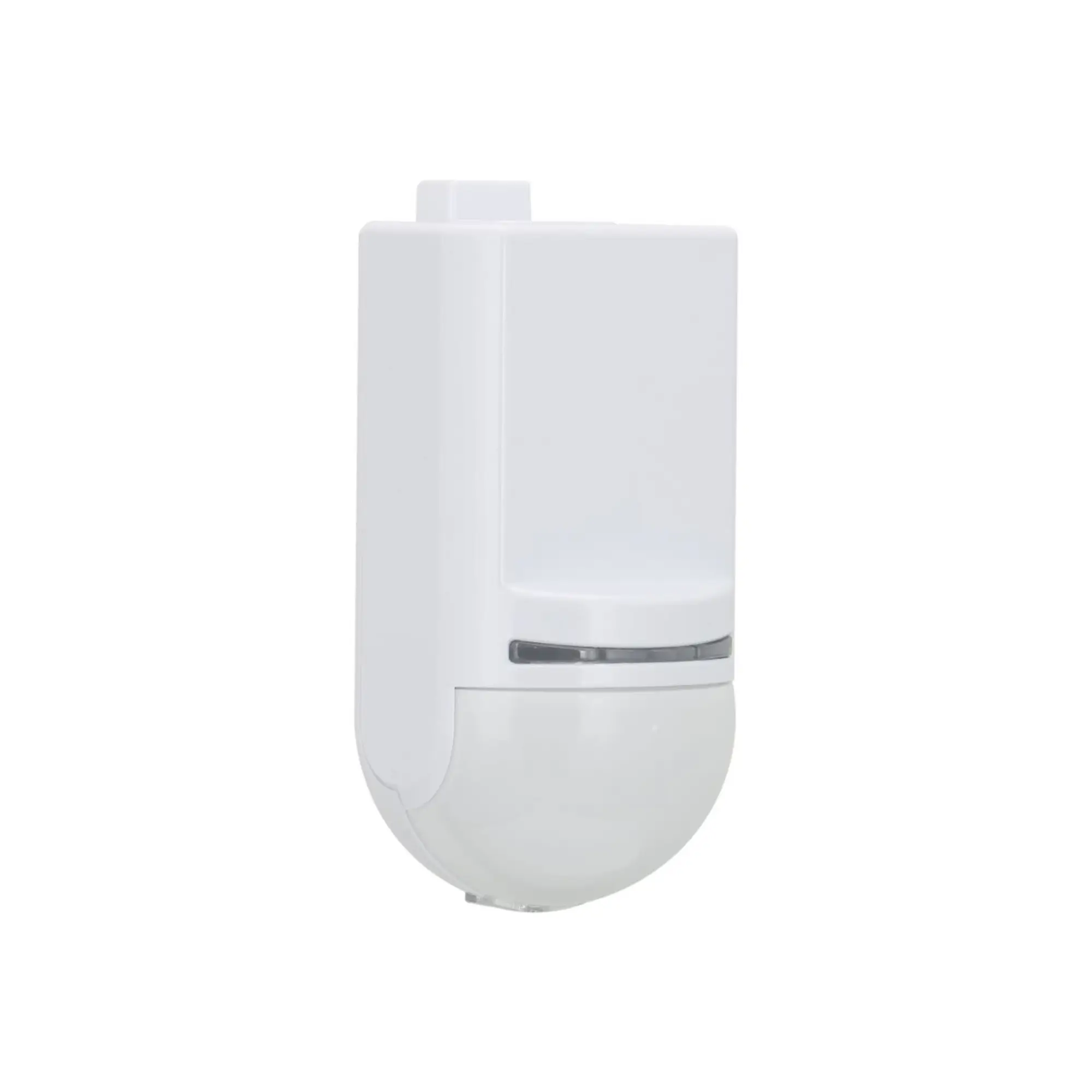

Scantronic DET-2R-DT: 2-Way Wireless Pet Tolerant Dual Tech PIR – Grade 2

Full Description

Advanced Dual Technology Wireless Movement Detector with Pet Tolerance

The Scantronic DET-2R-DT is a high-performance 2-Way Wireless Pet Tolerant PIR (Passive Infrared) detector specifically designed for indoor use within Scantronic Secure Radio (SSR) intruder systems. This Grade 2 certified detector utilises dual technology (PIR and K-band microwave) to provide reliable movement detection while maintaining high immunity to false alarms, even in challenging environments or homes with pets. Its advanced two-way communication and true signal encryption ensure market-leading cybersecurity and future-proof operation.

Key Features of the DET-2R-DT:

• Dual Technology (PIR & K-band Microwave): The Scantronic DET-2R-DT combines passive infrared (detects body heat movement up to 12 meters in a fan-shaped area) with K-band microwave technology. This dual detection ensures greater reliability and reduces false alarms in areas with fluctuating temperatures (warehouses, sheds, garages), direct sunlight (conservatories), or repetitive movements (ceiling fans).
• 2-Way Wireless Communication: Employs Scantronic Secure Radio (SSR) technology for advanced two-way communication, providing robust connectivity, constant supervision, and rapid event notification.
• Pet Tolerant: Designed to ignore the movement of pets, minimizing false alarms in households with animals. Pet tolerance can be wirelessly enabled or disabled, offering flexible security management.
• Grade 2 Certified: Compliant with EN 50131 Grade 2 standards, making it suitable for professional security installations.
• True Signal Encryption (AES128): Ensures market-leading cybersecurity by encrypting all transmissions, protecting against signal interception and manipulation.
• Over-the-Air Updates: Supports remote firmware updates, keeping the device future-proof and reducing the need for onsite labour.
• Optimized Battery Life: Shortened device response times and SSR transmission acknowledgement functionality extend battery life by up to 66%, using standard AA batteries.
• Rapid Event Notification: Ensures quick communication of detection events to the control panel, minimizing response times for actual intrusions.
• Easy Diagnostics: Built-in LED indicators can be remotely activated to quickly identify devices during installation or troubleshooting.
• Flexible Mounting: Can be mounted flat against a wall or in a corner of a room for optimal coverage.
• Tamper Protection: Includes tamper mechanisms to detect and alert against attempts to open or remove the detector.

DET-2R-DT Technical Specifications:

• Catalogue Number: DET-2R-DT
• Technology Type: Infrared/Microwave (Dual Technology)
• Connection: Wireless/Radio
• Detection Type: Combined (confirmed alarm)
• Channels: 1
• EN 50131 Grade: Grade 2
• Environmental Class: Class II / IP40
• Degree of Protection (IP): IP40 (Protected against solid objects >1mm, no protection against liquids)
• Mounting Method: Surface
• Pet Tolerant: Yes (wirelessly configurable)
• Tamper Protection: Yes
• Power Source: Standard AA batteries (not included)
• Optical Indication: Yes (LEDs)
• Colour: White
• Dimensions (H x W x D): 115 mm x 55 mm x 55 mm
• Weight: 0.19 kg
• Compliances: EN
• Certifications: CE marking
• See DET-2R-DT Data Sheet

Benefits Of The Dual-Tech Motion Detector:

• High Reliability: Dual technology mitigates false alarms from environmental factors or pets, ensuring accurate detection.
• Enhanced Security: Two-way encryption provides superior protection against cyber threats and tampering.
• Low Maintenance: Extended battery life and over-the-air updates reduce service calls.
• Flexible Deployment: Pet tolerance can be adjusted, making it suitable for various home or commercial environments.
• Easy to Install & Diagnose: Wireless connectivity, LED indicators, and standard batteries simplify setup and maintenance.
• Future-Proof: Designed to receive updates, ensuring long-term compatibility and performance.
• Flexibility: The DET-2R-DT has the option of switching between Legacy mode and SSR mode ensures that radio detectors are compatible with all current Scantronic panels as well as legacy alarm panels

Ideal Applications:

• Residential homes with pets.
• Areas prone to temperature fluctuations like garages, sheds, or unheated warehouses.
• Rooms with potential for direct sunlight or repetitive movements (e.g., conservatories, rooms with ceiling fans).
• Commercial offices, retail spaces, or small industrial units requiring reliable indoor movement detection.
• Any indoor area where Grade 2 compliant security is required with a need for pet immunity.
