Scantronic DET-2R-SDC Series: Wireless Door Contact and Shock Sensor in 3 Colours – Grade 2
The Scantronic DET-2R-SDC series provides a comprehensive perimeter protection solution by combining a magnetic door contact and a high-sensitivity shock (vibration) sensor into a single, discreet wireless unit. Designed for Grade 2 installations, this device offers reliable, two-way communication and is available in three colors (White, Brown, Grey) to blend seamlessly with various door and window frames. The combined technology ensures maximum security against both opening and forced entry attempts.
Technical Specifications
- Technology Type: Combined (Magnetic/Vibration)
- EN 50131 Grade: 2
- Connection: Radio (Wireless)
- Free Space Radio Range: 700 m (free space)
- Typical Battery Life: 24 months
- Battery Type: 3V CR123 (Quantity 1)
- Tamper Protection: Yes
- Environmental Class: Class II / IP40 (Indoor Use)
- Operating Temperature Range: -10 °C to +55 °C
- Dimensions (H x W x D): 103 mm x 19 mm x 24 mm
Full Description
The Scantronic DET-2R-SDC series offers a versatile and secure solution for perimeter protection by combining two detection technologies into a single, slimline unit. Functioning as both a magnetic door contact and a digital shock sensor, this device is capable of detecting an intruder attempting to force a window or door frame, as well as detecting if the door is opened. This dual-sensing capability ensures confirmed alarm activation and earlier detection of break-in attempts.

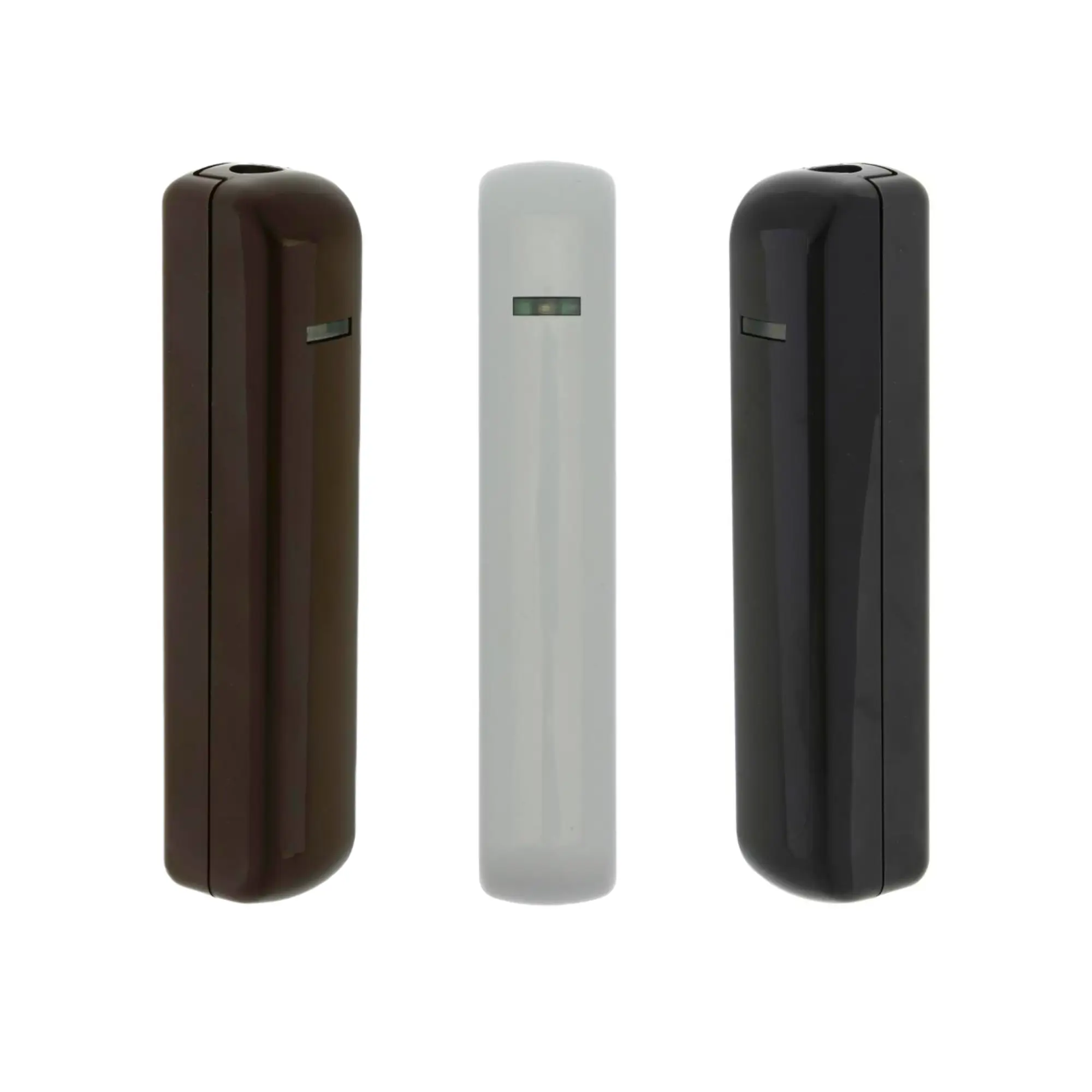

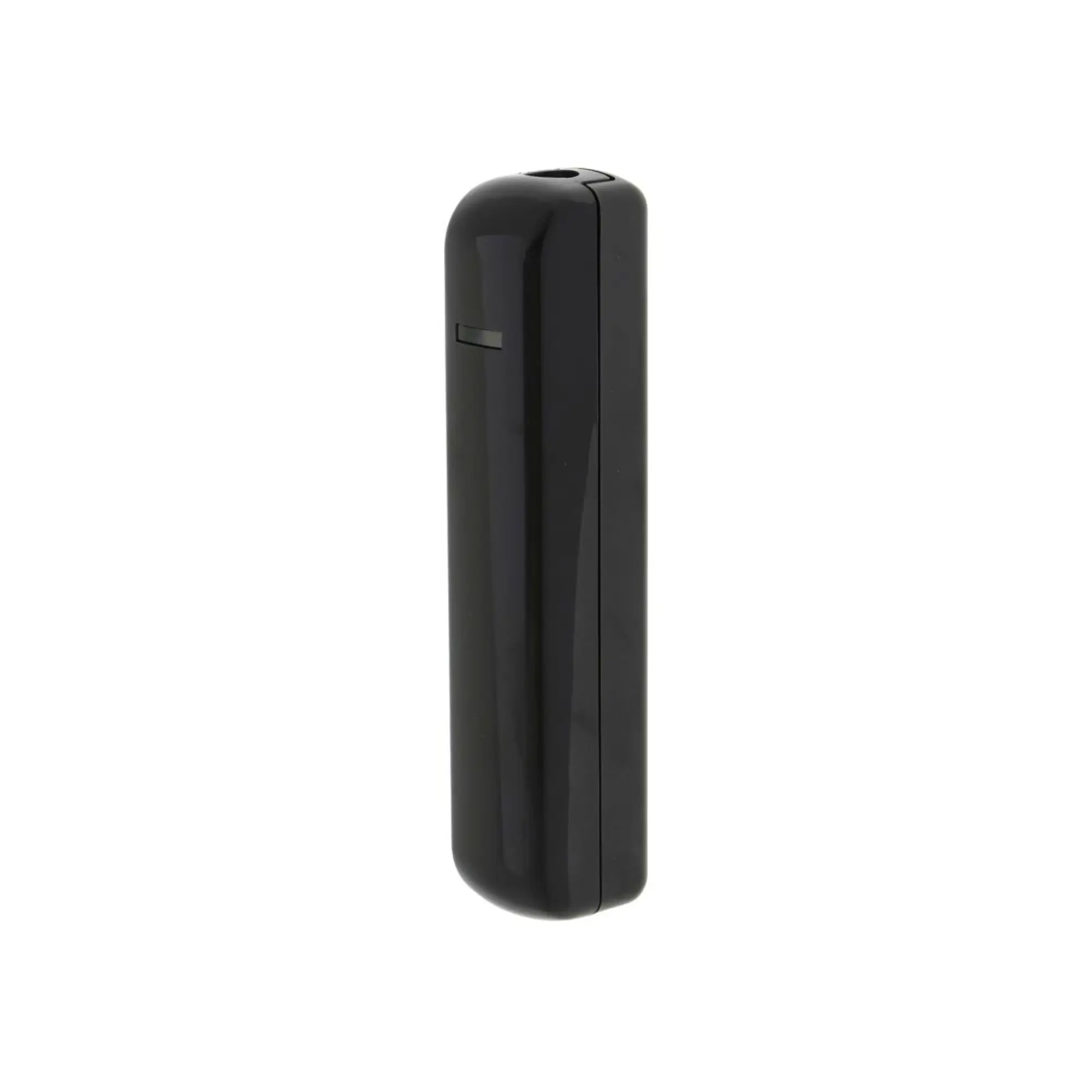

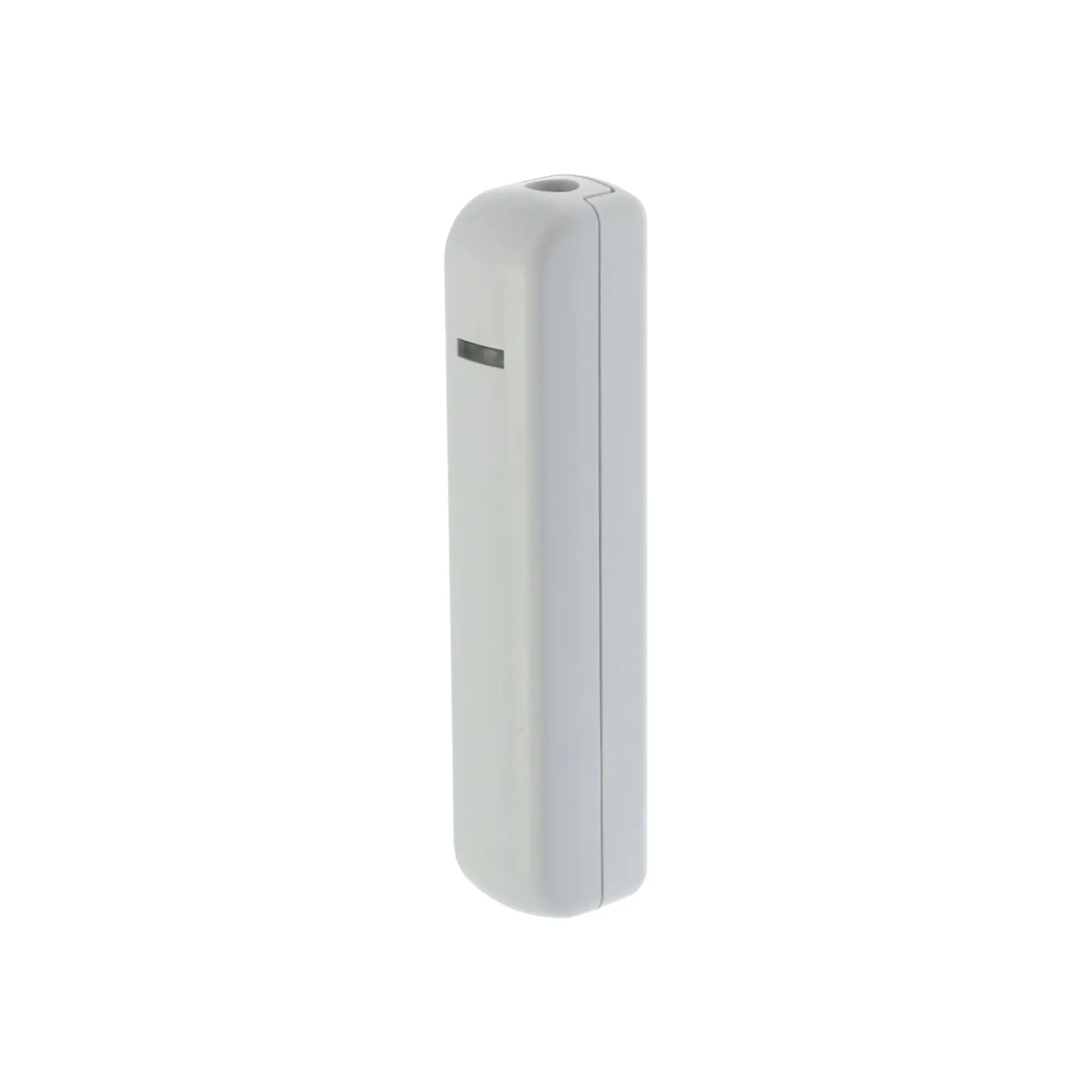

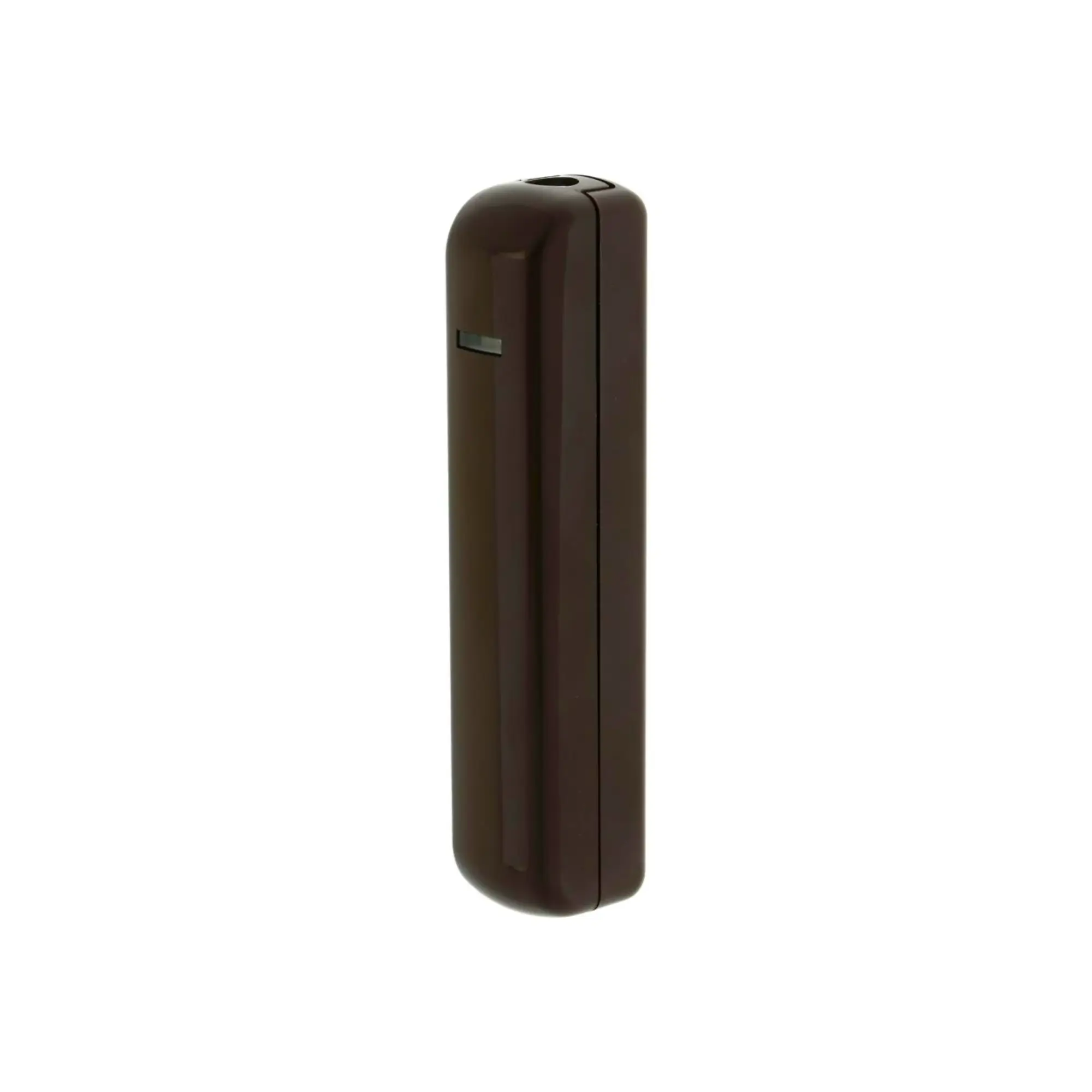

Designed to integrate seamless into the Eaton intruder detection and door contact and shock sensor ecosystem, these devices feature reliable two-way radio communication. To suit a variety of interior decors and window frame finishes, the range is available in three aesthetic options: DET-2R-SDC-W (White), DET-2R-SDC-B (Brown), and DET-2R-SDC-G (Grey).
Key Features Of The Scantronic DET-2R-SDC Series
- Combined Detection: Integrates a magnetic reed switch (opening detection) and a shock sensor (vibration detection) in one housing.
- Grade 2 Security: Compliant with EN 50131 Grade 2 standards for professional installations.
- Two-Way Communication: Reliable radio connection with the panel, ensuring constant supervision.
- Long Wireless Range: Offers up to 700m range in free space.
- Slim Profile: Compact dimensions (19mm width) allow for discreet installation on narrow frames.
- Three Colour Options: Available in White, Brown, and Grey to match PVC, wood, or composite frames.
- Tamper Protection: Built-in tamper protection ensures the device integrity is maintained.
- LED Indication: Optical indication for device status and diagnostics.
Technical Specifications
- Product Name: Eaton intruder detection and door contact and shock sensor
- Connection: Wireless / Radio (Two-way)
- Detection Type: Combined Magnetic Contact & Vibration (Shock)
- Security Grade: EN 50131 Grade 2
- Radio Range: 700 m (free space)
- Power Supply: 3 VDC
- Battery Type: 3V CR123 (Replacement code: 1-345346 / 3v CR2)
- Typical Battery Life: 24 months
- Operating Temperature: -10 °C to +55 °C
- Dimensions (H x W x D): 103 mm x 19 mm x 24 mm
- Weight: 0.05 kg
- Environmental Class: Class II / IP40
- Enclosure Material: Plastic
- See Data Sheet
Benefits Of A Combined Wireless Door Contact and Shock Sensor
- Enhanced Security: Detects forced entry attempts (shock) before the door is actually breached, providing earlier warning.
- Cost-Effective: Combines two sensors into one, reducing hardware costs and installation time.
- Aesthetic Integration: Choice of colours allows the sensor to blend in with modern window and door frames, maintaining the property’s look.
- Reliability: Two-way radio technology ensures signals are acknowledged, preventing missed alarms.
- Versatile Install: Slim design fits where bulkier standard contacts might not.
Ideal Applications
- Residential entry doors (front and back).
- French doors and patio doors vulnerable to forced entry.
- Window frames requiring vibration detection.
- Grade 2 wireless security installations.
- Installations where cabling is difficult or unsightly.
Product Specifications
| Brand | Eaton, Scantronic |
|---|---|
| Device Type | Shock Sensor, Surface Contact |
| Protection Rating | IP40 |
| Power Requirement | CR123 Battery |
| Operating Temperature | -10°C to 55°C |
| Connection Type | Wireless |
| Grading and Compliance | Grade 2 |
| Colours | Grey, White, Brown |
| SKU | EAT-DET-2R-SDC-G, EAT-DET-2R-SDC-W, EAT-DET-2R-DC-B-1 |
