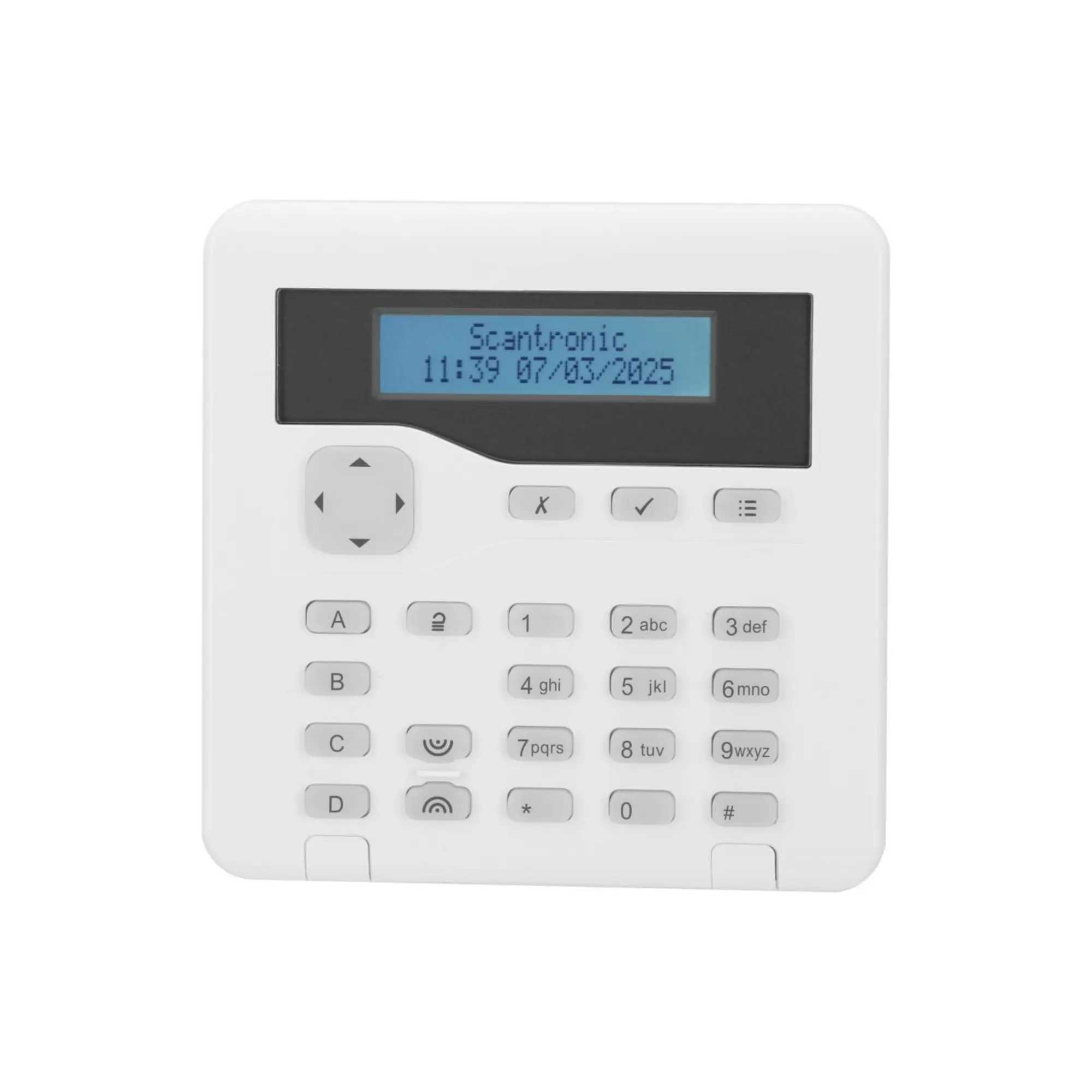

Scantronic KEY-2R-KPZ: Grade 2 Wireless Keypad for i-On Intrusion System

Full Description

Flexible Grade 2 Control with Prox Access and Local Zone Expansion

The Scantronic KEY-2R-KPZ is a modern, two-way Wireless Keypad designed to provide a secure and flexible user interface for the Eaton Scantronic and i-On series intruder alarm panels. Certified to EN 50131 Grade 2, this device is ideal for both new wire-free installations and for adding control points where running cables is difficult or undesirable.

Utilising Scantronic Secure Radio (SSR) technology, the KEY-2R-KPZ guarantees advanced two-way communication and true signal encryption for market-leading cybersecurity. It offers the full functionality of a wired keypad, including a backlit display, navigation keys for installer and user menus, and setting keys (A, B, C, D) configurable for wards or outputs. A major advantage of this model is its inclusion of an Internal Proximity Reader for fast access, and two wired zone inputs, allowing installers to hardwire a local detector or contact right at the keypad.

Key Features Of The Scantronic KEY-2R-KPZ

• Wireless and Two-Way: Features Scantronic Secure Radio (SSR) two-way communication, ensuring system status is always confirmed and enabling over-the-air updates for future-proofing.
• Grade 2 Security: Compliant with EN 50131 Grade 2 and Environmental Class 2 standards for professional installations.
• Integrated Prox Reader: Includes an internal proximity reader for fast, convenient system setting and unsetting using prox tags or key fobs.
• Local Zone Expansion: Equipped with two wired zone inputs for connecting hardwired devices (e.g., door contacts or PIRs) in the immediate vicinity.
• Flexible Installation: Can be learned directly into SSR panels (like the 80HE/30R) or via an EXP-2R radio expander, offering optimum placement flexibility.
• User Interface: Features a backlit display and keys, navigation keys for menus, built-in alert LEDs, and configurable A, B, C, D setting keys for partition control.
• Extended Range: Offers a maximum transmission range of 700m in free space (SSR mode).
• Cybersecure: Utilizes encrypted SSR communication for market-leading cybersecurity.

Technical Specifications

• Product Code: KEY-2R-KPZ
• Security Grade: EN 50131 Grade 2
• Environmental Class: 2
• Connection Type: Wireless (Radio)
• Two-Way Communication: Yes (SSR mode)
• Zone Inputs: 2 (Wired)
• Proximity Reader: Internal
• Radio Frequency: 868-868.5MHz (SSR) / 868.6625MHz (Legacy)
• Transmission Range: 700m max. (free space)
• Battery Type: 3 x 1.5Vdc AA
• Operating Temperature: -10°C to +55°C
• Dimensions (H x W x D): 128mm x 128mm x 35mm
• Weight (with batteries): 300g

Benefits

• Maximum Flexibility: The KEY-2R-KPZ provides full keypad functionality without the need for complex, costly cable runs, ideal for finished properties or difficult areas.
• Enhanced Security: SSR encryption ensures reliable, tamper-resistant communication and reduced false alarms through rapid event notification.
• Convenient Access: Integrated prox reader enables fast setting/unsetting, streamlining the user experience.
• Local Hardwired Option: The two wired zones allow critical, close-proximity devices (like door contacts) to be hardwired for ultimate reliability while maintaining the system’s overall wireless flexibility.

Ideal Applications

• Residential Homes and Apartments: Ideal for unobtrusive installation in finished properties
• Outbuildings and Garages: Provides a remote control point without needing long wiring runs.
• Hybrid Systems: Used with Eaton Scantronic i-on panels (like the 80HE/30R) that leverage both wired and wireless devices.
• Renovations: Adding new control points without damaging existing decor.
