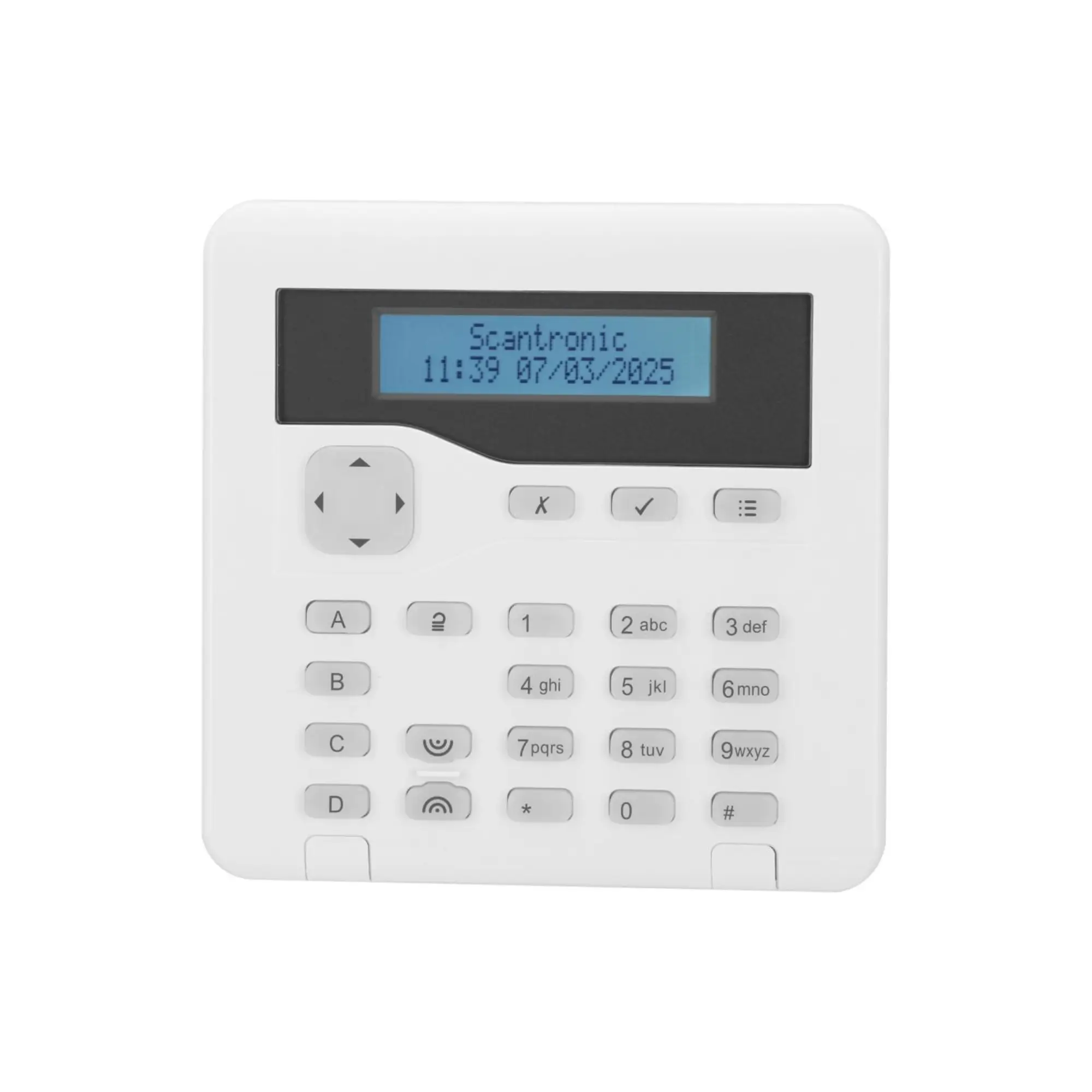

Scantronic KEY-KP01: Grade 3 Wired Keypad with Built-In Prox Reader

Full Description

Core Security Interface: Grade 3 Bus Keypad with Proximity Access Control

The Scantronic KEY-KP01 is a reliable, high-specification Wired Keypad designed to act as the primary user interface for Scantronic intruder alarm systems in high-risk environments. Certified to EN 50131 Grade 3, this Bus Mounted Keypad is ideal for applications where stringent security compliance is mandatory.

The KEY-KP01 provides all the necessary functionality for system control, including a clear display for status feedback, tactile buttons for code entry, and dedicated Personal Attack (PA) keys for immediate emergency signalling. A key feature is the integrated proximity (Prox) tag reader, which allows users to swiftly set and unset the system using a proximity tag or key fob, streamlining the arming/disarming process for efficient, everyday use.

Key Features Of The Scantronic KEY-KP01

• Grade 3 Compliance: Meets the strict requirements of EN 50131 Security Grade 3, making it suitable for high-security applications such as banks, commercial premises, and critical infrastructure.
• Integrated Proximity Reader: Features an integral prox reader for rapid, code-free system operation using proximity tags, enhancing convenience and speed of access.
• Bus-Mounted Design: Connects to the alarm panel via the system bus, simplifying wiring and installation.
• Dedicated PA Keys: Includes dedicated keys for silent and audible Personal Attack (PA) activation.
• System Control: Provides a clear display for system status and full control over system programming and operation.
• Minimalist Functionality: Designed purely for control and access; it does not include any on-board zone inputs (Zone Inputs: 0), focusing its role on system interface and signaling.
• Output Capability: Features one transistor output (Transistor Outputs: 1) for basic system signalling or control functions.

Technical Specifications

• Product Name: Eaton surface mounted keypad for intruder system
• Catalogue Number: KEY-KP01
• Security Grade: EN 50131 Grade 3
• Environmental Class: Class II
• Connection Type: Wired (Bus Mounted)
• Zone Inputs: 0
• Proximity Reader: External prox support included
• Transistor Outputs: 1
• Display: Yes
• Touch Panel: No
• Dedicated PA Keys: Yes
• Colour: White
• Dimensions (H x W x D): 128 mm x 128 mm x 28 mm
• Weight: 0.22 kg
• See Full Data Sheet

Benefits

• High-Security Approval: Guarantees suitability for sites requiring insurance-approved Grade 3 systems.
• Rapid Access: Proximity reader capability dramatically speeds up daily use by allowing arming/disarming without needing to key in a code.
• Reliable Interface: Wired bus connection ensures reliable communication with the control panel, critical for high-security systems.
• Simple Functionality: Focused purely on control and access, making it a robust, dependable interface unit.

Ideal Applications

• High-Security Commercial Sites: Anywhere Grade 3 compliance is a legal or insurance requirement.
• Large Buildings: Used as a user-friendly interface at multiple entry/exit points across a facility.
• System Programming and Maintenance: Serves as the key interface for installers to configure and maintain the alarm system.
• Sites Using Prox Tags: Suitable for organisations that prefer proximity-based access control for employees.
