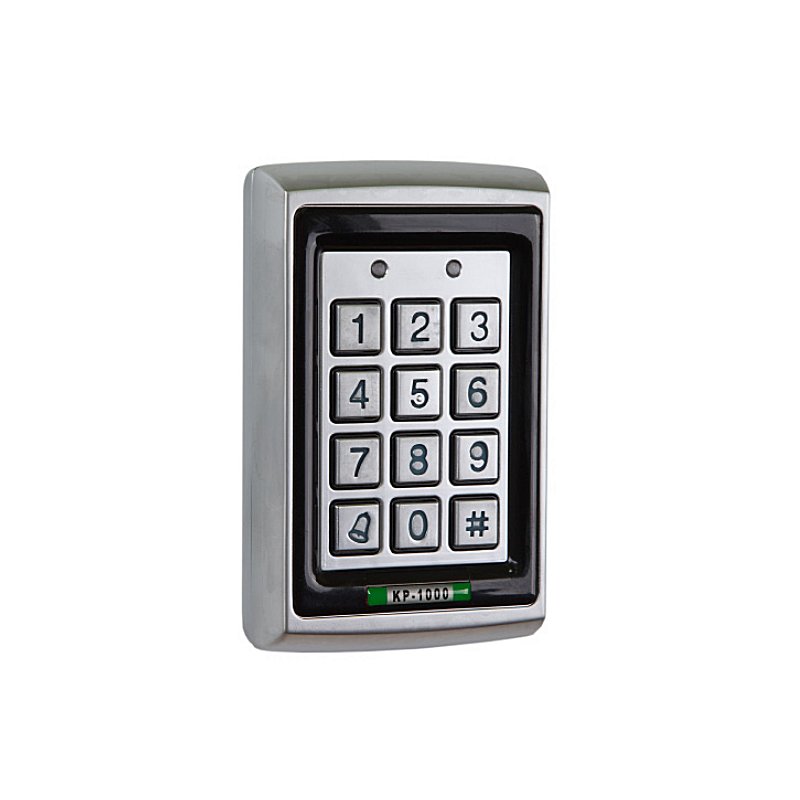

RGL KP1000 Standalone Keypad – 500 Users
Vandal resistant proximity card and keypad access control unit suitable for external applications. The unit accepts up to 500 users and provides entry via PIN codes. An EM-compatible integral card reader allows optional card-entry using standard EM cards.
-
Up to 500 PIN codes
-
Robust metal construction
-
Surface mount
-
Illuminated keys
-
Suitable for internal and external use
-
Multi-Colour LEDs provide visual confirmation of system status
-
Dry contact input for an optional external Request-To-Exit (REX) button
-
Door unlock period configurable from 1 – 99 seconds
- Programming is carried out via the built-in keypad
- Power Requirements: 12VDC @ 130mA (40mA on standby)
-
Two relay outputs:
-
Door relay changeover contact “NO-COM-NC” rated at 5A @ 12 VDC
-
Auxilliary relay changeover contact “NO-COM-NC” rated at 5A @ 12 VDC
-
-
Nominal dimensions: 120mm x 76mm x 27mm
-
Weight: 430g
Product Specifications
| Weight | 430 g |
|---|---|
| Dimensions | 120 × 76 × 27 mm |
| Brand | RGL |
| Frequency | 125 kHz (RFID) |
| Power Requirement | 12 VDC |
| Colours | Brushed Silver |
| Construction | Zinc Alloy |
| Connection Type | Terminal connection |
| Keypad | Illuminated Keypad, Integral Keypad |
| Output Relays | 2 |
| Mounting | Surface Mount |
| Number of Users | 500 |
| SKU | KP1000 |
