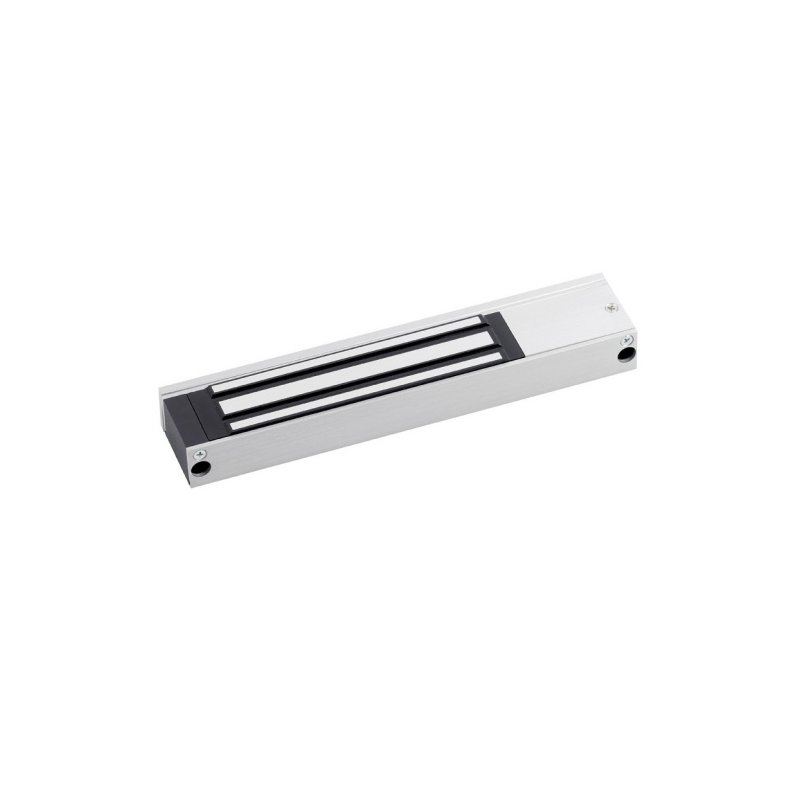

EM150 / EM150M Micro Maglock, 300Lb Holding Force, For Indoor Applications

Designed for single out-swing doors. Z and L brackets are available for installation on an in-swing door, Suitable for cabinets or small doors.

  • Voltage: 12 or 24VDC field selectable ±15%
  • Current: 420mA @ 12VDC (at temperature 20°C)
  • Operating Temperature: -10°C to 55°C (14° to 131°F)
  • Humidity: 0% to 95% non-condensing
  • Holding Force: Up to 136kg (300 Lbs)
  • Dual handed selectable on site
  • Dimensions:
    • Magnet: 200mm (L) x 41mm (W) x 24mm (D)
    • Armature Plate:?152mm (L) x 32mm (W) x 10mm (D)
  • Approximate nominal weight: 1.5kg
  • Unique Anti-Residual design: push-off button to overcome residual magnetism and release the armature smoothly

Available in standard unmonitored and monitor-output versions – please select when ordering

Product Specifications

Weight 1500 g
Brand

GEM

Holding Force

150 Lbs

Colours

Aluminium

Power Requirement

12VDC or 24VDC Selectable

Technology

Electromagnet

Maglock Options

Monitor Output, Standard Unmonitored

SKU SR1-MAG-EM150M, SR1-MAG-EM150
