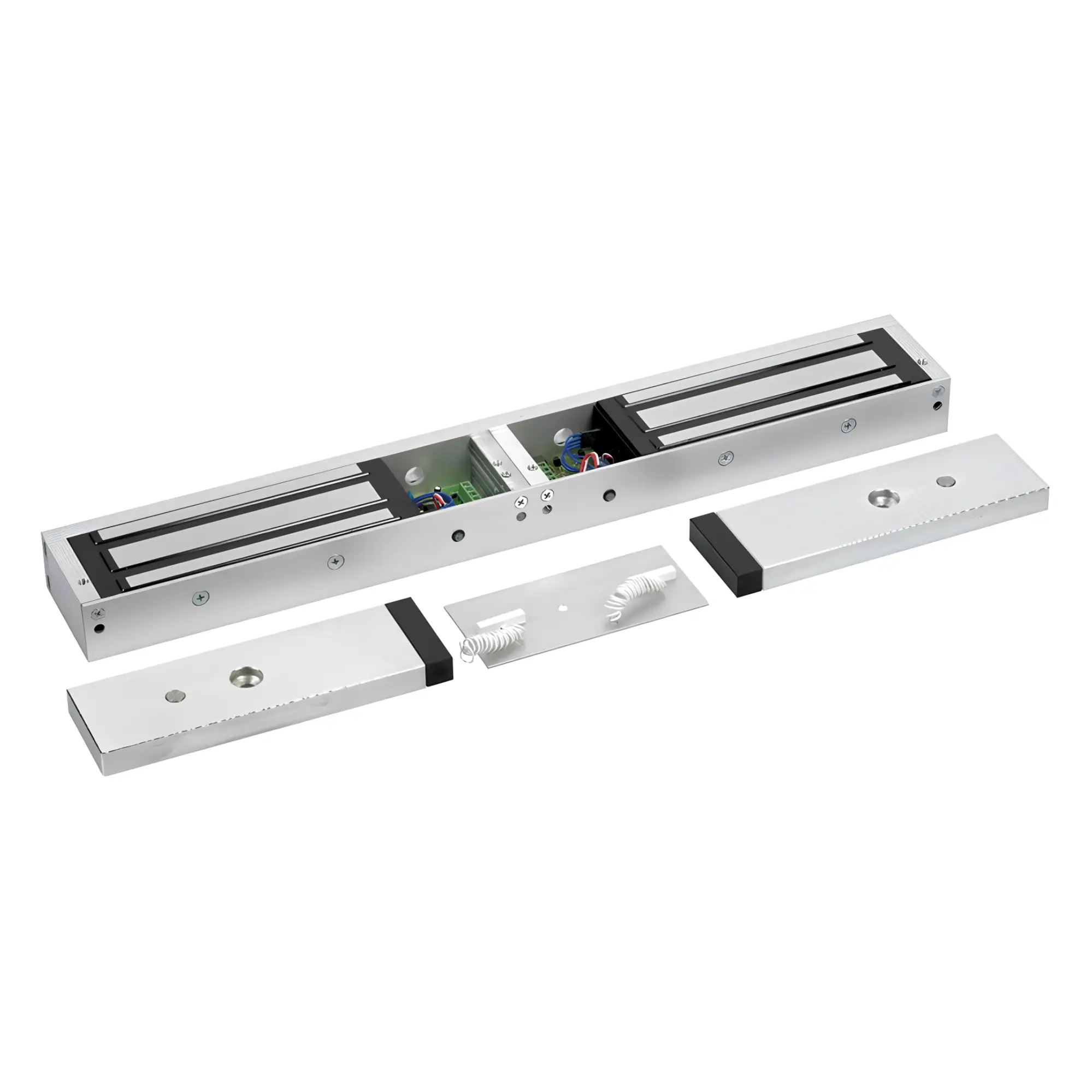

Standard Unmonitored Double Maglock With Optional Door Status

Our Standard Unmonitored Double Maglock With Optional Door Status offer a dependable and secure solution for double door access control. These maglocks offer exceptional holding force, easy installation, and a stylish design. With the option for door status monitoring, you can choose the level of functionality that best suits your specific security requirements.

Key Features:

  • Double-Sided Locking: Provides a combined holding force of up to 545kg (1200lb) for exceptional security on double doors.
  • High Holding Force per Side: Delivers 545kg (1200lb) of holding force on each side of the door for reliable locking.
  • Dual Voltage Operation: Selectable for 12Vdc or 24Vdc power supply compatibility.
  • Surface Mount Installation: Simple and straightforward for efficient setup.
  • Silver Anodised Aluminium Finish: Offers a sleek and modern aesthetic.
  • MOV Surge Protection: Safeguards against electrical spikes and surges.
  • Fail-Safe Operation: Doors unlock when power is lost, ensuring safe egress.
  • Anti-Residual Magnetism Protection: Prevents lingering magnetism for reliable locking.
  • Top-Plate, Armature-Plate, and Fixings Included: Provides all necessary components for installation (excluding power supply).
  • Door Status Monitoring (SKU: SR1-MAG-12002D Only): Includes reed switch contacts (one per side) to monitor door position (open or closed), ideal for integrating with access control systems for improved security and logging.

Full Description

Enhanced Security for Double Doors With The Standard Unmonitored Double Maglock

The Standard Unmonitored Double Maglock With Optional Door Status offers a reliable solution for securing double door applications. These electromagnetic locks provide a powerful holding force on both sides of the door, ideal for high-security entrances. Choose between the unmonitored version (SKU: SR1-MAG-12002) for a basic locking mechanism or the model with door status monitoring (SKU: SR1-MAG-12002D) for added functionality.

Key Features (Apply to Both Products):

  • Double-Sided Locking: Provides a combined holding force of up to 545kg (1200lb) for exceptional security on double doors.
  • High Holding Force per Side: Delivers 545kg (1200lb) of holding force on each side of the door for reliable locking.
  • Dual Voltage Operation: Selectable for 12Vdc or 24Vdc power supply compatibility.
  • Surface Mount Installation: Simple and straightforward for efficient setup.
  • Silver Anodised Aluminium Finish: Offers a sleek and modern aesthetic.
  • MOV Surge Protection: Safeguards against electrical spikes and surges.
  • Fail-Safe Operation: Doors unlock when power is lost, ensuring safe egress.
  • Anti-Residual Magnetism Protection: Prevents lingering magnetism for reliable locking.
  • Top-Plate, Armature-Plate, and Fixings Included: Provides all necessary components for installation (excluding power supply).

Additional Feature (SKU: SR1-MAG-12002D Only):

  • Door Status Monitoring: Includes reed switch contacts (one per side) to monitor door position (open or closed), ideal for integrating with access control systems for improved security and logging.

Benefits of A Standard Unmonitored Double Maglock:

  • Superior Security: Double-sided locking with high holding force per side deters unauthorised access.
  • Versatile Applications: Suitable for various double door applications requiring enhanced security.
  • Easy Installation: Surface mount design simplifies setup.
  • Cost-Effective (SR1-MAG-12002): The unmonitored version offers a budget-friendly solution for basic security needs.
  • Enhanced Security with Monitoring (SR1-MAG-12002D): Door status monitoring allows for integration with access control systems for improved real-time awareness.

Ideal Applications:

  • Building Entrances: Securing main entry points with a robust locking mechanism.
  • Server Rooms and Data Centres: Ensuring high-level security for critical IT infrastructure.
  • Emergency Exits: Providing secure double door access while maintaining safe egress.
  • Financial Institutions: Protecting vaults and secure areas with a powerful locking solution.
  • Luxury Retail Stores: Securing high-value merchandise displays and entrances.

Choosing Between Unmonitored and Monitored Models:

  • The unmonitored version (SR1-MAG-12002) is a basic locking solution ideal for applications where a strong double door lock is needed.
  • The model with door status monitoring (SR1-MAG-12002D) offers the additional benefit of monitoring door position, allowing for integration with access control systems for real-time monitoring and logging.

Product Specifications

Weight 9500 g

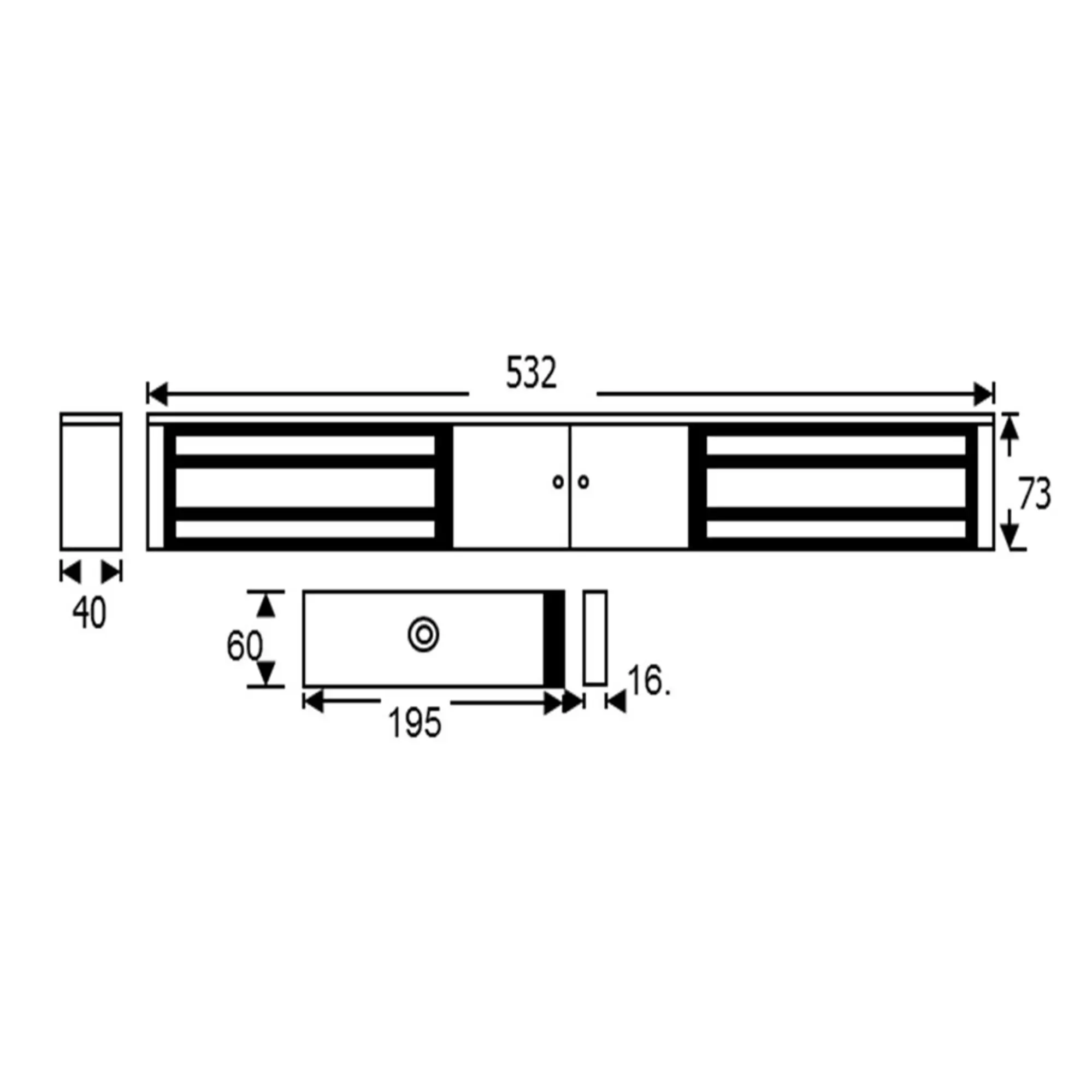

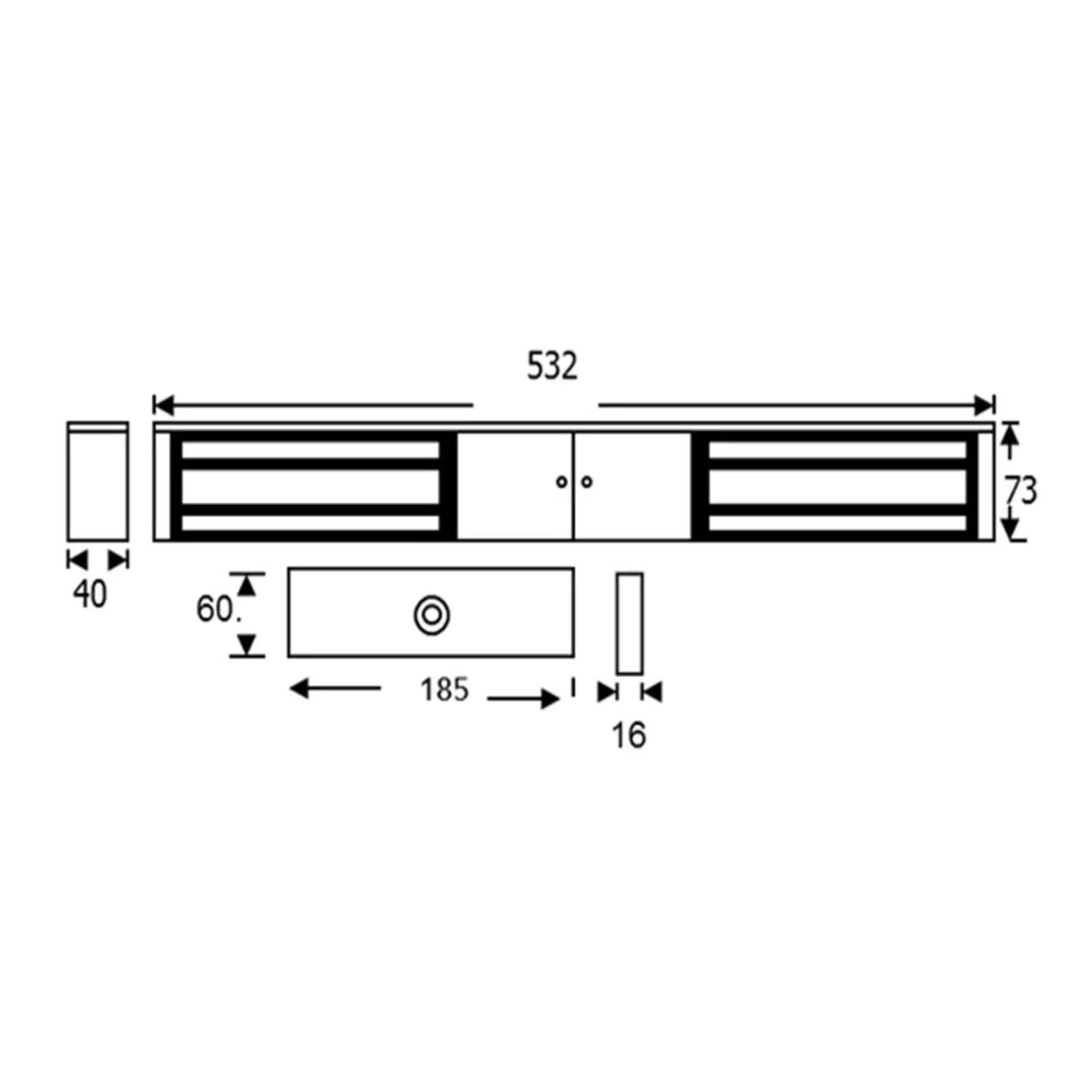

Dimensions 532 × 73 × 40 mm
Lock Options

Unmonitored, Unmonitored + Door Status Sensor

Connection Type

Terminal connection

Construction

Aluminium Alloy

Holding Force

1200 Lbs x 2

Mounting

Surface Mount

Operating Temperature

-10°C to 55°C

Power Requirement

12 VAC, 12-24 VDC, 24 VDC

Brand

Smart R Distribution

Safety Features

Fail-Safe

Form Factor

Double Maglock

SKU SR1-MAG-12002, SR1-MAG-12002D
