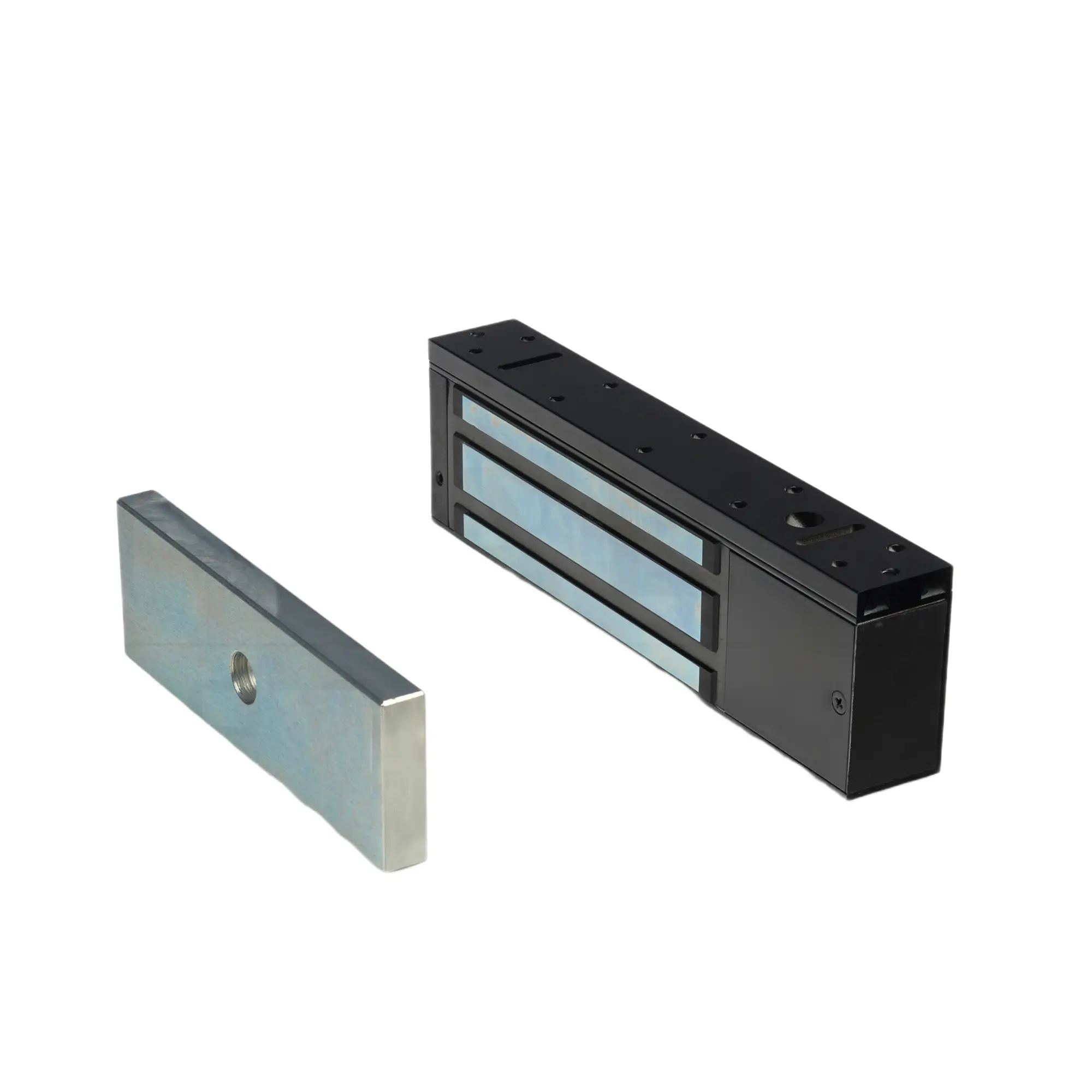

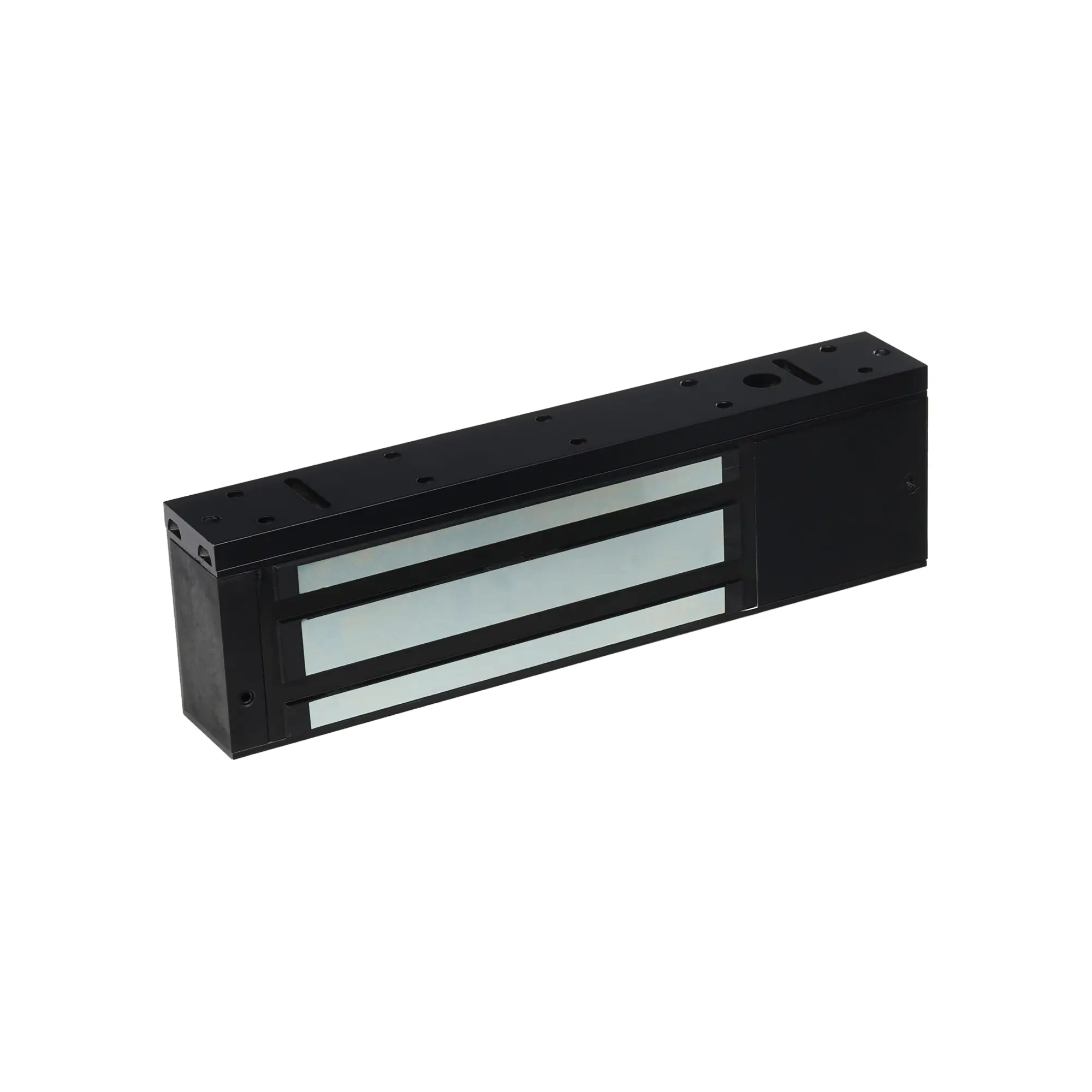

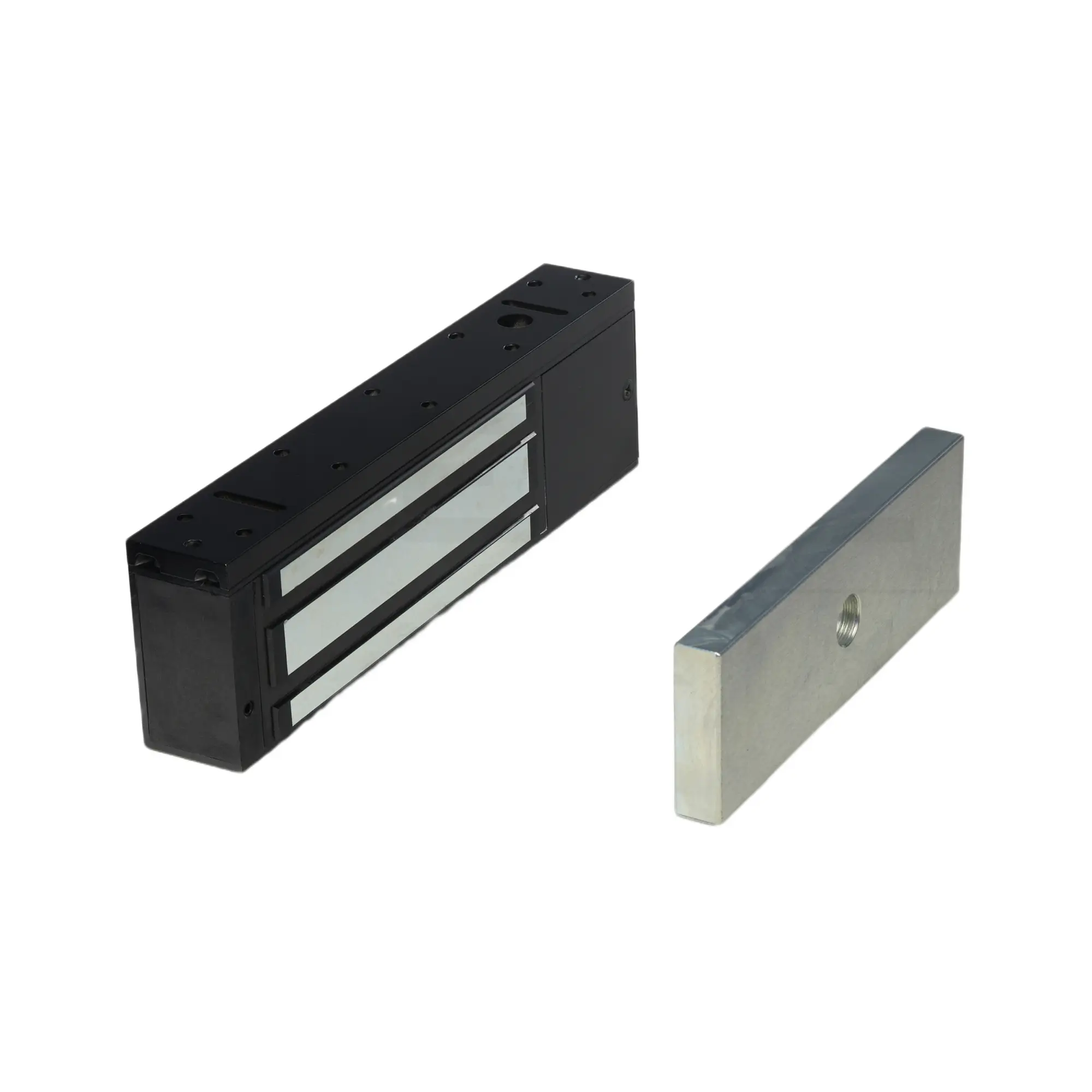

STEALTH20DS: Standard Monitored Maglock with Door Status

The STEALTH20DS is a high-performance, single monitored magnetic lock designed for robust access control where both security and comprehensive feedback are essential. With a formidable 1200lb (545kg) holding force and a modern “Stealth black” finish, this maglock provides a secure and aesthetically pleasing solution. What sets the STEALTH20DS apart is its dual monitoring capability, providing not only lock status but also real-time door position monitoring.

Key Features:

  • 1200lb (545kg) Holding Force: The STEALTH20DS delivers a high level of security, making the door highly resistant to forced entry.
  • Dual Monitoring: This model offers two critical monitoring functions:
    • Lock Monitoring: A built-in sensor provides real-time lock status (locked/unlocked) via a clear Red/Green LED indicator and a relay output (COM/NO/NC) for signaling to an access control system.
    • Door Status Monitoring: The STEALTH20DS features an integrated reed switch door contact monitors the actual position of the door (open/closed), offering an additional layer of security and system feedback.
  • Stealth Black Finish: Features a sleek and modern black anodized finish, allowing it to blend discreetly with contemporary door designs and architectural aesthetics.
  • Fire Rated: Certified for use on fire-rated doors, ensuring compliance with critical fire safety regulations.
  • Fail-Safe Operation: The lock is designed to release and allow egress in the event of a power failure, a crucial safety feature.
  • Advanced Protection:
    • MOV (Metal Oxide Varistor): Provides spike and surge protection for enhanced reliability and longevity of the lock’s electronics.
    • Anti-Residual Magnetism: A feature that prevents lingering magnetic force, ensuring smooth and consistent door release.
  • Dual Voltage (Selectable): Operates on both 12Vdc (500mA) and 24Vdc (250mA), providing flexible compatibility with various power supplies.
  • Comprehensive Kit: Includes the top-plate, armature-plate, and all necessary fixings for a complete surface-mount installation.
  • Robust & Durable: With a weight of approximately 4.8kg, it is built for durability in high-traffic indoor environments

Full Description

Black Maglock with 1200lbs Holding Force and Lock and Door Status Monitoring

The STEALTH20DS is a high-security, standard monitored maglock from Stealth Locking, engineered to provide robust and intelligent access control for indoor applications. With a formidable 1200lb (545kg) holding force and a sleek black finish, this maglock goes beyond basic security by including a dedicated reed switch for door status monitoring. This key feature allows for real-time tracking of the door’s position, making it a powerful and comprehensive solution for sophisticated access control systems.

Key Features of the STEALTH20DS:

  • Door Status Monitoring: A crucial differentiator, the integrated reed switch provides relay contacts that signal the open or closed position of the door, enabling enhanced security management and integration with alarm systems.
  • 1200lb (545kg) Holding Force: Delivers a high level of security, capable of withstanding significant force and preventing unauthorized entry.
  • Lock Status Monitoring: In addition to door status, the STEALTH20DS includes relay contacts and a Red/Green LED indicator to signal the lock’s energized or de-energized state.
  • Fail-Safe Operation: The lock operates in a fail-safe mode, meaning it unlocks upon loss of power, a critical safety feature for emergency egress.
  • Anti-Residual Magnetism Protection: Designed to prevent residual magnetism, ensuring a clean and quick release of the armature plate for reliable door opening.
  • MOV (Metal Oxide Varistor) Protection: Built-in surge and spike protection safeguards the maglock’s electronics from power fluctuations, ensuring durability and longevity.
  • Dual Voltage Operation: Supports both 12Vdc and 24Vdc, selectable during installation, making it compatible with a wide range of power supplies.
  • Stealth Black Finish: The modern black finish provides a discreet and professional aesthetic that complements various interior designs.
  • Fire Rated: The STEALTH20DS is certified for use on fire-rated doors, ensuring the lock meets strict safety and building regulations.
  • Complete Package: The kit includes the top-plate, armature-plate, and all necessary fixings for a complete and straightforward surface-mount installation.

Technical Information:

  • Holding Force: Up to 545kg (1200lb)
  • Current Draw: 500mA @ 12Vdc / 250mA @ 24Vdc
  • Voltage Tolerance: +/- 15%
  • Operating Temperature: -10°C to +55°C
  • Humidity: 0-95% non-condensing
  • Weight: Approximately 4.8kg
  • LED Indicator: Red/Green
  • Lock Status Relay: COM/NO/NC (1A @ 24Vdc)
  • Door Status Contact: Reed switch
  • Finish: Black
  • See the STEALTH20DS Data Sheet

Benefits Of a Monitored Maglock with Door Status:

  • Advanced Security Intelligence: The combination of lock and door status monitoring provides a comprehensive overview of the door’s security state, a key feature for professional access control and alarm systems.
  • High-Level Protection: The impressive holding force, anti-residual magnetism, and surge protection ensure reliable performance and durability.
  • Simple Integration: Dual voltage compatibility and versatile relay contacts allow for easy incorporation into existing or new security installations.
  • Safety Compliant: Fire-rated construction and fail-safe operation meet crucial safety standards for emergency situations.
  • Aesthetic & Discreet: The stealth black finish provides a modern and unobtrusive appearance suitable for high-end environments.

Ideal Applications:

  • Main entrance doors in commercial and residential buildings where door position monitoring is required.
  • Server rooms, data centres, and other high-security areas that need to log door open/close events.
  • Office buildings, schools, and healthcare facilities that utilise sophisticated access control systems.
  • Any indoor installation where both the locked state of the door and its physical position need to be monitored.

Product Specifications

Brand

Stealth Locking

Lock Options

Monitored, With Door Status Sensor

Holding Force

1200 Lbs

Mounting

Surface Mount

Operating Temperature

-10°C to 55°C

Power Requirement

12-24 VDC

Safety Features

Fire Resistant

Form Factor

Standard Maglock

Fire Rating

Fire Rated

SKU STEALTH20DS
