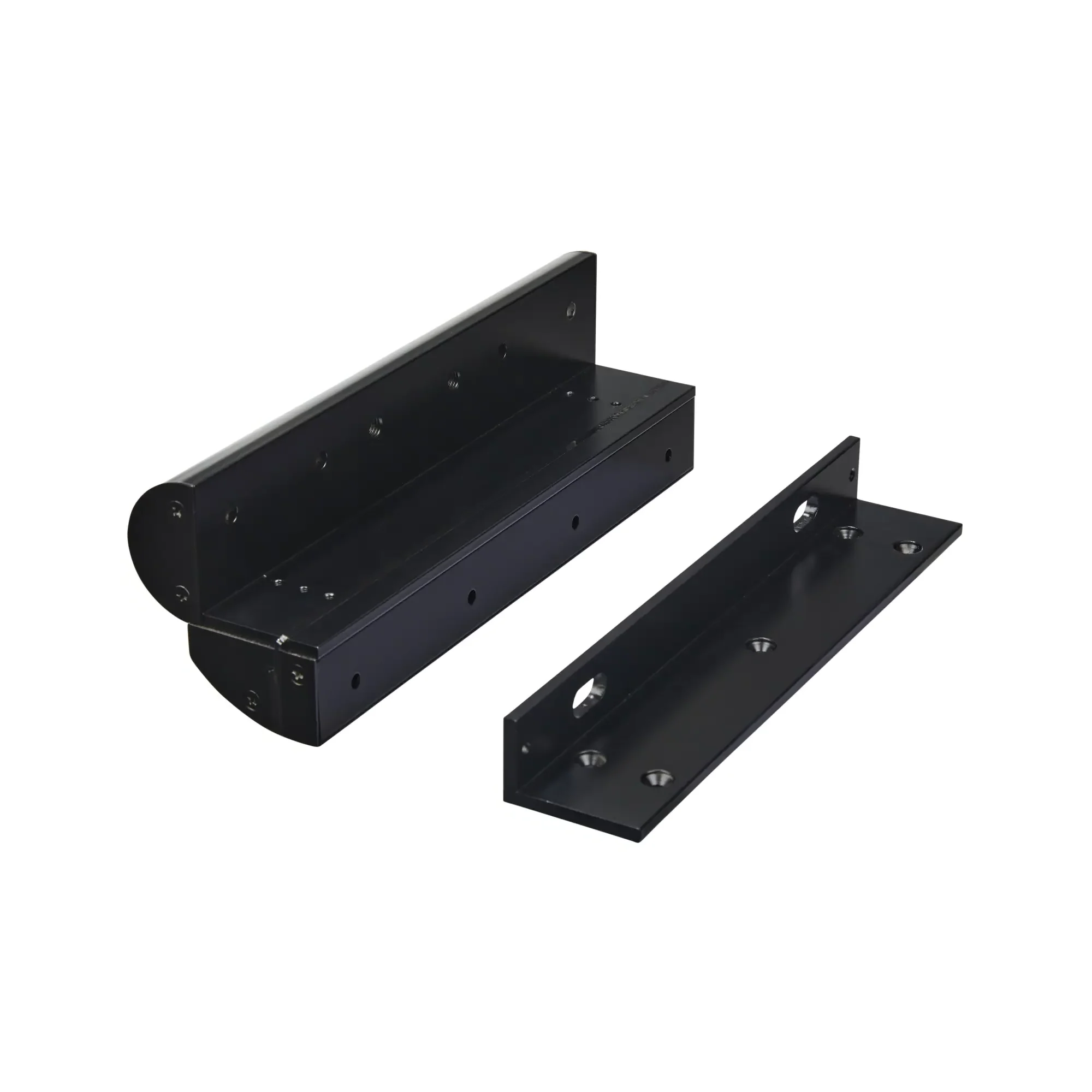

STEALTH300ZLDC: Double Covered ZL Set for Slim Maglocks

The STEALTH300ZLDC is an architectural-grade double covered ZL set designed specifically for slim maglocks installed on inward-opening doors. This bracket set offers the most aesthetic and professional finish possible, concealing all wiring and fixing points for a truly clean installation. Its fully adjustable Z bracket ensures precise alignment of the armature plate with the maglock, guaranteeing a secure and reliable lock every time. With a stealth black finish and a fire-rated certification, the STEALTH300ZLDC combines superior aesthetics with robust performance and safety.

Technical Specifications:

  • Maximum Adjustment: 22mm
  • Z Bracket Dimensions: 255mm (L) x 97mm (D) x 82mm (H)
  • L Bracket Dimensions: 250mm (L) x 30mm (W) x 48mm (H)
  • Finish: Stealth Black
  • Compatibility: Slim-cased maglocks
  • Fire Rated: Yes

Full Description

Double Covered ZL Set for Inward Opening Doors

The STEALTH300ZLDC is a premium, architecturally designed Z & L bracket set for slim magnetic locks, specifically engineered for inward-opening doors. This double-covered bracket kit provides the smartest and most aesthetically pleasing appearance possible, concealing all hardware for a clean, professional installation. Finished in a sleek stealth black, the fully adjustable design ensures precise alignment of the armature plate with the magnet, guaranteeing optimal performance.

Key Features Of The STEALTH300ZLDC:

  • Double Covered Design: The unique architectural design provides a double-covered finish, hiding all mounting hardware and wiring for the smartest possible appearance.
  • Inward Opening Door Compatibility: Specifically engineered for use on inward-opening doors, providing the necessary mounting for the armature plate and maglock.
  • Fully Adjustable Z Bracket: The Z bracket is fully adjustable, allowing for a precise 22mm of maximum adjustment to perfectly align the armature plate with the face of the maglock. This is critical for ensuring the maglock’s full holding force is achieved.
  • Slim Maglock Compatibility: Designed to be compatible with slim-cased maglocks, ensuring a seamless and integrated installation.
  • Stealth Black Finish: Features a discreet and professional stealth black finish that blends seamlessly with the maglock and door frame.
  • Fire Rated: Certified for use in fire-rated door assemblies, ensuring that your installation meets critical safety and building code requirements.
  • Double Maglock Support: For double maglock installations, two of these bracket sets are required.

Technical Information:

  • Maximum Adjustment: 22mm
  • Z Bracket Dimensions: 255mm (L) x 97mm (D) x 82mm (H)
  • L Bracket Dimensions: 250mm (L) x 30mm (W) x 48mm (H)
  • Finish: Stealth Black
  • Compatibility: Slim-cased maglocks
  • Fire Rated: Yes
  • See the Data Sheet

Benefits Of Our Double Covered ZL Set for Slim Maglocks:

  • Superior Aesthetics: The double-covered design provides a clean, professional, and architecturally pleasing installation, ideal for high-end properties.
  • Precise Alignment: The fully adjustable Z bracket ensures optimal alignment, ensuring the maglock’s maximum holding force and reliability.
  • Enhanced Safety: Its fire-rated certification ensures the installation is compliant with safety standards.
  • Flexible & Versatile: Specifically designed for inward-opening doors, a common application for access control systems.
  • Simplified Installation: The complete bracket set simplifies the mounting process, ensuring all necessary components are available for a professional job.

Ideal Applications:

  • Main entrances of commercial and residential buildings with inward-opening doors.
  • Office doors, conference rooms, and server rooms.
  • Any professional environment where a clean, aesthetically pleasing, and secure access control installation is required.
  • Fire-rated door installations where compliance with building regulations is mandatory.

Product Specifications

Dimensions 255 × 97 × 82 mm
Brand

Stealth Locking

Colours

Black

Device Type

Maglock Accessories

Form Factor

Brackets and Accessories

Safety Features

Fire Resistant

Fire Rating

Fire Rated

SKU STEALTH300ZLDC
