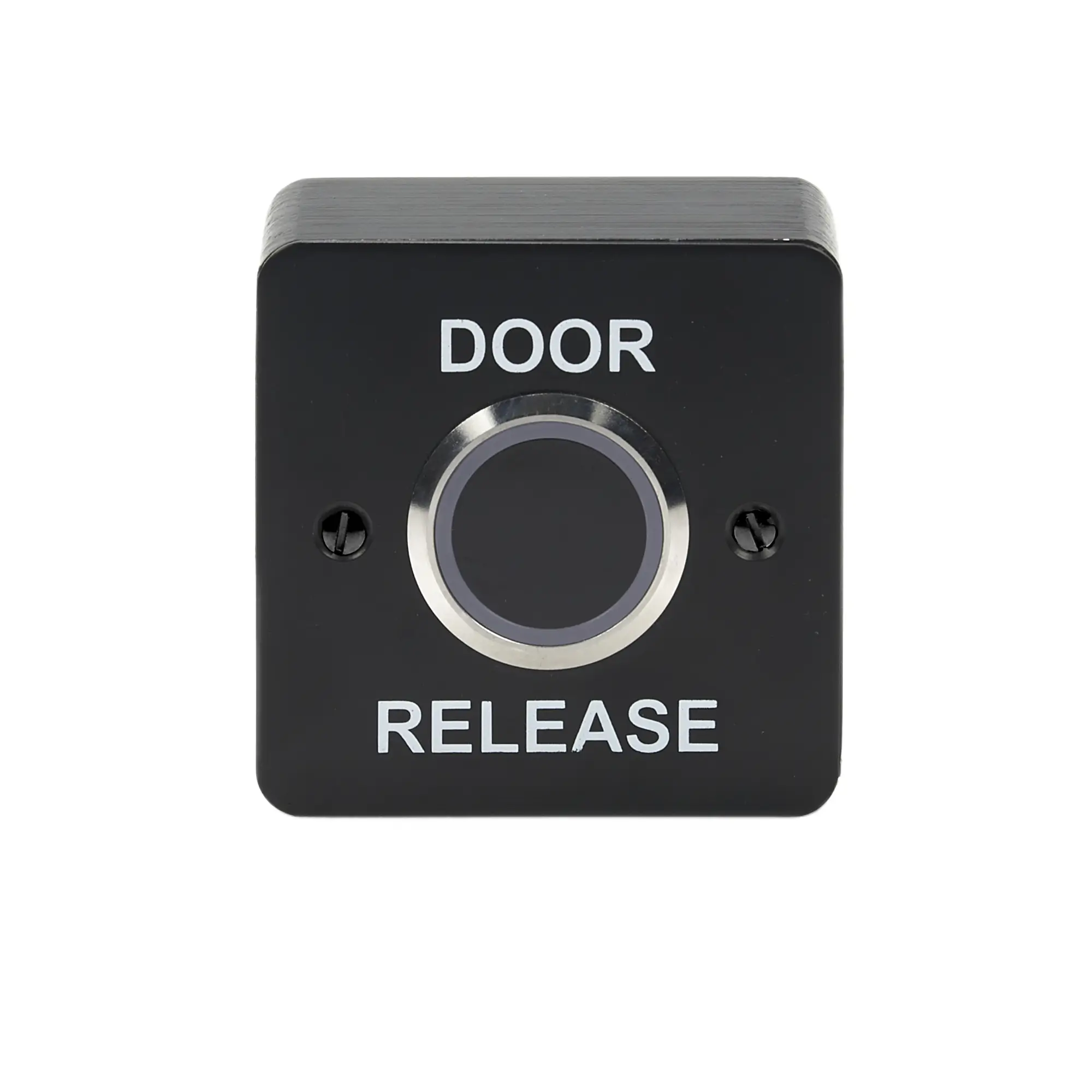

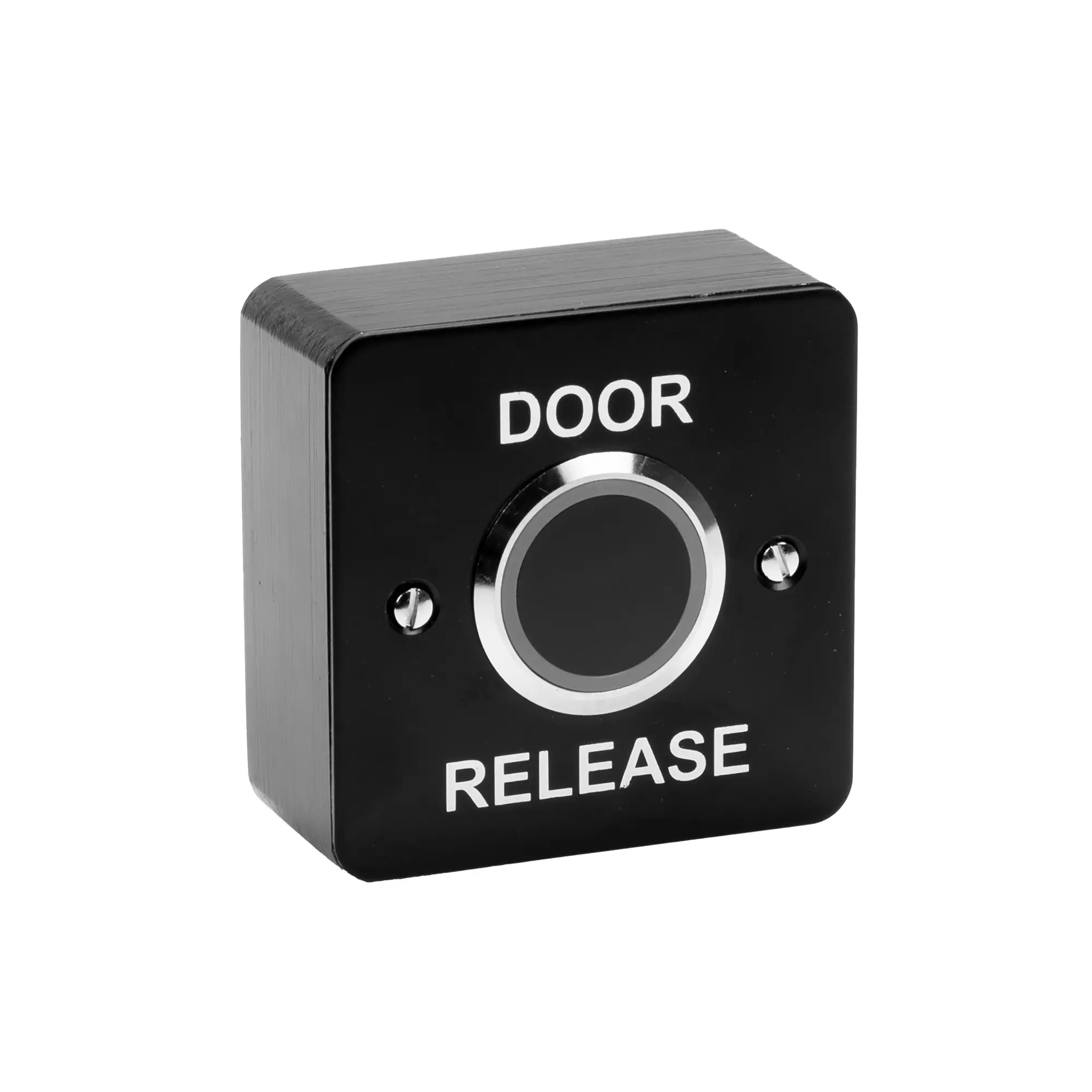

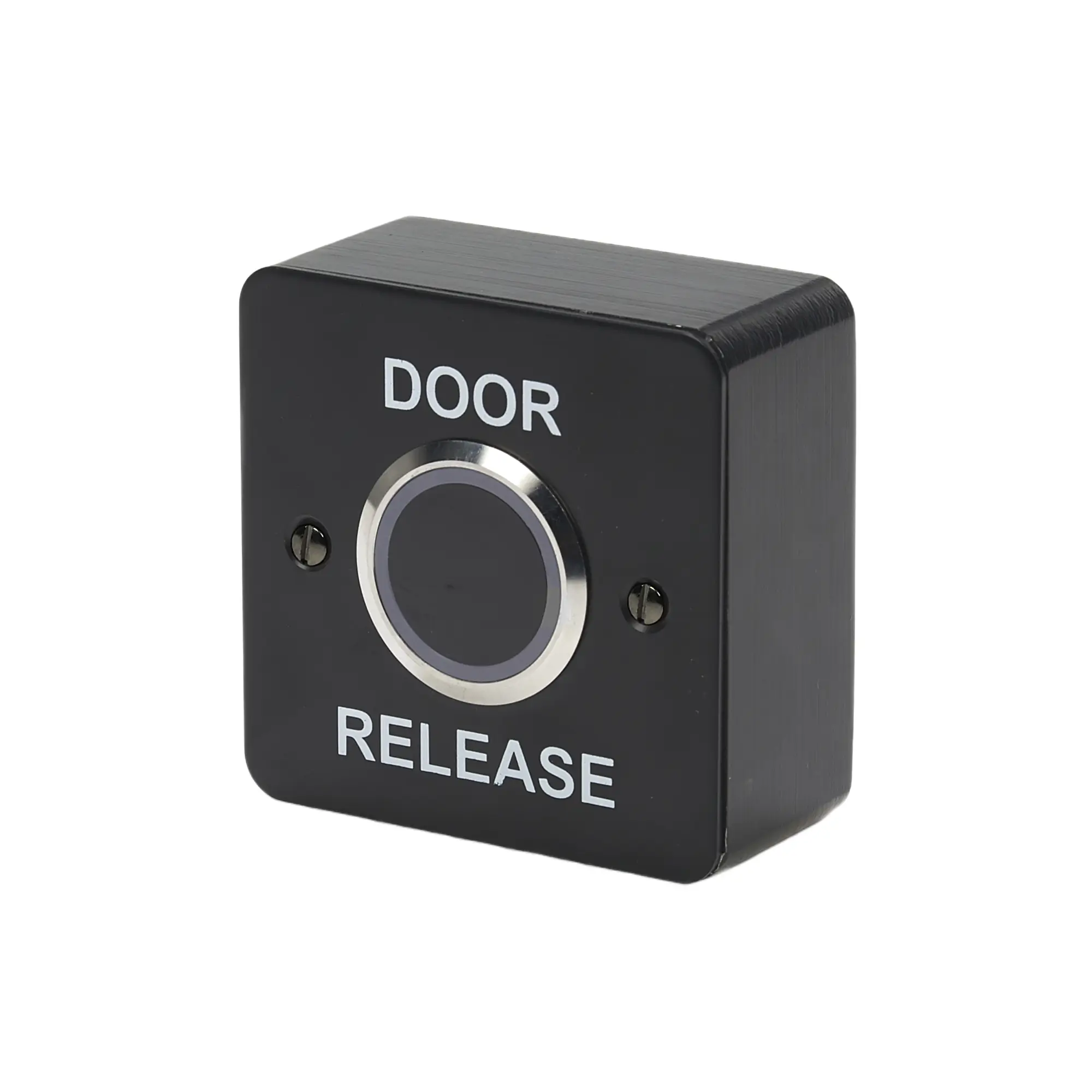

STEALTHNT200S: Black No Touch Door Release Button with Backbox

The STEALTHNT200S is a sleek, black no touch door release button, featuring a hygienic, contactless infrared sensor. This Stealth Locking device is activated by a simple hand wave, making it an ideal solution for sterile environments and high-traffic areas. It comes complete with a single-gang stainless steel back-box for surface mounting.

Technical Specifications:

  • Voltage: 12-24Vdc
  • Current Draw: 45mA max
  • Relay: COM/NO/NC contacts
  • Operating Temperature: -10°C to +70°C
  • Proximity Range: Adjustable from 4cm to 15cm (+/- 25%)
  • Door-Open Period: Adjustable from 0.5-20s or toggle mode
  • Ingress Protection: IP65 (sensor unit only)

Full Description

Contactless, Hygienic, and Stylish: The Stealth Locking No Touch Exit Button

The STEALTHNT200S is an elegant and hygienic no touch door release button from Stealth Locking, designed for environments where cleanliness and contactless operation are a priority. Activated by a simple wave of the hand, its infrared proximity sensor eliminates the need for physical contact, making it ideal for cleanrooms, healthcare facilities, and public spaces. This sophisticated button features a sleek black finish, an illuminated halo for clear status indication, and comes complete with a single gang stainless steel back-plate and a backbox for surface mounting.

Key Features of the STEALTHNT200S:

  • Contactless Infrared Activation: The STEALTHNT200S no touch door release button utilises an infrared proximity sensor to detect a hand’s presence from a distance, providing a hygienic and touch-free method of door release.
  • Illuminated Halo: A clear and intuitive visual indicator, the halo changes from red (standby) to green (activated) to confirm the button’s status.
  • Adjustable Proximity Range: The activation range can be easily adjusted from 4cm to 15cm (+/- 25%), allowing for customisation based on the installation environment.
  • Adjustable Door-Open Period: The door-open period is adjustable from 0.5 to 20 seconds, or can be set to toggle mode, providing flexibility for different access control scenarios.
  • Stealth Black Finish: Features a modern and discreet black finish on the stainless steel back-plate, offering a sophisticated aesthetic that complements contemporary interiors.
  • IP65 Rated Sensor: The infrared sensor unit itself boasts an IP65 rating, ensuring protection against dust and low-pressure water jets.
  • Surface Mount with Backbox: Supplied with a single gang stainless steel back-plate and a backbox for straightforward surface installation.
  • Screen Printed ‘DOOR RELEASE’ Legend: The back-plate is clearly labelled with “DOOR RELEASE,” making its function instantly recognisable.
  • Built-in Relay Contacts: Provides COM/NO/NC relay contacts for easy integration with any access control system.

Technical Information:

  • Voltage: 12-24Vdc
  • Current Draw: 45mA max
  • Relay: COM/NO/NC contacts
  • Operating Temperature: -10°C to +70°C
  • Proximity Range: Adjustable from 4cm to 15cm (+/- 25%)
  • Door-Open Period: Adjustable from 0.5-20s or toggle mode
  • Ingress Protection: IP65 (sensor unit only)
  • See the Full STEALTHNT200S No Touch Door Release Button Data Sheet

Benefits Of The Stealth No Touch Door Release Button:

  • Enhanced Hygiene: Eliminates the need to touch a surface, reducing the spread of germs and making it ideal for sanitary-conscious environments.
  • Flexible & Customisable: Adjustable proximity range and door-open period allow the button to be tailored to specific needs.
  • Intuitive Operation: The illuminated halo provides clear visual feedback to the user, ensuring ease of use.
  • Stylish & Discreet: The stealth black finish and slim design provide a modern and unobtrusive appearance.
  • Durable & Reliable: The stainless steel back-plate and IP65-rated sensor ensure long-term performance in various conditions.

Ideal Applications:

  • Hospitals, clinics, and cleanrooms.
  • Public toilets and kitchen entrances.
  • Food and pharmaceutical production facilities.
  • Offices, schools, and airports where hygiene is a priority.
  • Any indoor environment where a hands-free door release is desired for convenience and cleanliness.

Product Specifications

Brand

Stealth Locking

Contacts

3-pole contact

Protection Rating

IP65 (pushbutton only)

Power Requirement

12-24 VDC

Mounting

Flush Mount, Surface Mount

Legend

DOOR RELEASE

Colours

Black

Device Type

Contactless

SKU STEALTHNT200S
