XPR MTPADP Series: Weatherproof Backlit Keypad Reader – EM and HID Prox Compatible

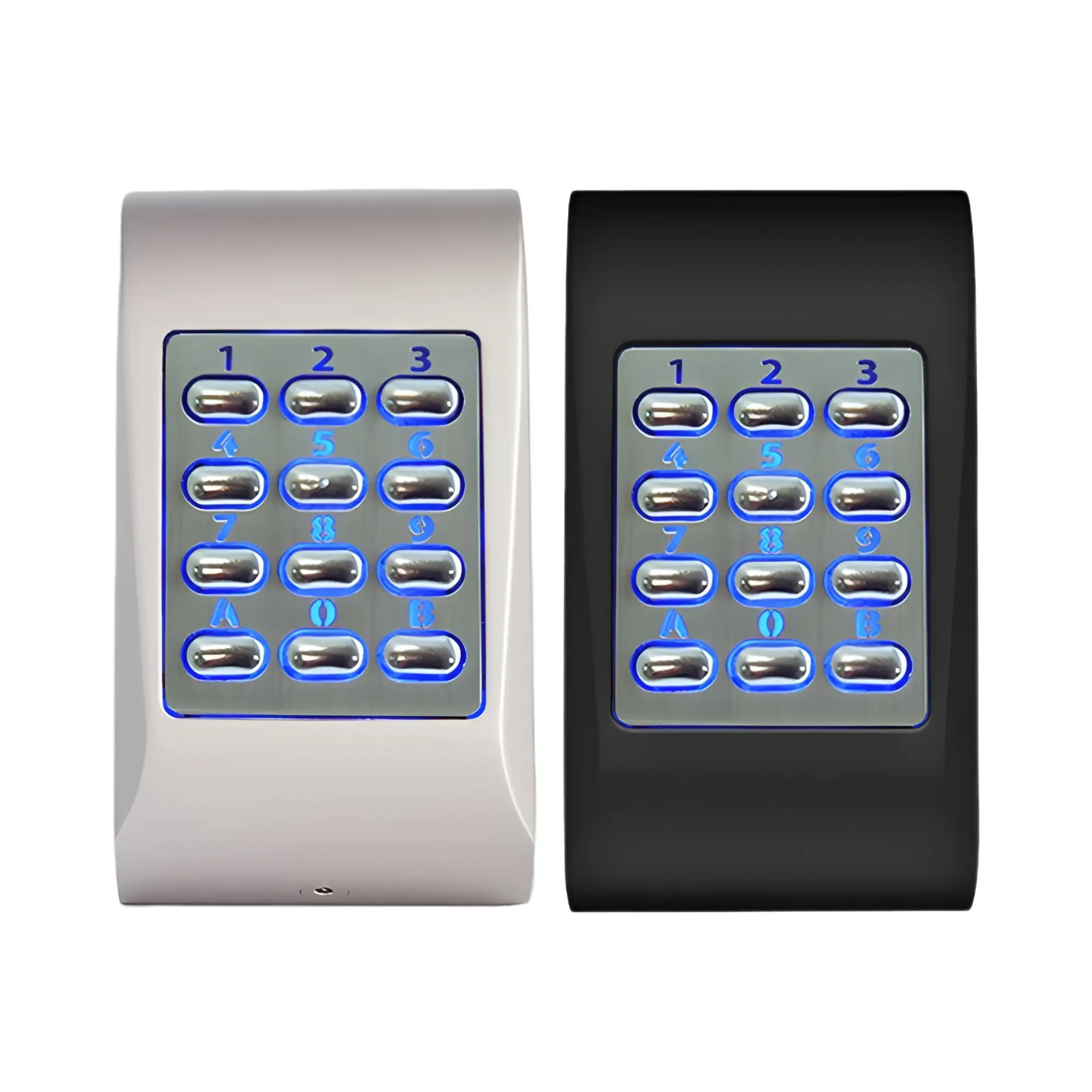

The XPR MTPADP series combines robust security with an elegant design, offering a versatile keypad and RFID reader solution for standalone access control. Available in sleek black ( XPR MTPADPBK-EH-SA) or silver (XPR MTPADPS-EH-SA) ABS housing, this weatherproof unit is compatible with both EM and HID 125 kHz proximity cards and supports up to 1000 users.
Key Features:
- Dual Technology Access: Provides multiple access options via a backlit keypad (PIN codes) and an integrated RFID reader (EM4100 or HID 125 kHz compatible cards).
- Standalone Operation: Features a built-in relay, making it a self-contained access control unit capable of managing up to 1000 user codes or cards independently.
- Weatherproof Design (IP65): Robust ABS housing ensures reliable operation in various indoor and outdoor environments, capable of withstanding dust and water ingress.
- Blue Backlit Keypad: Offers clear visibility in low-light conditions, with the option to disable the backlight via a keypad menu.
- Expandable Relay Outputs:
- 1 built-in relay (2A / 24 AC/DC) for primary door control.
- Expandable via RS485 interface to 2 relays (with RU2 or DINRTT), 3 relays (with RU2, DINRTT), or up to 9 relays (with RB0408 I/O board) for multi-door or auxiliary control.
- Anti-Tamper Protection: Built-in tamper detection enhances security against unauthorized removal or damage.
- Keypad Blocking: Automatically blocks the keypad for 30 seconds after 8 consecutive incorrect code or card entries, deterring brute-force attempts.
- Adjustable Relay Time: Supports Latch mode or Pulse mode with adjustable pulse duration from 1 to 99 seconds.
Full Description
Versatile Standalone Access Control with Expandable Relay Options
The XPR MTPADP series offers a robust and elegant solution for standalone access control, combining a backlit keypad with an integrated RFID reader. Available in stylish black (MTPADPBK-EH-SA) or silver (MTPADPS-EH-SA) ABS housing, this weatherproof (IP65 rated) unit supports up to 1000 users with codes or EM and HID 125 kHz compatible cards. Its built-in relay and RS485 interface provide a powerful, expandable solution for diverse access control needs.
Key Features of the XPR MTPADP Series:
- Dual Technology Access: Supports both keypad (PIN codes) and RFID proximity cards (EM4100 or HID 125 kHz compatible) for flexible user authentication.
- High User Capacity: Stores up to 1000 users, accepting various combinations of codes, cards, or both.
- Integrated Relay: Features a built-in 2A/24 AC/DC relay for direct control of a single door or gate.
- Expandable Relays via RS485: An RS485 interface allows connection to external I/O boards, expanding relay outputs:
- Up to 2 relays with RU2 or DINRTT.
- Up to 9 relays with the RB0408 I/O board.
- Blue Backlit Keypad: Provides excellent visibility in low-light conditions, with the option to easily disable the backlight.
- Intuitive LED Status Indicators:
- Green LED: Indicates relay status (active/inactive).
- Orange LED: Shows programming status.
- Red LED: Indicates status of a second output (e.g., Output 2 in DINRTT and RU2 configurations).
- Weatherproof (IP65): Robust ABS housing ensures reliable operation in various indoor and outdoor environments.
- Stylish Design: Part of the XPR “Black Edition” or available in silver, offering a modern and elegant aesthetic.
- Tamper Protection: Built-in tamper alarm for enhanced security.
- Keypad Blocking: Automatically blocks the keypad for 30 seconds after 8 consecutive incorrect code or card attempts, deterring brute-force attacks.
- Adjustable Relay Time: Supports both latch mode and pulse mode (1-99 seconds) for flexible door/gate control.
Versions:

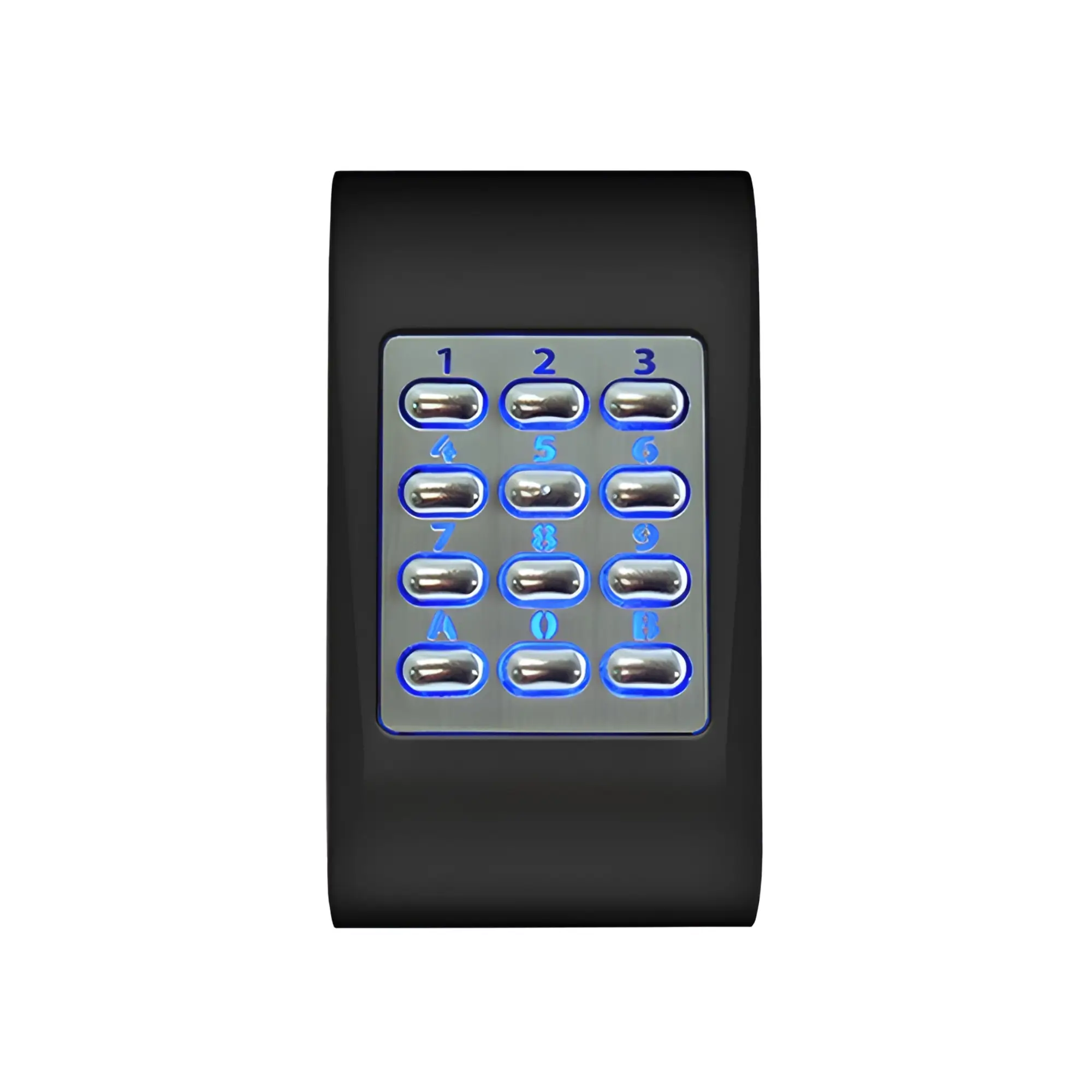

- XPR MTPADPBK-EH-SA – Black

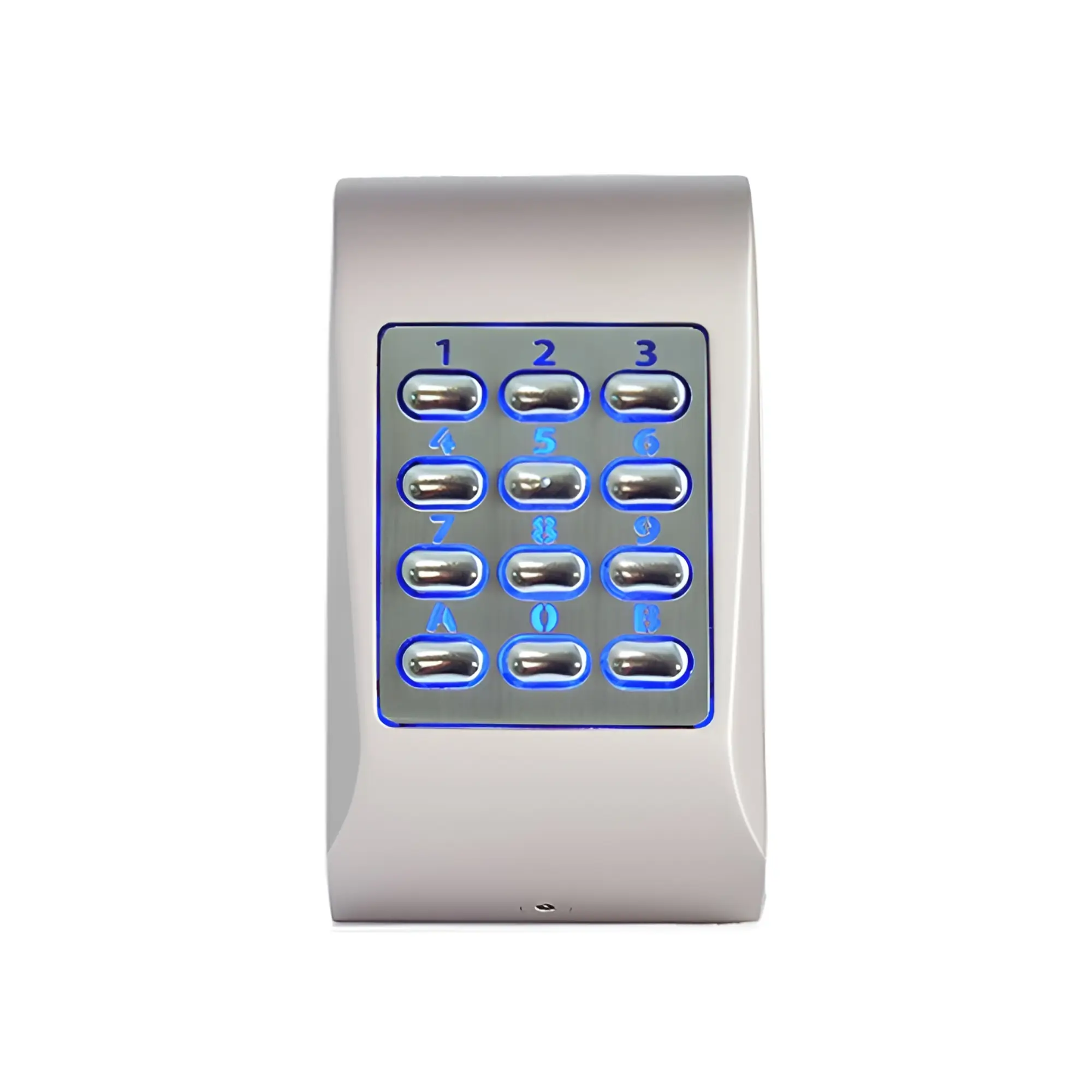

- XPR MTPADPS-EH-SA – Silver
Technical Specifications:
- Technology: Keypad + RFID (EM4100 or HID 125 kHz compatible)
- User Capacity: 1000 (codes, cards, codes or cards, codes and cards)
- Mounting: Surface
- Housing Material: ABS
- Colours: Black (XPR MTPADPBK-EH-SA) / Silver (XPR MTPADPS-EH-SA)
- Keys: Blue backlit keys
- Read Range: Up to 4 cm
- Built-in Relay Output: 1 (2 A / 24 AC/DC)
- Expandable Relay Outputs: Up to 9 with RB0408, 3 with RU2/DINRTT, 2 with RTT.
- RS-485 Interface: One, for remote relay module connection
- Relay Time: Latch or pulse mode (1-99 s)
- Visible Signals: Green LED (relay status), Orange LED (programming status), Red LED (Relay Status Output 2)
- Audible Signal: Buzzer
- Push Buttons: 1
- Tamper Protection: Yes
- Wiring: 50 cm cable
- Voltage: 12-24 V AC/DC
- Consumption: Max. 100 mA
- IP Rating: IP65
- Dimensions (L x H x W): 51 x 92 x 27 mm
- Weight: 130 g
- Operating Temperature: -20ºC to +50ºC
- Operating Humidity: 5% to 95% RH without condensation
- Download Full Data Sheet
Benefits:
- Comprehensive Access Control: Offers multiple credential options (PIN, RFID card) in one compact unit.
- High Security & Durability: Weatherproof IP65 rating, tamper protection, and keypad blocking ensure reliable operation and deter unauthorized access.
- Installation Flexibility: Suitable for both indoor and outdoor use with surface mounting and various colour options.
- Scalable Control: Built-in relay with easy expansion via RS485 allows for control of multiple doors or devices.
- User-Friendly: Backlit keypad and clear LED indicators provide intuitive operation and status feedback.
- Cost-Effective: A standalone solution that can be expanded as needs evolve, providing excellent value.
Ideal Applications of the XPR MTPADP Series:
- Small to medium-sized businesses and offices.
- Residential properties and apartment complexes.
- Warehouses and storage facilities.
- Garages and car parks.
- Any single-door access point requiring secure entry via keypad and/or proximity card, especially in outdoor or challenging environments.
Product Specifications
| Weight | 130 g |
|---|---|
| Dimensions | 51 × 92 × 27 mm |
| Brand | XPR |
| Device Type | Keypad, Reader |
| Reader and Card Technology | EM Proximity (125 kHz), HID Prox (125 kHz) |
| Operating Temperature | -20°C to 50°C |
| Power Requirement | 12-24 VDC |
| Construction | ABS |
| Frequency | 125 kHz (RFID) |
| Mounting | Surface Mount |
| Protection Rating | IP65 |
| Colours | Black, Silver |
| SKU | XPR-MTPADPBK-EH-SA, XPR-MTPADPS-EH-SA |
