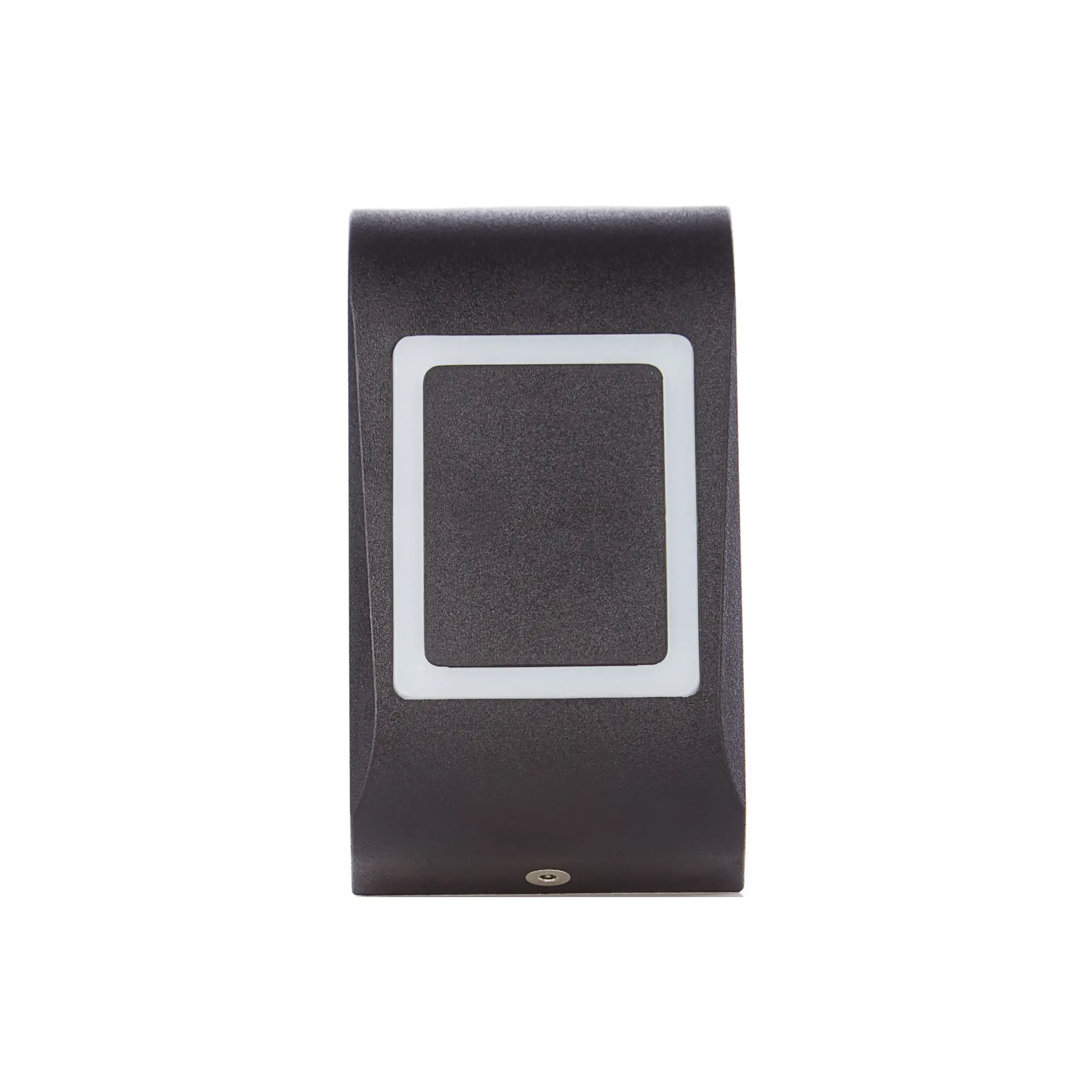

XPR MTPXBK-MF-SA: Offline MIFARE Access Reader For Hotels – Black Edition

Full Description

Cost-Effective & Secure Offline MIFARE Reader for Hotels and Offices

The XPR MTPXBK-MF-SA is a compact and versatile Offline MIFARE Reader that offers a secure and low-cost access control for hotels and other single-door applications. This standalone unit, known as the XPR MINI Reader in its black edition, provides a complete and reliable access solution without the need for a constant network connection. It features a Mifare read/write RFID reader and is easily programmed using either a built-in micro-USB connector or through pre-programmed Mifare cards, making on-site management simple and efficient.

Key Features of the XPR MTPXBK-MF-SA:

• Offline Access Control: The MTPXBK-MF-SA operates as a completely standalone system, eliminating the need for complex network wiring. Events can be collected and new users can be added by simply using pre-programmed master cards.
• MIFARE Technology: Supports Mifare Classic 1K and 4K memory cards, allowing for robust and secure access control. The “credit on-card” option provides a flexible solution for managing paid services or limited-time access.
• Flexible Programming: Offers two convenient programming methods:
  1. Micro-USB Connection: Program the MTPXBK-MF-SA reader directly from a PC using the software and the built-in micro-USB connector.
  2. Card Configuration: Create programming cards from the software and use them to easily initialise, configure, and collect events from the readers on-site.
• Visual Status Indicators: A large, multi-colour LED around the sensor provides clear visual feedback:
  • Green LED: Access granted
  • Orange LED: Idle mode
  • Red LED: Access denied
• High-Capacity Memory: Stores up to 3500 events, which can be downloaded onto a master Mifare card for review. It also has an impressive 500-card blacklist capacity.
• IP65 Rated Housing: The durable ABS housing has an IP65 rating, making it suitable for both indoor and outdoor applications as it is protected from dust and water jets.
• Integrated Relay: Features a built-in relay (2 A; 24 V AC/DC) with a configurable trigger time (1-255s or toggle) for direct lock control.
• Scheduling: Supports up to 4 definable lock/unlock schedules based on the time and day of the week.
• Tamper Protection: The MTPXBK-MF-SA includes a tamper switch for enhanced physical security.
• Exit Button Input: A dedicated input allows for the connection of an external exit button for convenient egress

Technical Specifications:

• Mounting: Surface
• Housing: ABS
• Technology: MIFARE Classic 1K, 4K
• Dimensions (L x H x W): 51 x 92 x 25 mm
• Weight: ~0.15 kg
• Read Range: Up to 6 cm
• Events Memory: 3500 events
• Blacklist Capacity: 500
• Users: Unlimited
• Connectivity: USB micro connector for data transfer and configuration
• Voltage: 12 V DC
• Consumption: Max 150 mA
• IP Rating: IP65
• Operating Temperature: -20ºC to 50ºC
• Operating Humidity: 5% to 95% RH (non-condensing)
• Output: 1 built-in relay (2 A; 24 V AC/DC) or RS-485 for remote relay units
• See Full Data Sheet

Benefits of XPR’s MTPXBK-MF-SA Surface Mounted Mifare Reader:

• Cost-Effective Solution: Provides a secure and reliable access control system without the expense of networking infrastructure or expensive software licenses.
• Simplified Management: Ideal for applications like hotels, where staff can program new guest cards and manage access directly from a central PC, while events can be collected at their convenience.
• Versatile Use: The IP65 rating and durable housing make it suitable for a wide range of environments, from hotel rooms to office doors.
• Intuitive User Experience: The multi-colour LED and audible buzzer provide clear feedback to both users and installers.
• Robust & Secure: Despite being a standalone system, it offers key security features like event memory, a blacklist, and tamper protection.

Ideal Applications:

• Hotels and Guest houses: Provides a cost-effective and easy-to-manage system for guest access to rooms.
• Offices & Residential Buildings: A simple yet secure solution for single-door access.
• Storage Units or Lockers: Offers a reliable way to manage access to individual units.
• Any application requiring a secure, standalone, and visually discreet access control solution.
