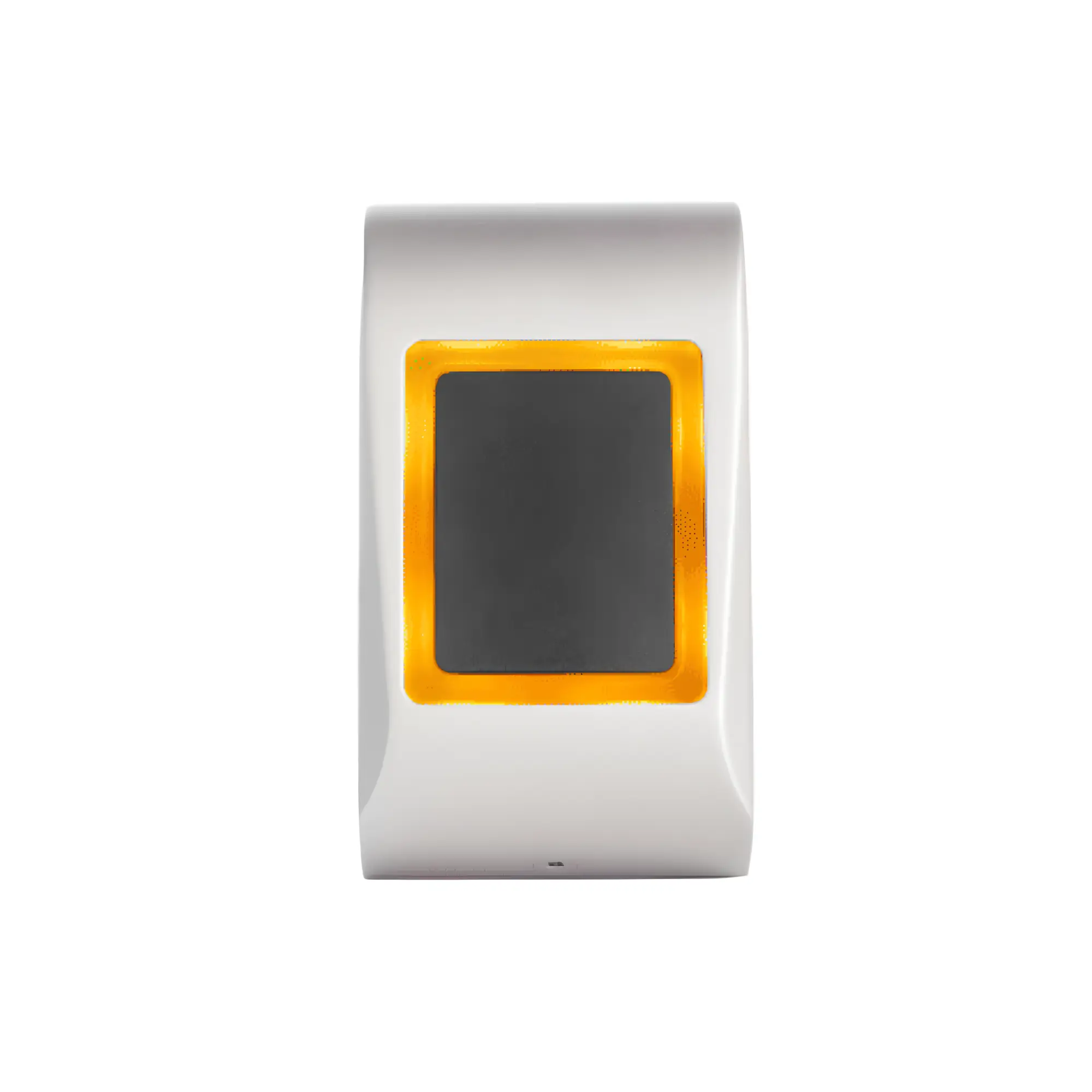

XPR MTPXS-MF-SA: OFFline MIFARE Reader in Silver

Full Description

Offline Surface Mount MIFARE Reader with USB/Card Programming

The XPR MTPXS-MF-SA is a versatile and compact OFFline MIFARE Reader designed for surface mount access control solutions. This standalone unit provides a reliable and secure system that can be programmed and managed without a constant network connection. It features a Mifare read/write RFID reader and can be easily configured via a built-in micro-USB connector or through pre-programmed Mifare cards. The reader’s multi-colour LED and robust IP65 rating make it suitable for a wide range of indoor and outdoor applications.

Key Features of the XPR MTPXS-MF-SA:

• Offline Operation: the XPR MTPXS-MF-SA Functions independently without a constant network connection, making it an ideal solution for remote or non-networked sites.
• MIFARE Read/Write Technology: Supports MIFARE Classic 1K and 4K memory cards and allows for the use of credit on-card options with software configuration.
• Flexible Programming: Can be easily configured via a built-in micro-USB connector for PC-based programming or by using pre-programmed cards created with the software.
• Visual Status Indicators: A large, multi-colour LED provides clear visual feedback:
  • Orange LED: Idle mode
  • Green LED: Access granted
  • Red LED: Access denied
• Durable and Weather-Resistant: The ABS housing has an IP65 rating, protecting the reader from dust and water jets, making it suitable for both indoor and outdoor use.
• Ample Memory: Stores up to 3500 events in its memory and has a 500-card blacklist capacity.
• Unlimited Users: Can manage an unlimited number of users.
• Integrated Relay: Features a built-in relay with adjustable trigger time (1-255s or toggle mode) for direct lock control.
• Time-Based Schedules: The MTPXS-MF-SA supports up to 4 definable lock/unlock schedules based on time and day of the week.
• Tamper Protection: Includes tamper protection for enhanced physical security.
• Exit Button Input: Has a dedicated input for connecting an external exit button.
• Audible Signal: An internal buzzer provides an audible signal for user feedback.

MTPXS-MF-SA Technical Specifications:

• Mounting: Surface
• Housing: ABS
• Technology: MIFARE Classic 1K, 4K
• Dimensions (L x H x W): 51 x 92 x 25 mm
• Weight: ~0.15 kg
• Read Range: Up to 6 cm
• Events Memory: 3500 events
• Blacklist Capacity: 500
• Users: Unlimited
• Connectivity: USB micro connector for data transfer and configuration
• Voltage: 12 V DC
• Consumption: Max 150 mA
• IP Rating: IP65
• Operating Temperature: -20ºC to 50ºC
• Operating Humidity: 5% to 95% RH (non-condensing)
• Output: 1 built-in relay (2 A; 24 V AC/DC) or RS-485 for remote relay units
• See Full Data Sheet

Benefits of XPR’s OFFline MIFARE Reader:

• Simple and Secure: Provides a reliable standalone access control system without the need for complex network infrastructure.
• Flexible Management: Easy to program with either a PC and USB connection or with programming cards, offering convenience on site.
• Durable and Versatile: The robust IP65 rating and wide operating temperature range make it suitable for a variety of environments.
• Clear User Feedback: The multi-colour LED and audible buzzer provide clear and intuitive feedback to users.
• Scalable Solution: Although offline, events and configurations can be managed via cards, allowing for easy updates and data collection across multiple readers.

Ideal Applications:

• Small to medium-sized offices and commercial buildings.
• Apartment buildings and residential complexes.
• Warehouses, storage facilities, or other remote sites without network connectivity.
• Any indoor or outdoor location requiring a secure and easy-to-manage offline access control solution.
