XPR XPM-MF Series: Slim 13.56 MHz RFID Reader (Weigand or OSDP Output)
The XPR XPM-MF-X is a slimline 13.56 MHz RFID reader from the XPRO Series, designed for modern access control systems requiring a discreet yet powerful solution. Compact and elegant, this mullion-mount reader supports Mifare CSN, DESFire, and Xsecure encrypted credentials, offering secure authentication for a wide range of applications. Compatible with both Weigand and OSDP communication, the XPM-MF-X delivers flexibility, high performance, and long-term reliability for installers and system integrators.
Technical Specifications:
- Mounting: Surface-mounted
- Housing: Polycarbonate copolymer (UL94)
- Internal buzzer: Volume adjustable via software
- Protocol: Wiegand, OSDP
- Read range: Up to 9 cm (depending on card type and size)
- Operating frequency: 13.56 MHz
- Tamper protection: Yes
- Wiring: Terminal block (standard)
- Operating voltage: 9 – 15 V DC
- Max. current consumption at 12 V DC: 100 mA
- Supported credentials: Xsecure, Mifare CSN (Classic, DESFire, Plus, Ultralight), Mifare DESFire (EV1, EV2, EV3)
Pack Contents
- 1 × XPR XPM-MF-X RFID Reader
- 1 × Mounting kit and screws
- 1 × Quick installation guide
- 1 × Xsecure® key
Full Description
High-Security, Mullion-Style Reader for PROS CS Systems with Xsecure Encryption
The XPM-MF XPRO Series reader combines advanced RFID technology with a sleek, space-saving design, making it ideal for installations where aesthetics and performance matter equally. Supporting 13.56 MHz contactless credentials, the reader works seamlessly with PROS CS client-server software and EWS controllers to provide secure, scalable, and network-based access control.
Configuration and firmware updates can be managed easily via PROS CS software through the rear USB-C port or using a programming card. The XPM-MF-X variant comes preconfigured with added Xsecure encryption, ensuring every credential is unique, tamper-resistant, and spoof-proof. With robust construction (IP65, IK11) and a wide operating temperature range, the reader is suitable for both indoor and outdoor environments.
Whether used in corporate offices, educational institutions, or residential developments, the XPM-MF-X offers installers a dependable and future-ready access control reader that combines security, flexibility, and modern styling.
XPR Pro XPM-MF Series – Slim 13.56 MHz RFID Reader (Weigand Output with Xsecure® Encryption)
- Enhanced security version with Xsecure® encryption
- Each credential is uniquely diversified and tamper-protected
- Fully compatible with Mifare CSN and DESFire EV1/EV2/EV3 cards
- Ideal for sites requiring advanced data protection and cloning prevention
- Supplied with Xsecure® key for secure configuration – XPM-MF-X only
Key Features of The XPM-MF-X

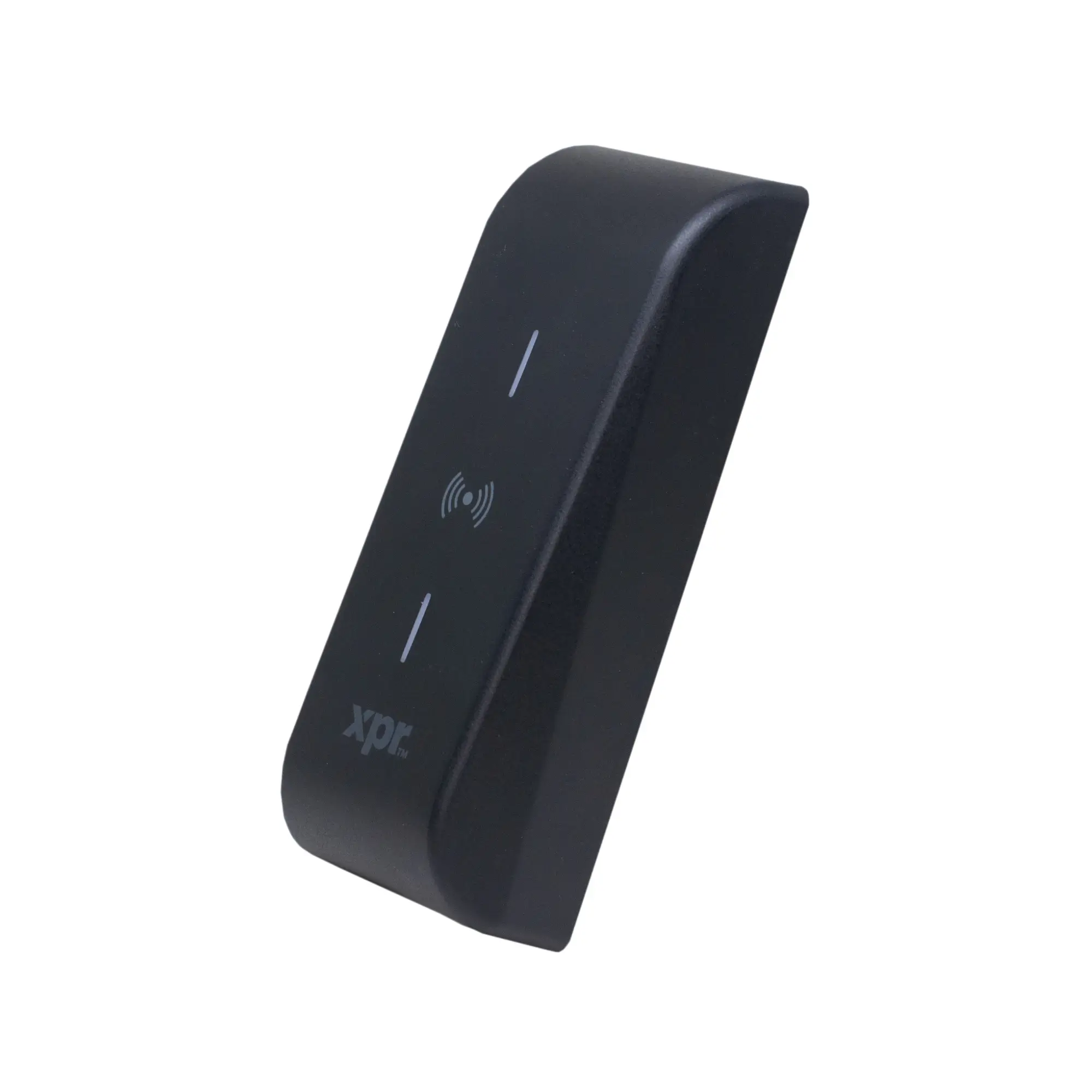

- Slim Mullion Design: Compact dimensions (113 x 42 x 27 mm) make it ideal for surface mounting on door frames (mullions) where space is limited.
- High-Security Protocols: Supports a wide range of secure credentials, including Mifare DESFire (EV1, EV2, EV3), and offers the industry-leading Xsecure® custom encryption.
- Flexible Communication: They can interact with Wiegand, OSDP, and RS485 protocols as well as read credentials at 13.56 MHz.
- Remote Programming: Settings and firmware updates can be configured remotely using the PROS CS software via the Micro-USB port (USB-C) or by using a programming card.
- Durable & Weatherproof: The polycarbonate copolymer housing is IP65 rated (resin-potted), making it suitable for both indoor/outdoor use. It also boasts a high IK11 impact resistance rating.
- User Feedback: Features an internal, software-adjustable buzzer and clear LED indicators:
- Blue LED: Standby mode

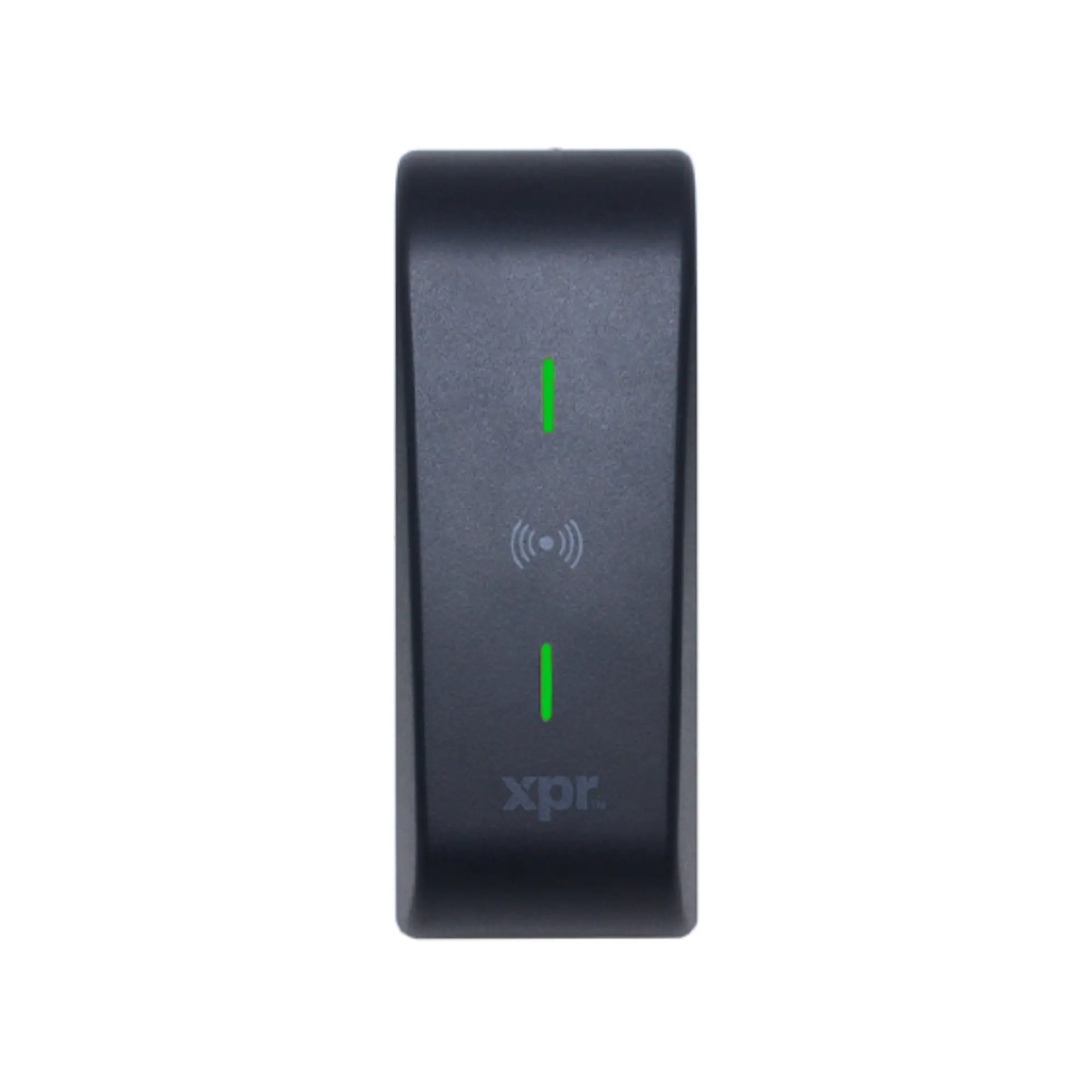

- Green LED: Access granted

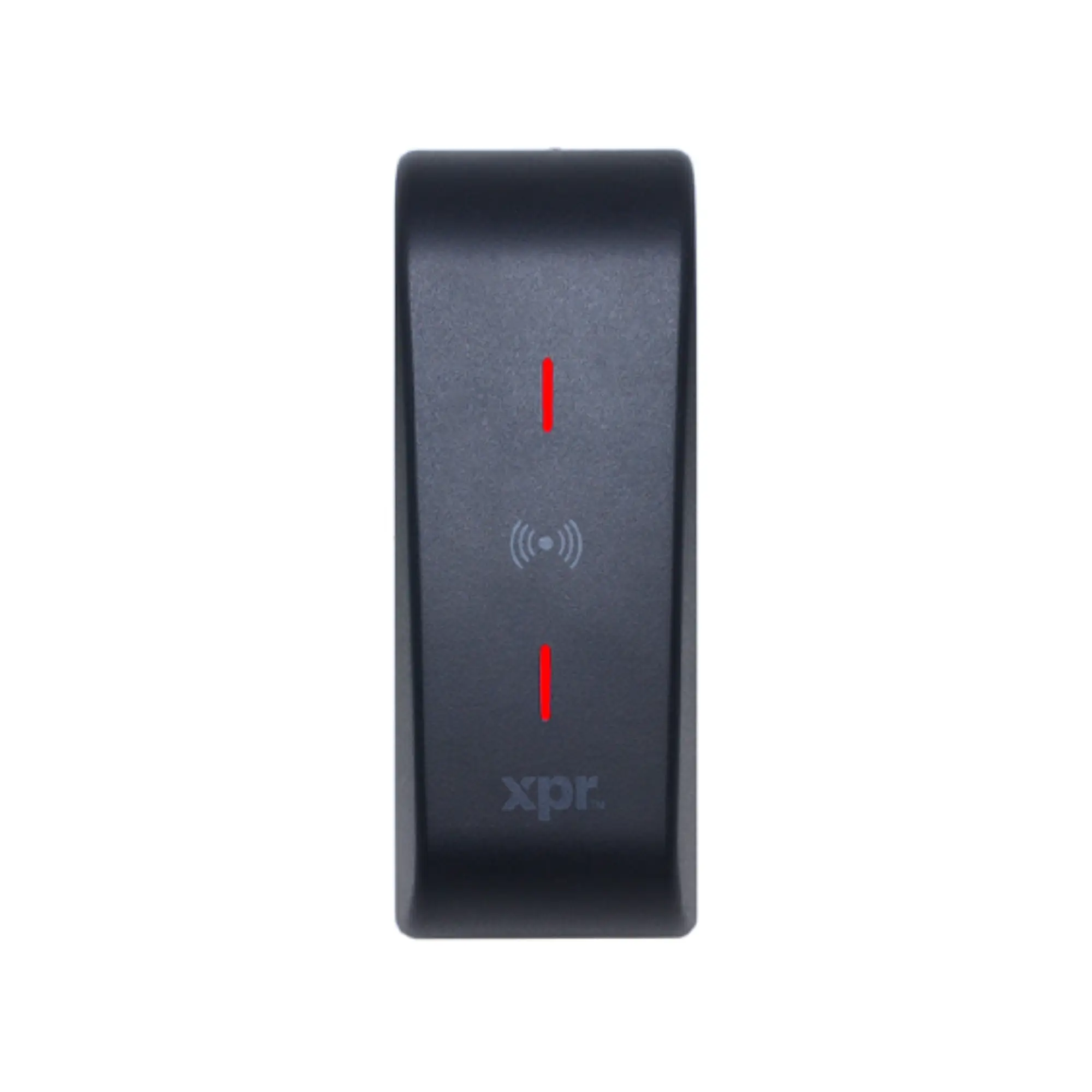

- Red LED: Access denied
- Anti-Tamper Protection: Built-in tamper protection signals any attempt to physically interfere with the reader.
- Wide Voltage Range: Operates reliably across a 9–15 V DC voltage range.
Technical Specifications
- Operating Frequency: 13.56 MHz
- Communication Protocol: Weigand (standard), OSDP (optional)
- Read Range: Up to 9 cm (depending on card type and size)
- Supported Credentials:
- Xsecure®
- Mifare CSN (Classic, DESFire, Plus, Ultralight)
- Mifare DESFire EV1, EV2, EV3
- Operating Voltage: 9 – 15 V DC
- Max. Current Consumption: 100 mA @ 12 V DC
- Protection Rating: IP65 (resin-potted)
- Impact Resistance: IK11
- Operating Temperature: -30 °C to +70 °C
- Humidity: 0 % – 95 % (non-condensing)
- Dimensions: 113 × 42 × 27 mm
- Weight: Approx. 0.10 kg
- Housing Material: Polycarbonate copolymer (UL94-rated)
- Connections: Power, RS-485, Wiegand D0/D1, LED/buzzer control, tamper switch, USB-C
- See Full Data Sheet
Benefits of the XPM-MF-X XPRO Series
- Compact and elegant design suited to narrow frames and mullion mounts
- Seamless integration with XPR PROS CS access control software
- Flexible communication protocols for diverse system compatibility
- Secure encryption and anti-cloning protection with Xsecure®
- Simple configuration and updates via USB-C or programming card
- Built for durability and outdoor resilience (IP65, IK11)
- Ideal for both retrofit and new-build installations
Ideal Applications
- Commercial offices and multi-tenant buildings
- Educational institutions and campuses
- Healthcare facilities and laboratories
- Government and municipal buildings
- Residential and smart-building developments
- Access control points requiring a slim or mullion-mount reader
Product Specifications
| Brand | XPR |
|---|---|
| Device Type | Reader |
| Reader and Card Technology | Mifare / Desfire CSN Only, Xsecure |
| Operating Temperature | -30°C to 70°C |
| Power Requirement | 10-15 VDC |
| Construction | ABS |
| Frequency | 13.56 MHz |
| Mounting | Surface Mount |
| Protection Rating | IP65, IK11 |
| Series | Xpro |
| Form Factor | Mullion |
| SKU | XPR-XPM-MF, XPR-XPM-MF-VP |
