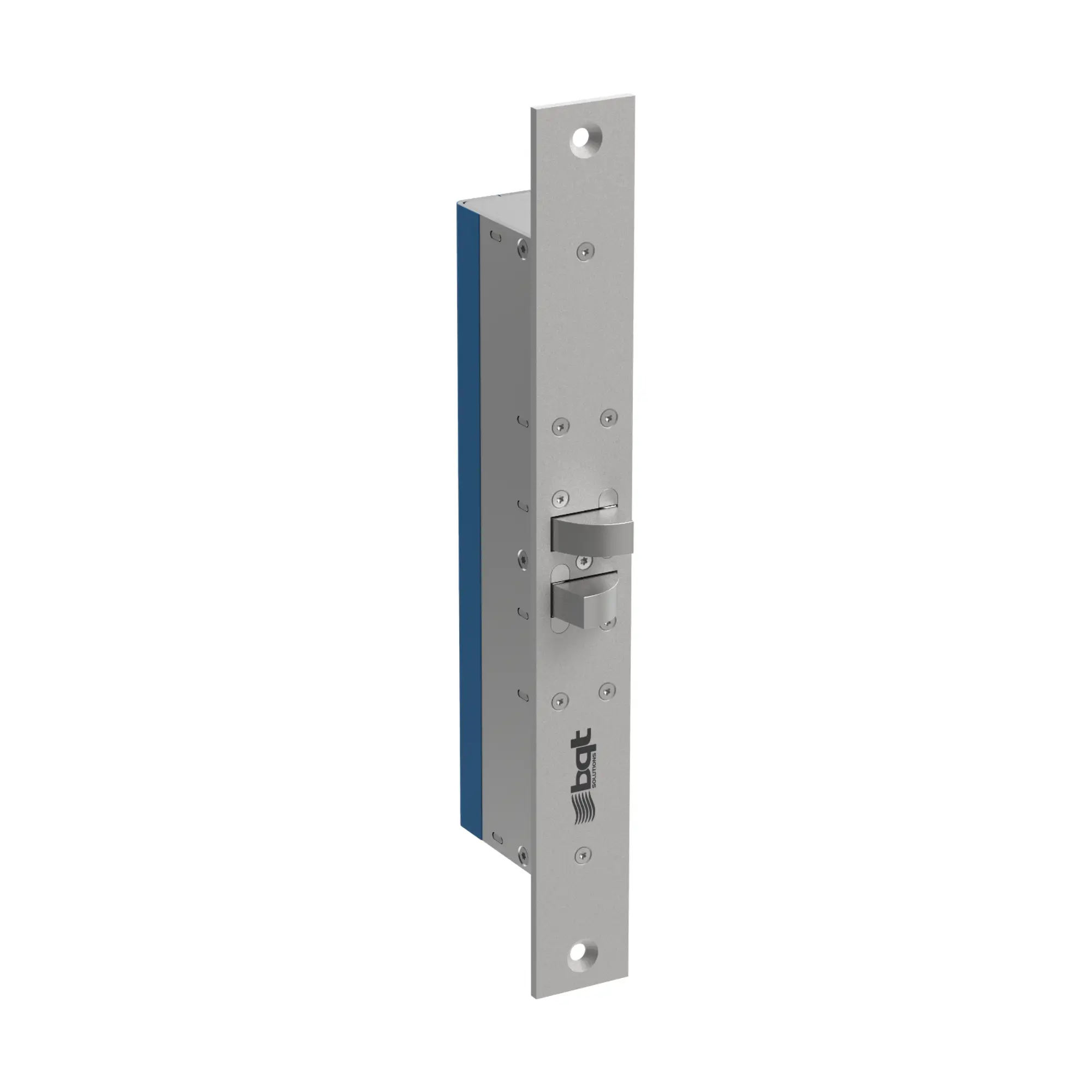

BQT YD30D Motorised Side-Load Lock For Swing-Through And Single Swing Doors

The YD30D Cobalt sets a new standard for electronic door locks. This innovative system delivers unmatched security, automatic misalignment correction, secure sideload release, and versatile installation options. The BQT YD30 is the ideal solution for demanding applications where exceptional performance and reliability are paramount.

Key Features:

  • High-Security Locking: Two 10mm thick stainless steel bolt pins provide a holding force exceeding 10,000N, ensuring exceptional security.
  • Automatic Misalignment Correction: The Cobalt’s unique pivot action automatically corrects misalignment up to 8mm in either direction, guaranteeing a secure lock even on imperfect door frames.
  • Secure Sideload Release: The collapsing mechanism unlocks reliably even with a forceful push (up to 1,000N) on the door, ensuring a safe exit.
  • Complete Monitoring: The YD30D Cobalt provides both door position and bolt position as monitor signals, offering comprehensive system control.
  • Low-Current Consumption: Draws minimal power (40mA standby, 300mA operation) for energy-efficient operation.
  • Integrated Access Control: Selectable fail-safe and fail-secure modes, along with multiple lock/unlock attempts, allow for seamless integration with various access control systems.
  • Versatile Installation: Includes fitting tabs for mortise mounting in both the side and top of door frames. Optional housing and dress plate enable surface mounting for broader application, including glass doors.

Full Description

Superior Door Locking with Automatic Misalignment Correction and Secure Sideload Release

The BQT YD30D Cobalt, is a motorised double action side-load lock for swing-through and single swing doors, revolutionises door security with its innovative design and unparalleled functionality. This advanced electronic lock system addresses the two biggest challenges in door locking: misalignment and unlocking under excessive load.

Key Features of the BQT YD30D:

  • High-Security Locking: Two 10mm thick stainless steel bolt pins provide a holding force exceeding 10,000N, ensuring exceptional security.
  • Automatic Misalignment Correction: The Cobalt’s unique pivot action automatically corrects misalignment up to 8mm in either direction, guaranteeing a secure lock even on imperfect door frames.
  • Secure Sideload Release: The collapsing mechanism unlocks reliably even with a forceful push (up to 1,000N) on the door, ensuring a safe exit.
  • Complete Monitoring: The Cobalt provides both door position and bolt position as monitor signals, offering comprehensive system control.
  • Low-Current Consumption: Draws minimal power (40mA standby, 300mA operation) for energy-efficient operation.
  • Integrated Access Control: Selectable fail-safe and fail-secure modes, along with multiple lock/unlock attempts, allow for seamless integration with various access control systems.
  • Versatile Installation: Includes fitting tabs for mortise mounting in both the side and top of door frames. Optional housing and dress plate enable surface mounting for broader application, including glass doors.
  • See Full Data Sheet

Benefits of the BQT YD30D Cobalt:

  • Enhanced Security: Superior holding force, automatic misalignment correction, and secure sideload release provide unmatched security.
  • Simplified Installation: Multiple mounting options offer flexibility for various door types and applications.
  • Reduced Maintenance: Automatic misalignment correction minimizes the need for manual adjustments.
  • Improved Safety: Reliable unlocking even under pressure ensures safe egress.
  • Peace of Mind: Comprehensive monitoring and integrated access control enhance system security.
  • Energy Efficiency: Low-current consumption minimizes power usage.

Ideal Applications:

  • Office Buildings: Ensure the highest level of security for entrances, exits, and sensitive areas.
  • Retail Stores: Secure access points while facilitating safe customer exits.
  • Educational Facilities: Enhance security in classrooms, dormitories, and restricted areas.
  • Hospitals and Healthcare Facilities: Safeguard patient care areas and control access to vital equipment.
  • Leisure and Hospitality Facilities: Combine high security with reliable unlocking for a secure and welcoming environment.

Technical Specifications:

  • Door Gap: Maximum 6mm
  • Static Strength: 10,000N (1,000Kg)
  • Sideload (Release on Request): 1,000N (100Kg)
  • Endurance: Cycle tested to 300,000 operations
  • Bolt Pin: (2 pieces) Ø10mm thick, 13mm extension, Ø14.2mm receiver
  • Alignment: ±8mm misalignment correction
  • Voltage at Lock: 12-24VDC ±15%
  • Current Usage: Holding: 40mA@12V, 30mA@24V Maximum: 1.0A@12V, 0.5A@24V
  • Monitor Switch Ratings: 24VDC, 0.5A
  • Materials: Lock/Strike Plate: Stainless Steel 304, Bolt Pin: Stainless Steel 17-4PH
  • Compliance and Certification: CE Compliant, RoHS 2 Compliant, FCC Part 15 Compliant, EN 14846:2008 Certified, Suitable for use on fire-resistant door sets
  • Lock Variants: YNL200H – Lock with Long Strike Plate
  • Accessories: YNL203H – Long Strike Plate, YNL204J – Housing, YNL206J – Dress Plate



See All Locking Hardware

Product Specifications

Weight 600 g
Brand

BQT Solutions

Construction

Stainless Steel

Mounting

Flush Mount

Power Requirement

12-24 VDC

Lock Options

Monitored

Safety Features

Fail-Safe, Fail-Secure

SKU SRB-YNL-200H

Downloads

Datasheet

1.03 MB

Download

Cobalt YD30 Installation Manual

1.02 MB

Download
