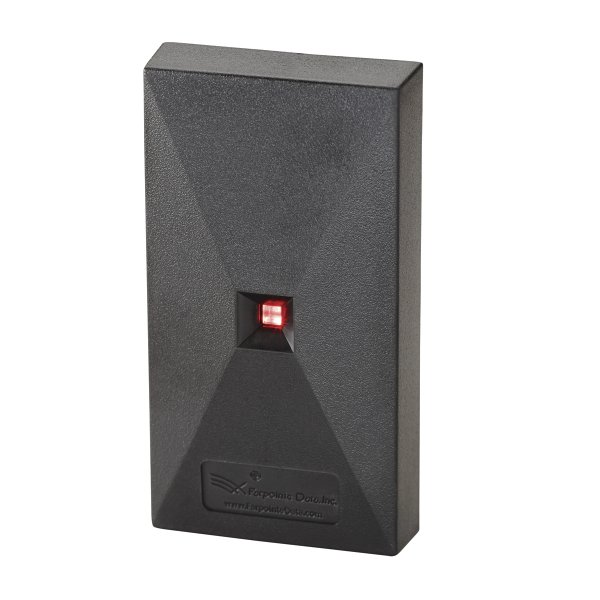

Farpointe Data P-300-H Cascade Reader for Pyramid proximity credentials, Smart R Max Secure keys (standard keys also available) & certain HID proximity & compatible credentials

The Farpointe Data P300-H reader can read Pyramid series cards AND HID Prox technology cards.  It combines multiple configuration options with an attractive, inconspicuous design and economical price.
  • Slim and compact, low cost reader, 3.2 x 1.7 x 0.7 inches (80 x 43 x 17 mm)
  • Read range of up to 6 inches (150mm).
  • Operates on 5-16VDC
  • P-300-H is supplied with BOTH black and off-white covers as standard to allow you to select the best finish at the time of installation
  • Programmable beeper and multi-colour LED which can be host and / or locally controlled
  • Potted construction makes it suitable for indoor or outdoor use
  • 45 cm pigtail cable as standard
  • Designed for mounting directly onto metal with no change in read range performance
  • Simplified mounting using slots rather than holes to make levelling adjustments
  • Available with either Wiegand or Clock-and-Data (magnetic-stripe data) output

Product Specifications

Weight 85 g
Dimensions 81 × 43 × 18 mm

125 KHz

Protection Rating


Power Requirement

5-16 VDC, 75 mA

Operating Temperature

-35°C to 66°C


Black, White


Farpointe Data

SKU P-300-H


Manufacturer's Datasheet

327.81 KB
