Intratone 06-0143: Proximity Reader Kit For Two Doors

Full Description

Secure Cloud-Managed Access for Professional Installations

The Intratone 06-0143 proximity reader kit offers a cost-effective and highly secure solution for managing two independent access points. By utilising an integrated GSM/GPRS data module, this kit bypasses the need for local network infrastructure, allowing for rapid deployment in commercial buildings, gated communities, and residential blocks. The system provides a real-time online management gateway that can be accessed from any web browser, making it easier than ever to maintain site security.

Advanced Security and Clone Protection Security is at the heart of the 06-0143 system. Unlike standard proximity systems, Intratone Mifare tags are designed to be non-duplicable. If an attempt is made to clone a tag, the system automatically sends an email notification to the administrator and suspends the original tag to prevent unauthorised access. Furthermore, the system includes built-in anti-passback features to stop malicious entry through tailgating.

Simplified Remote Maintenance For the installer and property manager, the ability to pull event logs, add or delete proximity fobs, and create timed access parameters remotely is a significant value proposition. The system supports up to 7,000 users and stores a three-month event history. Installation is kept minimal as the GSM controller handles the heavy lifting of communication, meaning no software needs to be installed on a local PC.

Why Choose Intratone from Smart R Distribution? We provide genuine Intratone hardware with full technical support for UK installers. This kit comes with 10 years of free data, ensuring your customers enjoy long-term value without the worry of monthly subscription fees for the data link.

Key Features Of The Intratone 06-0143

• 10 Years Free Data: Includes a pre-paid data service for seamless cloud connectivity.
• Remote Online Management: Full system configuration from any internet-connected device.
• Non-Duplicable Tags: Advanced Mifare technology with automatic suspension for cloned fobs.
• High User Capacity: Robust memory supports up to 7,000 unique users.
• Anti-Passback Security: Prevents multiple entries using a single tag to stop tailgating.
• Real-Time Event Logs: Stores up to three months of activity with easy remote retrieval.
• Email Alerts: Stay informed with instant notifications for security breaches or system events.
• Expandable Architecture: Can be expanded to manage up to four readers using an optional expansion card.

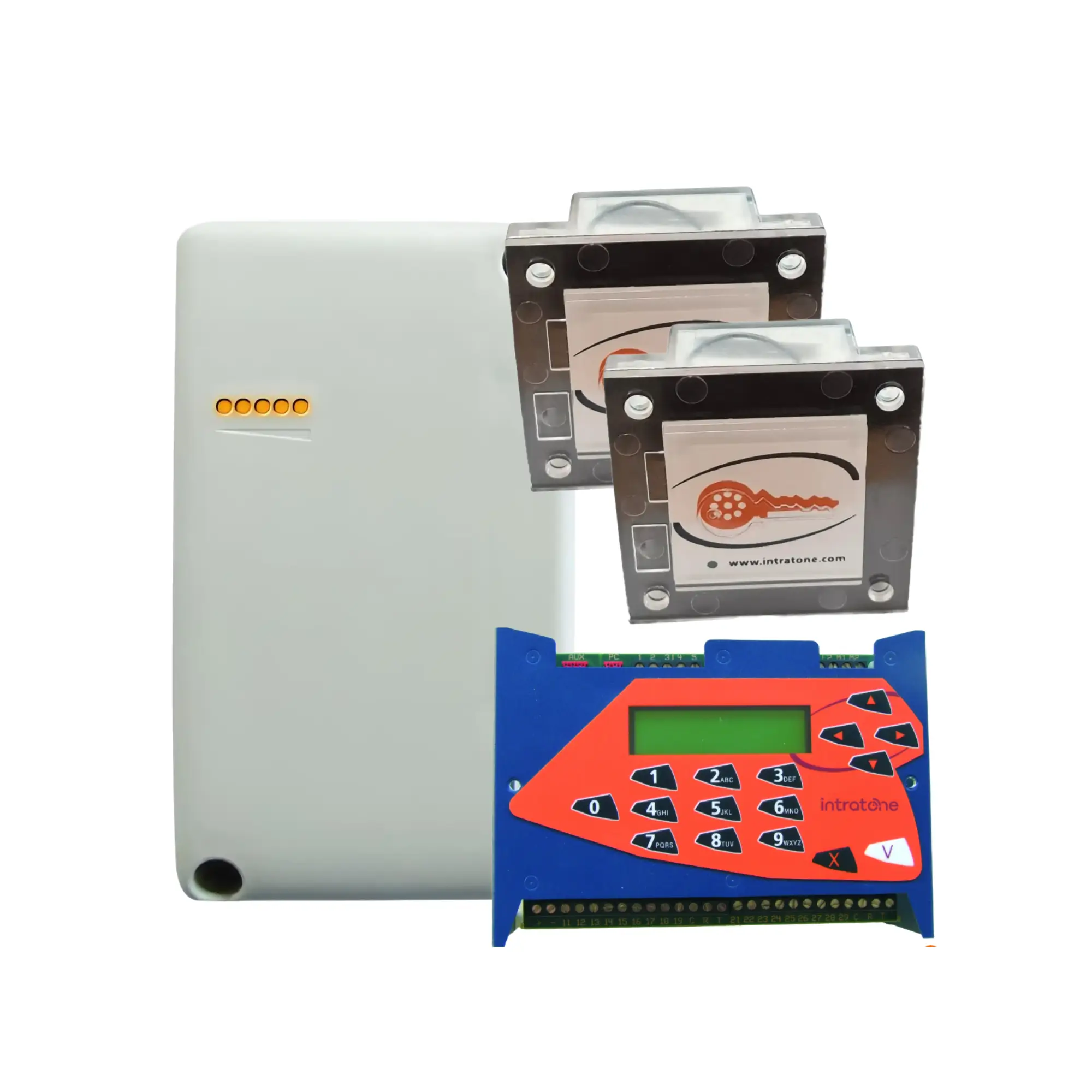

Kit Contents

• 2 x Mifare Proximity Reader (04-0106)
• 1 x 2 door central control unit in blue metal housing (03-0101)

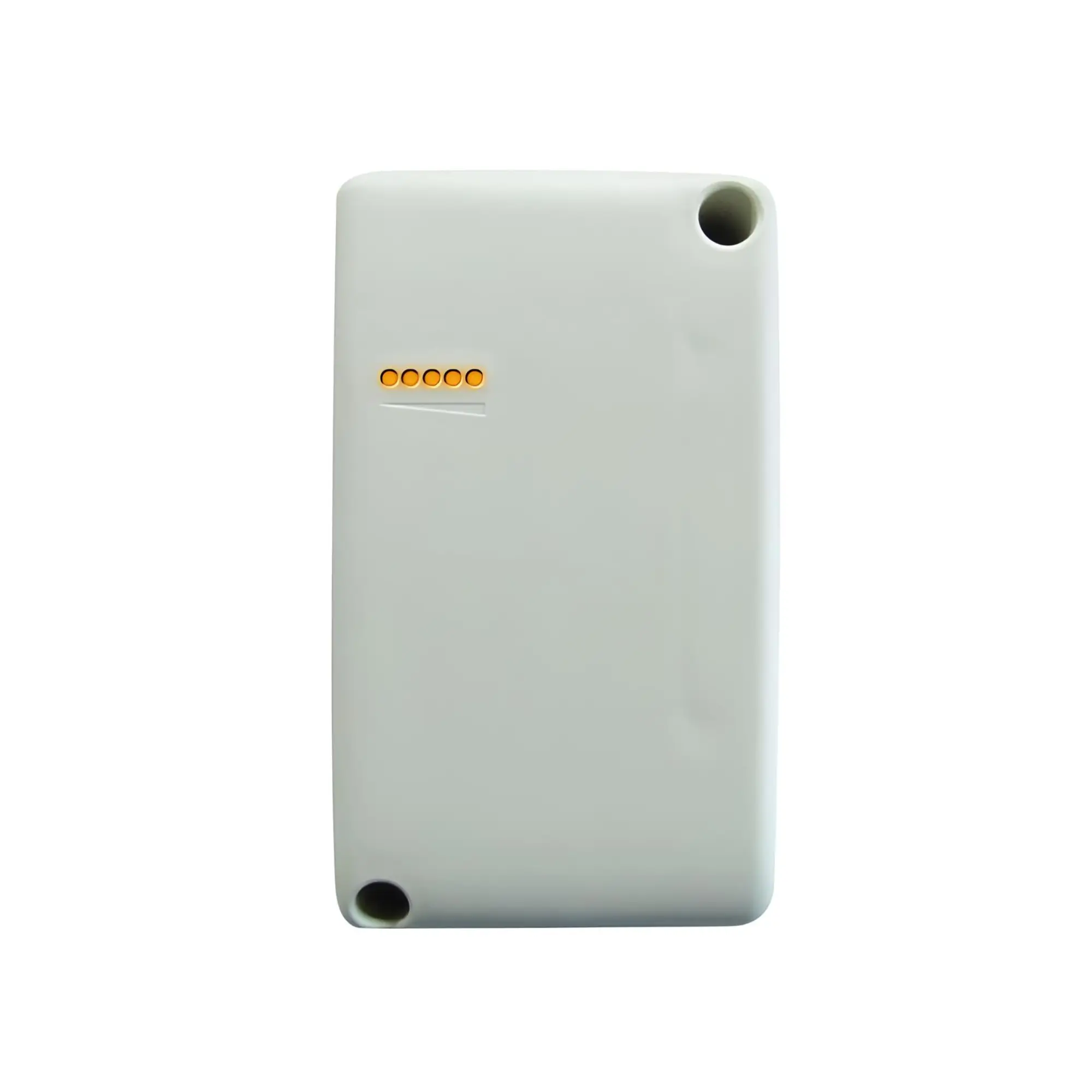

• 1 x 4G Transmission unit (17-0102)

Technical Specifications

• Kit Part Number: 06-0143
• Central Management Unit: 03-0101
• GSM Module: 06-0124 (GPRS connection)
• Proximity Readers: 2 x Mifare Proximity Reader (04-0106)
• Operating Voltage: 12V to 24V AC or DC
• Relay Outputs: 2 x NO / NC
• User Limit: 7,000 Users
• Event Memory: 3 Months
• Environmental Class: Class II
• Mounting: Readers support Flush or Surface mounting (with specific back-box accessories)

Benefits

• Reduced Installation Time: No need for dedicated telephone lines or on-site server hardware.
• No Monthly Data Fees: The 10-year free data package offers massive savings for the end-user.
• Future-Proof Security: Automatic updates over the GPRS connection keep the system current.
• Simplified Management: Fast tag programming using the optional USB programmer for large-scale jobs.

FAQs

Does the 10 years of free data cover the management of the readers? Yes, the kit includes 10 years of free data for the GSM/GPRS module. This covers the communication between the central unit and the online management portal for programming and logging.

What happens if someone tries to copy a proximity fob? The Intratone system detects the cloning attempt immediately. It will automatically suspend the copied tag and send an email alert to the system administrator, ensuring the site remains secure.

Can this kit be used for more than two doors? The standard kit manages two doors. However, by adding the 12-0109 expansion card, the system can be expanded to support up to four readers and four relay outputs.
