Intratone 35-0001: Small Core / Low Rise Kit for up to 10 users

Full Description

Complete Access Control Solution for Small Buildings, Including Relay Card and Transmission Module

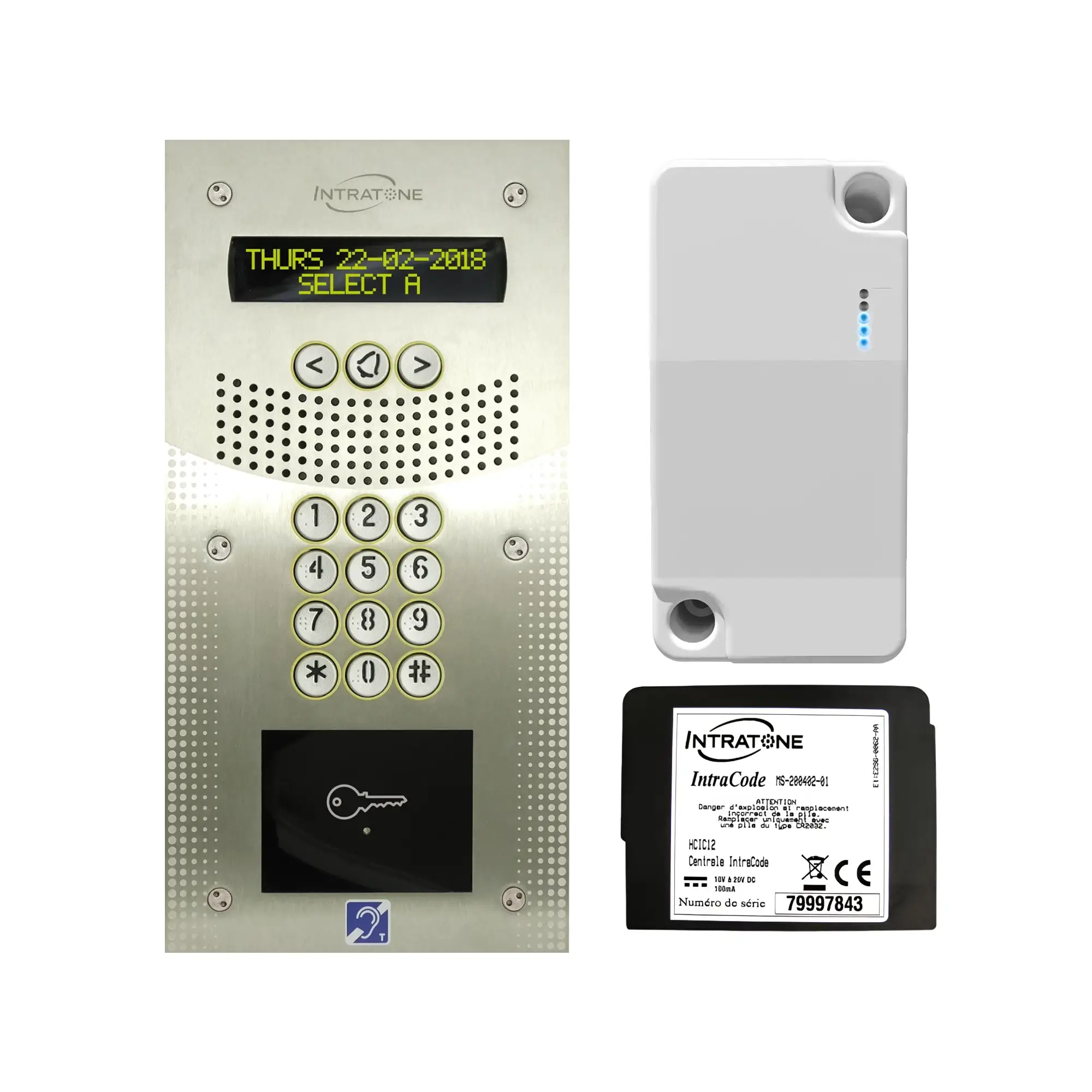

The Intratone 35-0001 is a purpose-built Small Core / Low Rise Kit designed to provide a comprehensive and modern access control solution for buildings with up to 10 users. This kit is ideal for small residential apartment blocks or commercial offices. It includes a sophisticated V4 intercom panel, as well as the necessary relay card and transmission module for seamless, real-time remote management. The panel is a complete access point, featuring an OLED screen, hands-free proximity reader, a coded keypad with Braille, and a pinhole camera.

Key Features OF THE 35-0001:

• Complete All-in-One Kit: The Intratone 35-0001 provides a ready-to-install solution, including the V4 intercom panel, a relay card for lock control, and a transmission module for remote management.
• Remote, Real-Time Management: The 35-0001 system is managed and programmed remotely via the secure www.intratone.info platform. This allows building managers to add/delete users, view event logs, and configure settings from anywhere, in real time.
• Advanced Accessibility: Includes a built-in hearing loop for users with hearing impairments and a simplified call function for visually impaired and elderly people. The coded keypad also features Braille.
• Hands-Free Proximity Reader: The integrated reader supports hands-free access, allowing users with a key fob to gain entry without needing to physically touch the panel.
• High-Quality Pinhole Camera: A discreet pinhole camera allows residents to visually identify visitors before granting access.
• User-Friendly Interface: An OLED screen provides a clear display, and features like vocal synthesis and adjustable sound levels enhance the user experience.
• Robust & Durable: With an IP54 / IK08 protection rating, the unit is well-protected against dust, splashing water, and impacts, making it suitable for both indoor and outdoor installation.
• Intelligent Call Management: The “Disturbance comfort” feature prevents repetitive calls, and timestamped events are logged for security and auditing purposes.
• Flexible Access Control: The system allows for free access time slots and is equipped with a coded keyboard for code-based entry.

Product Specifications:

• Display: OLED screen
• Camera: Pinhole Camera
• Reader: Hands-free proximity reader
• Keypad: Coded keypad with Braille
• Hearing Loop: Yes
• Management: Remote, in real time via www.intratone.info
• Call Numbers: Up to 2 call numbers per user (for up to 10 users)
• Operating Temperature: -20°C to +60°C
• Protection Index: IP54 / IK08
• Dimensions: 150 x 300 x 2.5 mm (V4 intercom)
• Installation: Flush-mounted (surface-mounted box available as an add-on)
• Finish: Stainless steel
• Required Accessories: Requires PSU (Power Supply Unit) & INT-25-0018 data export per user.

Benefits:

• Simplified Management: Remote management eliminates the need for on-site programming and reduces maintenance costs.
• Enhanced Security: Real-time event logging and access control features provide a secure environment for residents and property managers.
• High Accessibility: The inclusion of a hearing loop, Braille keypad, and simplified call functions ensures the system is user-friendly for people of all abilities.
• Durable & Reliable: The robust IP54/IK08 rating guarantees long-term performance in various environmental conditions.
• Modern & Aesthetic: The slim, stainless steel finish provides a clean and contemporary look for any building entrance.

Ideal Applications:

• Low-rise residential apartment buildings.
• Small commercial office buildings.
• Gated communities or private residential complexes with a limited number of users.
• Any building requiring a modern, secure, and remotely managed access control system for up to 10 users.
