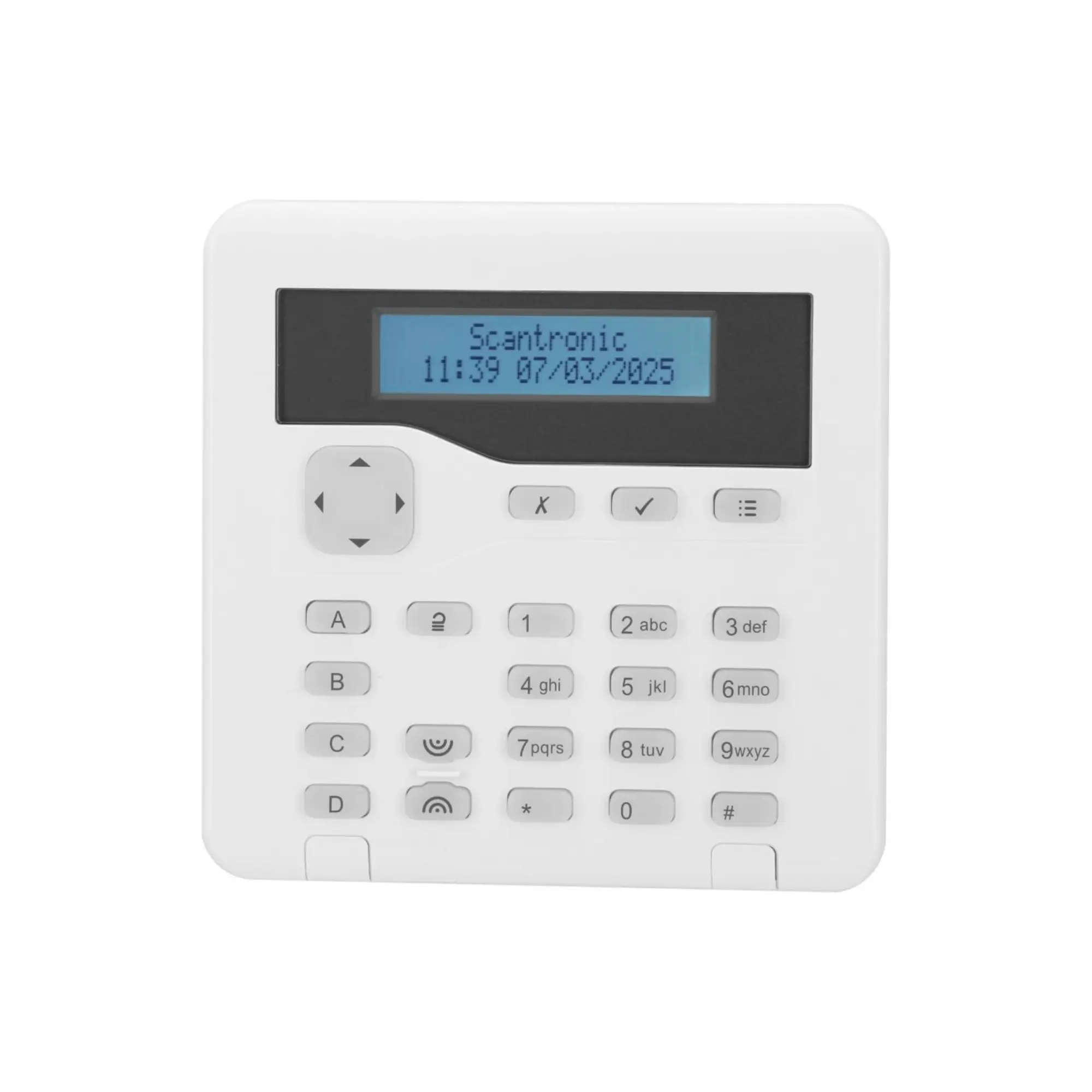

Scantronic KEY-KPZ01: Grade 3 Bus Mounted Keypad with Prox Reader and Two Zones

Full Description

Grade 3 Keypad with Integrated Proximity Access and Local Zone Expansion

The Scantronic KEY-KPZ01 is a robust and intelligent Bus Mounted Keypad designed for high-risk commercial and industrial security environments requiring EN 50131 Grade 3 compliance. This keypad provides the primary interface for users to control their intruder alarm system, featuring a clear display, tactile buttons, and dedicated Personal Attack (PA) keys for immediate emergency signaling.

Beyond standard control, the KEY-KPZ01 significantly enhances system functionality by integrating a proximity (Prox) tag reader for fast, code-free setting/unsetting, and offering two on-board zone inputs. This local zone expansion is crucial for securing the immediate area around the keypad with wired devices, such as a door contact or a local PIR, without having to run long wires back to the main control panel.

Key Features Of The Scantronic KEY-KPZ01

• Grade 3 Compliance: Certified to EN 50131 Security Grade 3, suitable for high-risk applications that demand stringent security standards.
• Bus-Mounted Connection: Communicates with the main control panel via the system bus, simplifying wiring and allowing for distributed processing.
• Integrated Proximity Reader: Features an external prox reader that enables quick, convenient system arming and disarming using proximity tags, enhancing daily usability.
• On-Board Zone Expansion: Includes two wired zone inputs (Zone Inputs: 2), allowing for local hardwired device connection directly at the keypad location.
• Dedicated PA Keys: Features dedicated keys for silent and audible Personal Attack (PA) activation, ensuring immediate emergency response.
• User-Friendly Design: Equipped with a clear display and an internal loudspeaker connection for status tones and notifications.
• Surface Mounted: Designed for easy and secure surface mounting.

Technical Specifications

• Product Name: Eaton surface mounted keypad for intruder system
• Catalogue Number: KEY-KPZ01
• Security Grade: EN 50131 Grade 3
• Environmental Class: Class II
• Connection Type: Wired (Bus Mounted)
• Zone Inputs: 2 (On-board)
• Proximity Reader: External prox support included
• Transistor Outputs: 1
• Display: Yes
• Touch Panel: No (Tactile Buttons)
• Dedicated PA Keys: Yes
• Colour: White
• Dimensions (H x W x D): 128 mm x 128 mm x 28 mm
• Weight: 0.22 kg
• See Data Sheet

Benefits

• High-Level Security: Meets the stringent requirements for Grade 3 installations, ensuring maximum protection for valuable assets and high-risk premises.
• Decentralized Security: The integrated zones allow high-security devices to be placed right at the point of entry/exit without long cable runs.
• Quick User Access: Proximity reader capability allows for rapid, key-fob-based access control, improving staff efficiency and compliance.
• Simple Installation: Bus-mounted design minimizes cable requirements compared to traditional hardwired keypads.

Ideal Applications

• Banks and Financial Institutions: Where Grade 3 protection is mandatory.
• Commercial Buildings: Offices, warehouses, and retail stores with high-value goods.
• Industrial Facilities: Manufacturing plants and data centers requiring controlled access.
• High-End Residential Properties: For premium security installations.
