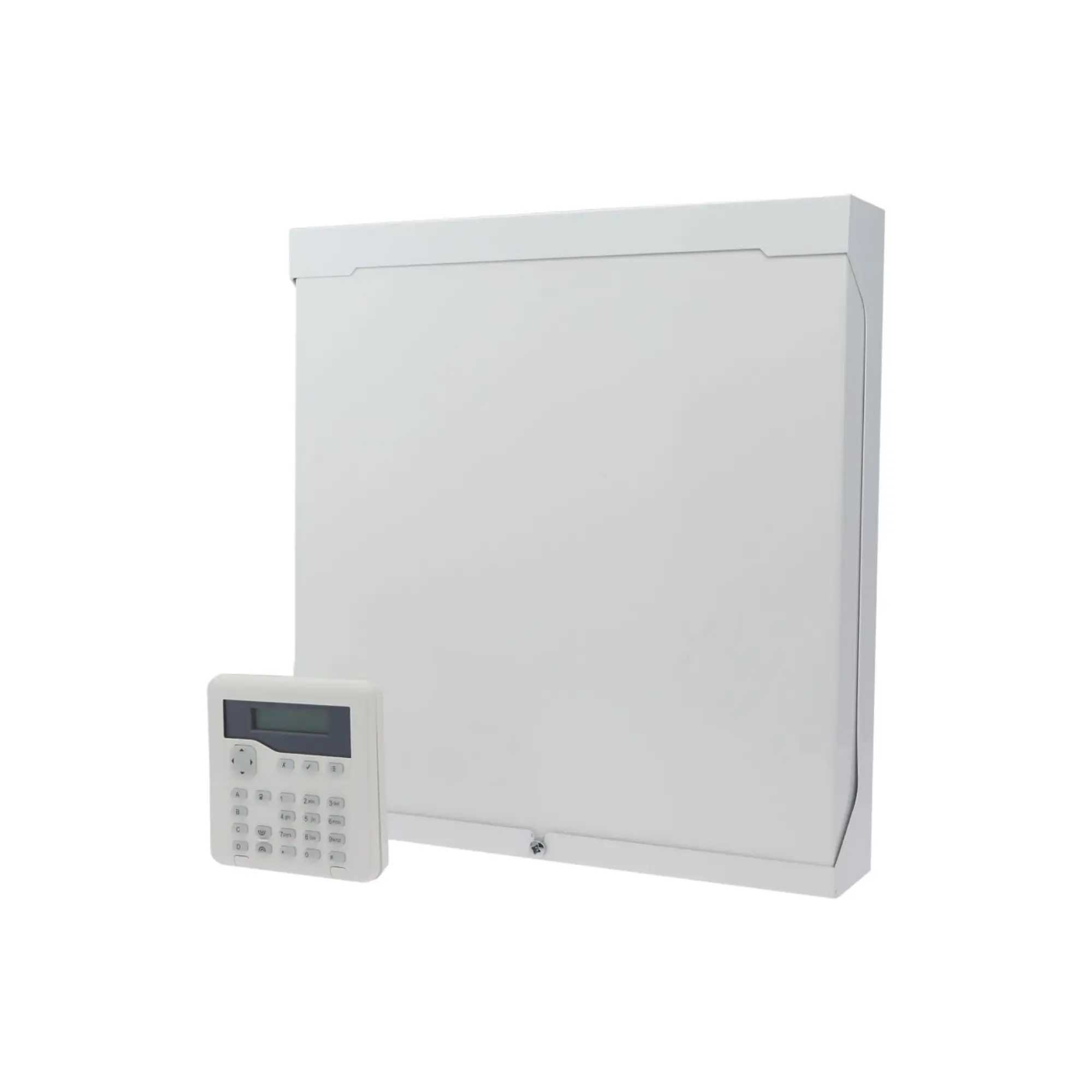

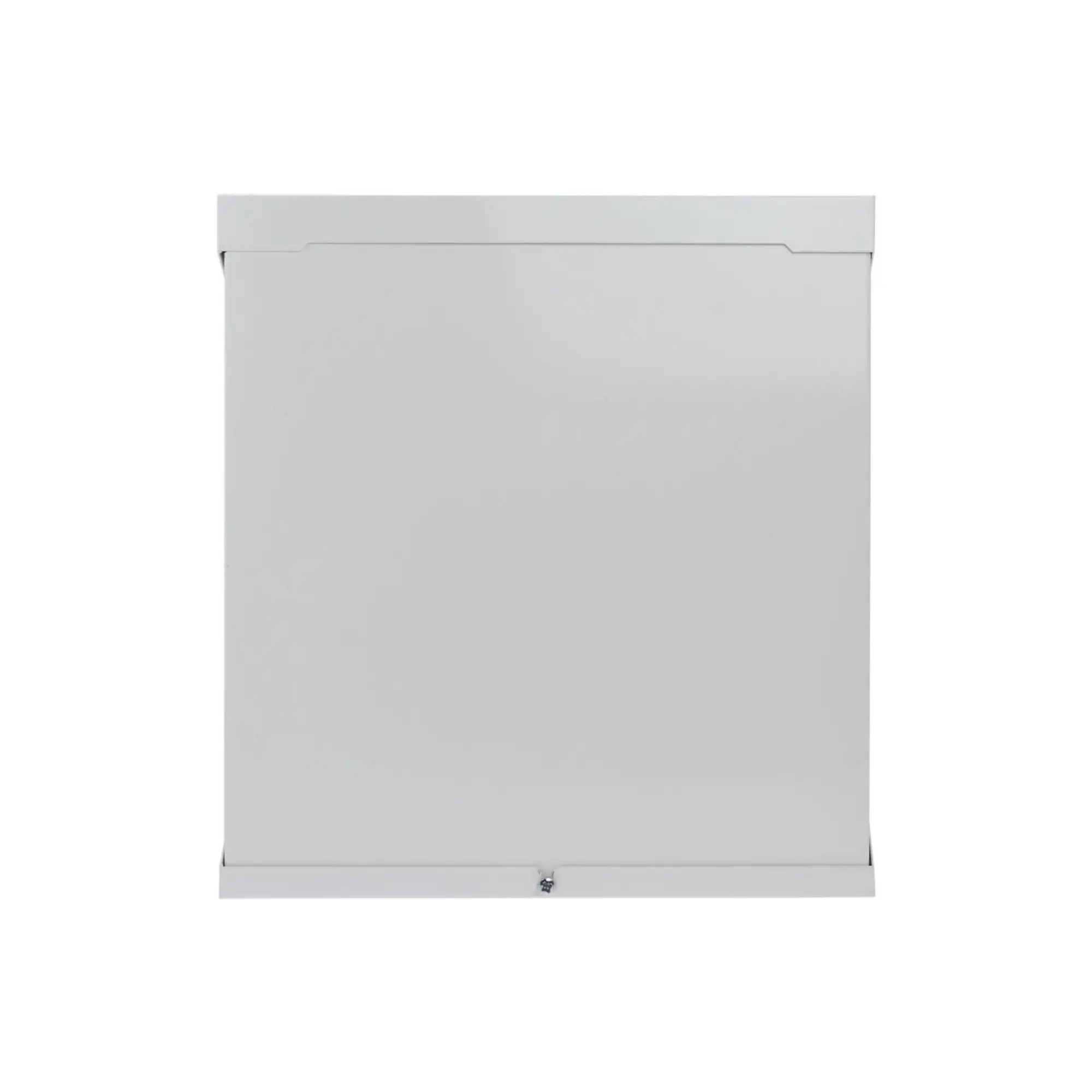

Scantronic PAN-400WE-KPZ: Grade 3 400-Zone Hybrid Control Panel with Prox Key Pad

Full Description

Large-Scale Security: Grade 2 or 3 Intruder Detection Panel Expanding up to 400 Zones

The Scantronic PAN-400WE-KPZ is a high-capacity Hybrid Control Panel engineered for large-scale commercial and industrial installations. Designed to meet the rigorous demands of Grade 2 or 3 security systems, this panel starts with 10 wired zones on board and is fully expandable up to 400 zones using wired and wireless expanders across four separate buses. It comes supplied with a wired keypad featuring a built-in proximity reader and two programmable zones. With Eaton SecureConnect enabled out of the box and a built-in Ethernet port, the PAN-400WE-KPZ offers advanced smart security management, remote configuration, and seamless app integration.

Key Features of the Scantronic PAN-400WE-KPZ:

• Massive Zone Capacity: The Scantronic PAN-400WE-KPZ starts with 10 wired zones and expands up to a total of 400 zones using wired or wireless expanders.
• Four Performance Buses: Supports devices across four buses, ensuring robust data transmission and system stability for large installations.
• Grade 2 or 3 Compliant: Flexible enough to meet EN 50131 Grade 3 standards for high-risk environments or Grade 2 for standard commercial needs.
• Hybrid Functionality: Combines the reliability of wired sensors with the flexibility of wireless peripherals.
• SecureConnect Enabled: Built-in Ethernet port allows for immediate connection to the cloud for remote monitoring, app control, and web browser configuration.
• High User Capacity: The Scantronic PAN-400WE-KPZ supports up to 400 users, making it ideal for organizations with large staff numbers.
• Included Prox Key Pad: Supplied with a wired keypad that includes a proximity tag reader and two on-board zones for added convenience.
• Extended Event Log: Stores up to 6000 log events, providing an extensive audit trail for security managers.
• Robust Power Management: Features a large 3.0A power supply and supports two back-up batteries (up to 17Ah each) for extended standby times.
• Large Output Capacity: Features 6 on-board panel outputs, 16 plug-by outputs, and 50 custom outputs.

Technical Specifications

• Product Name: Eaton Scantronic Wired expandable control panel (PAN-400WE-KPZ)
• Security Grade: EN 50131 Grade 2 or 3
• Zone Capacity: 10 on-board, expandable to 400
• Users: 400
• Log Events: 6000
• Shunt Groups: 20
• Wired Keypads: Supports up to 50
• Bus Devices: Supports up to 50
• Power Supply: 3.0A
• Battery Support: 2 x Max 17Ah
• Dimensions (H x W x D): 427 mm x 400 mm x 100 mm
• Weight: 5.3 kg
• Communications: On-board Ethernet; Optional Plug-on GSM, PSTN, 4G, WiFi
• Sounders: Supports 4 Radio Internal, 4 Radio External, 2 Wired Internal, 2 Wired External
• See Full Data Sheet

Benefits

• Ultimate Scalability: Capable of handling the largest sites with up to 400 zones and 50 keypads.
• High-Risk Protection: Grade 3 capability ensures the system is suitable for banks, high-value retail, and critical infrastructure.
• Remote Efficiency: Cloud connectivity allows installers to diagnose issues remotely and end-users to manage their security from anywhere.
• Resilient Power: Dual battery support ensures the system remains operational for longer periods during power outages.
• Comprehensive Audit: The massive 6000-event log is essential for tracking activity in high-traffic commercial environments.

Ideal Applications

• Large Commercial Premises: Office towers, shopping centres, and large logistics hubs.
• Industrial Facilities: Factories and warehouses requiring extensive zone coverage and Grade 3 security.
• Educational Campuses: Schools and universities with multiple buildings and high user counts.
• Healthcare Facilities: Hospitals and clinics needing robust, segmented security.
• High-End Residential: Large estates requiring extensive perimeter and internal protection.
