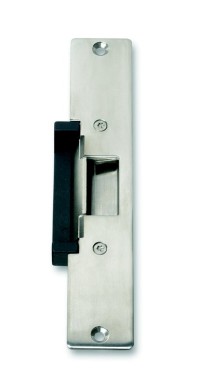

SR1-REL-310-1224 Selectable Voltage 12/24VDC Electric Release with selectable Fail-Secure / Fail-Safe Operation

Dual-Voltage ANSI-Style Electric Release 12 / 24 VDC Selectable – with Long & Short Faceplates
  • For wooden and metal door frames
  • Fail-safe / fail-secure selectable operation – very simple screw position selection
  • Voltage: 12 VDC or 24 VDC – selectable
  • Voltage tolerance:  ±15%
  • Current:  0.28A @ 12 VDC, 0.14A @ 24 VDC (at temperature 20°C)
  • Operating Temperature: -10°C to +45°C
  • Humidity: 0% to 95% non-condensing
  • Faceplate material: stainless steel
  • Greater than 900Kg (2000) Lbs jaw strength pull testing
  • Dimensions (Long Faceplate): 202mm (L) x 36.5mm (W) unit depth 33mm
  • Dimensions (Short Faceplate): 124mm (L) x 36.5mm (W) unit depth 33mm
  • Approximate shipping weight (Long Faceplate): 625g
  • Approximate shipping weight (Short Faceplate): 490g

Product Specifications

Weight 380 g


Power Requirement

12VDC or 24VDC Selectable

Safety Features

Fail-Safe, Fail-Secure

Form Factor

Electric Strike

SKU SR1-REL-310-1224
