ANSI-Style Electric Strike With Selectable 12VDC/24VDC Power And Fail-Secure/Fail-Safe Operation

Enhance door security and access control with the versatile and reliable ANSI-Style Electric Strike with Selectable Voltage & Operation. This strike offers unmatched flexibility with selectable 12VDC/24VDC power and fail-safe/fail-secure operation, making it suitable for diverse applications.

12/24 VDC ANSI-style electric release (electric strike) offers flexibility being field-selectable for 12VDC or 24VDC power and fail-safe / fail-secure operation.

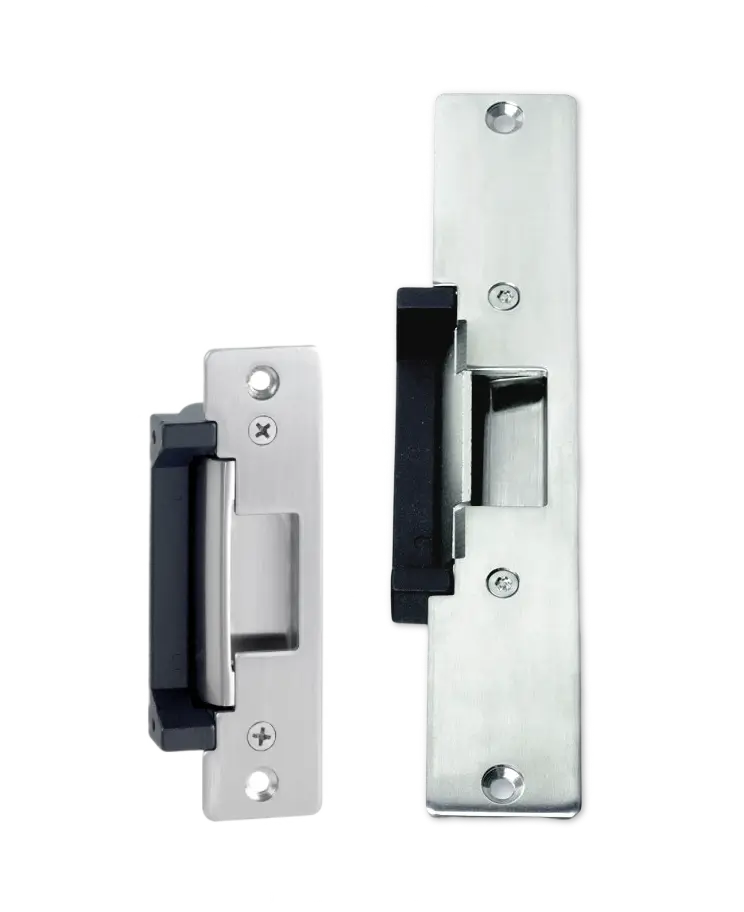

The ANSI-Style Electric Strike with Selectable Voltage & Operation is available in standard or monitored versions with either long face-plate or short face-plate – please select when placing your order.

Full Description

Introducing the Ultimate in Door Security: The ANSI-Style Electric Strike with Selectable Voltage & Operation

For professional installers and security specialists seeking unparalleled door security and access control, look no further than our ANSI-Style Electric Strike with Selectable Voltage & Operation. This strike sets the standard for versatility and reliability, offering selectable 12VDC/24VDC power and fail-safe/fail-secure operation to meet diverse application needs. You can also choose between monitored and unmonitored version for situations that would require this feature.

Key Features:

  • Selectable Voltage: Tailor your setup with the choice between 12VDC or 24VDC to seamlessly integrate with existing power systems.
  • Field-Selectable Fail-Safe/Fail-Secure: Customise door functionality to unlock upon power loss (fail-safe) or remain locked (fail-secure) to match your security requirements.
  • Long & Short Faceplate options: The long Faceplate option is ideal for wooden doors and the short faceplate for metal door frames, ensuring compatibility across various installations.
  • Durable Stainless Steel Construction: Built to last with corrosion-resistant materials, providing long-term performance in any environment.
  • High Holding Force: Withstands over 2000 lbs (900 Kg) of pull force, delivering unmatched security for peace of mind.
  • Wide Operating Temperature: Functions reliably in temperatures ranging from -10°C to +45°C, ensuring consistent performance in diverse conditions.
  • Low Power Consumption: Operates efficiently at 0.25A @ 12VDC and 0.15A @ 24VDC, minimising energy usage without compromising performance.
  • Easy Installation: Simplified screw selection for voltage and operation mode ensures quick and hassle-free setup.

With its unmatched flexibility, reliability, and ease of installation, our ANSI-Style Electric Strike with Selectable Voltage & Operation is the ultimate solution for professionals seeking superior door security and access control.

Technical Specifications:

  • Long faceplate version: suitable for wooden door frames
  • Short faceplate version: suitable for metal door frames
  • Fail-safe / fail-secure selectable operation. Very simple screw position selection
  • Voltage: 12 VDC or 24VDC (selectable)
  • Voltage tolerance: ±15%
  • Current: 0.25A @ 12 VDC,0.15A @ 24 VDC (at temperature 20°C)
  • Operating Temperature: -10°C to +45°C
  • Humidity: 0% to 95% non-condensing
  • Faceplate Material: stainless steel
  • Greater than 900Kg (2000) Lbs jaw strength pull testing
  • Long faceplate dimensions: 202mm (L) x 36.5mm (W) Unit depth 33mm,
  • Short faceplate model dimensions: 124mm (L) x 36.5mm (W) Unit depth 33mm
  • Approximate nominal weight: long faceplate model 625g, short faceplate model 490g

Shop All Electric Strikes

Product Specifications

Weight 632 g
Dimensions N/A
Faceplate Length

Long Faceplate, Short Faceplate, Long Faceplate (Monitored), Short Faceplate (Monitored)

Construction

Stainless Steel

Power Requirement

12 VDC, 150 mA, 24 VDC, 250 mA

Holding Force

900 Kg

Technology

Electric Strike

Operating Temperature

-10°C to 45°C

Orientation

Fail-Safe, Fail-Secure

Brand

GEM

SKU SR1-REL-310ML, SR1-REL-310MS, SR1-REL-310L, SR1-REL-310S
