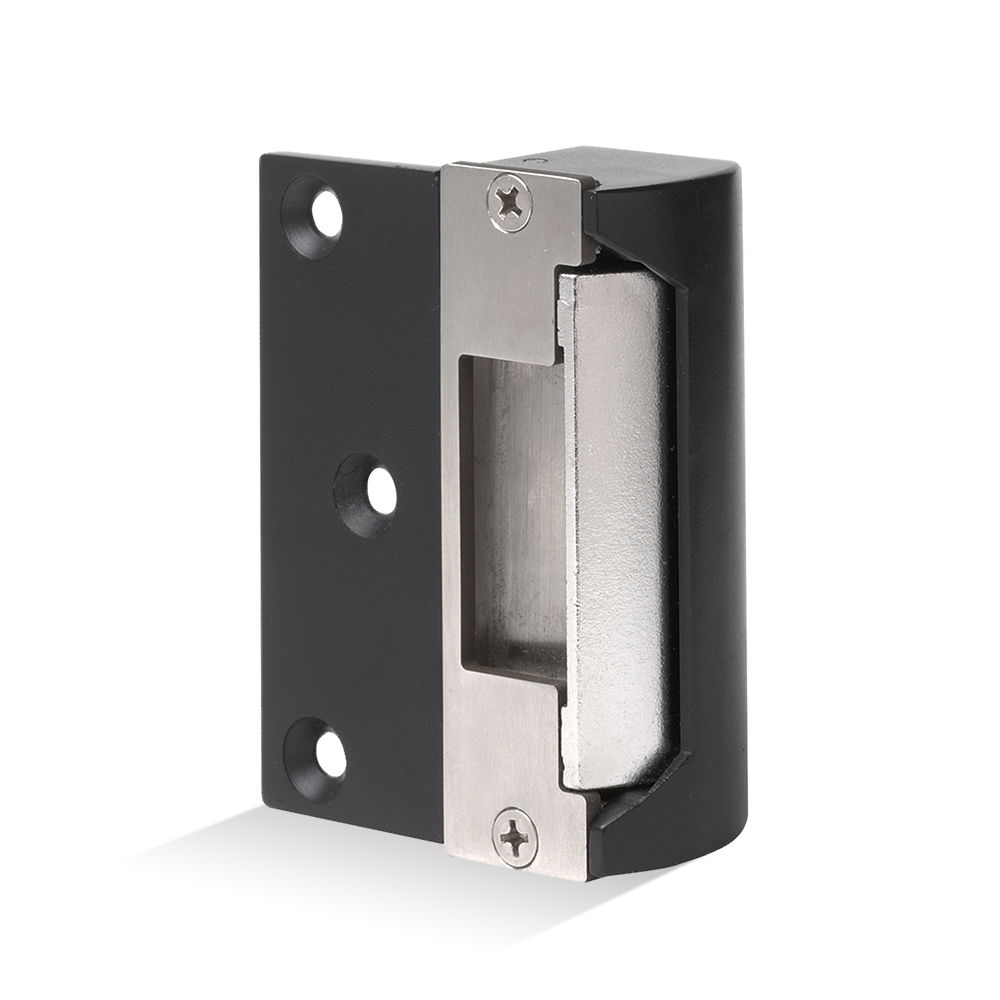

SR1-REL-350-24V Electric Rim Latch release – 24VDC

ANSI-Style Release – for Rim (Yale Type) Latch – 24VDC VERSION

• Selectable Fail-Safe or Fail-Secure operation in one unit (configure at installation)
• Voltage: 24VDC ±15%
• Current (at temperature 20°C) : 0.15A @ 12 VDC
• Operating Temperature: -10°C to +45°C
• Lock surface temperature when powered: Ambient plus 20°C
• Humidity: 0% to 95% non-condensing
• Face Plate Material: stainless steel
• Greater than 900Kg (2000 lbs) jaw strength pull testing
• Dimensions (overall): 86m (L) x 62mm (W)
• Approximate weight: 380g
