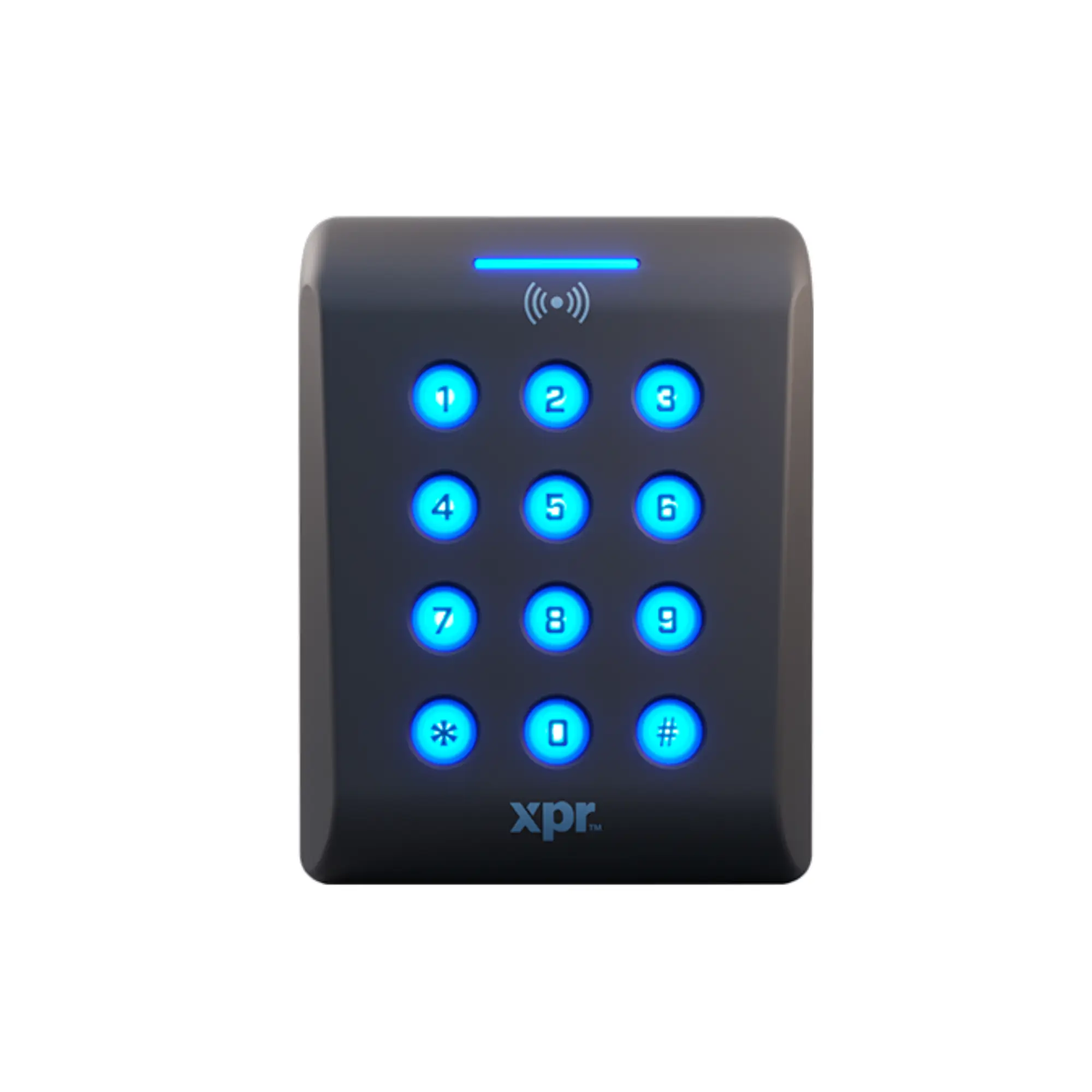

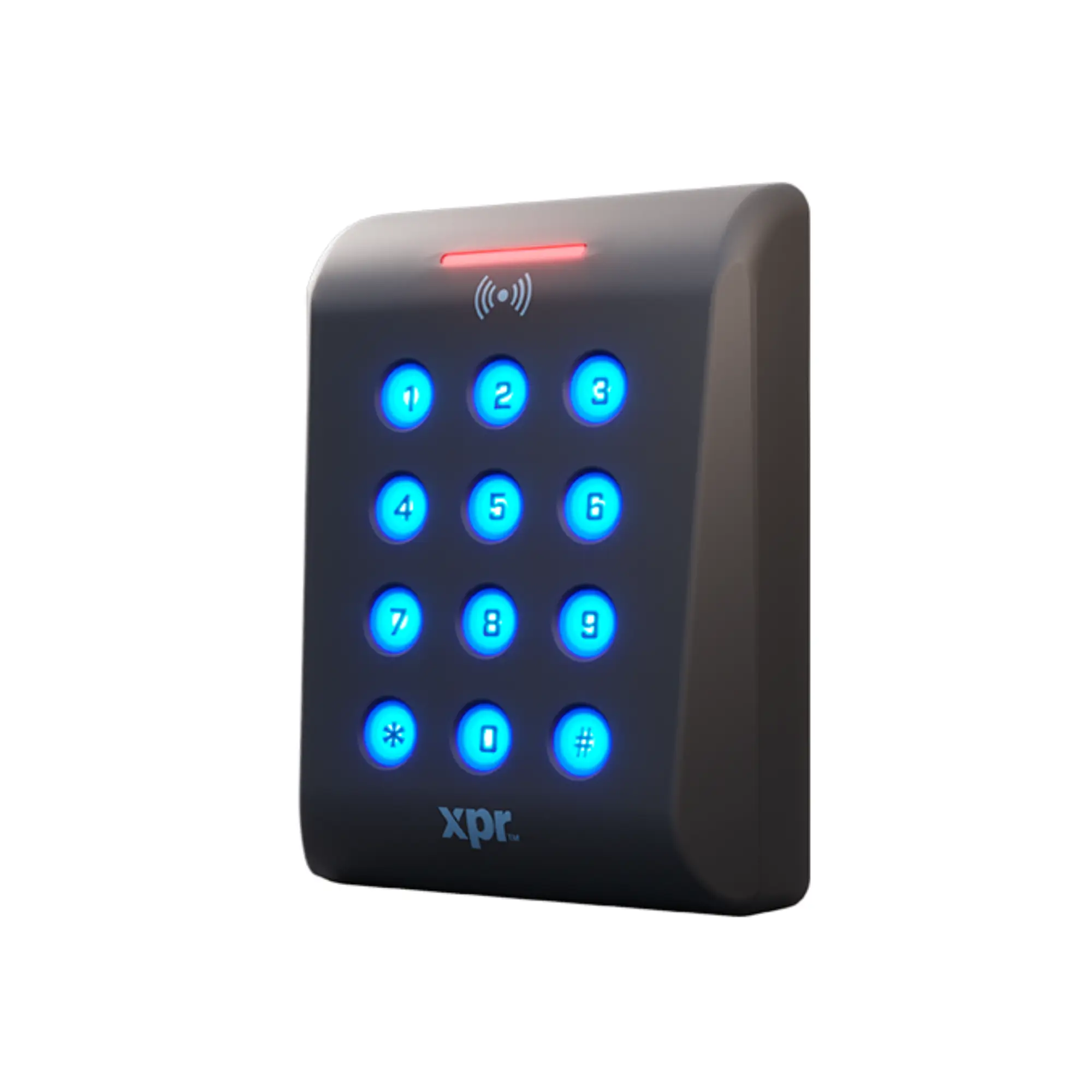

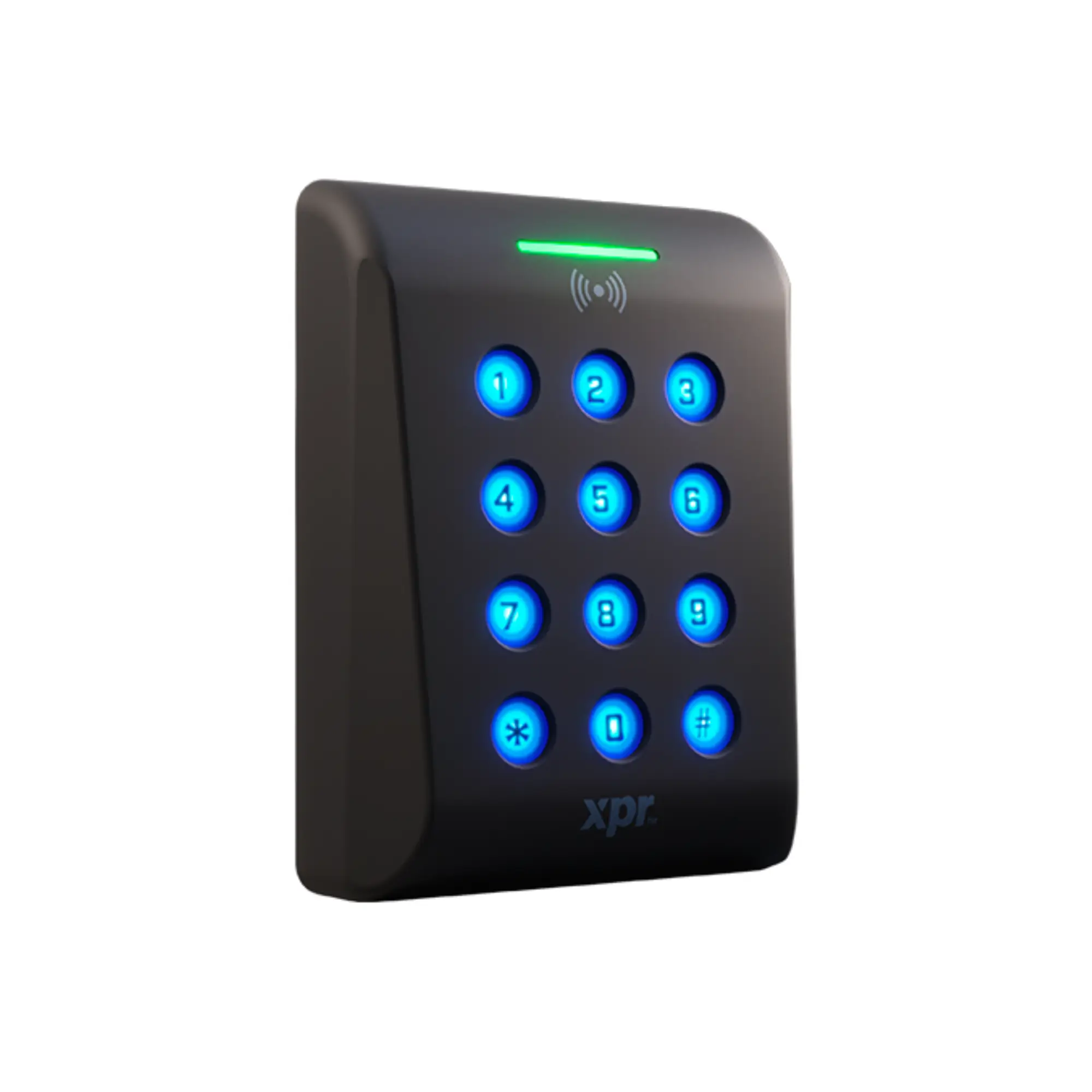

XPR XP-K Series: Multi Tech Keypad Reader with QR, Bluetooth and Multi-Frequency Options

Full Description

Multi-Technology Keypad Reader with Optional QR, Bluetooth, and X-Secure Encryption

The XPR XP-K Series is a robust and highly secure range of multi-technology keypad readers designed for maximum flexibility in modern access control. Built for wallswitch mount installation, these readers combine the security of code entry with advanced credential reading at 13.56MHz, supporting CSN from iCLASS, NFC, MIFARE, and DESFire credentials. The series offers several variable models that incorporate next-generation access methods, including Bluetooth (Mobile ID) and QR Code scanning, with top-tier security offered via X-Secure encryption. All models are highly durable with IK10 and IP65 ratings.

Product Variations & Key Technologies:

XPR XP-K-MF

• Key Technology: RFID (13.56MHz) + Keypad
• Key Credential Support: MIFARE, DESFire, iCLASS CSN, NFC
• Highest Security Option: Standard CSN

XPR XP-K-MF-X

• Key Technology: RFID (13.56MHz) + Keypad
• Key Credential Support: X-Secure DESFire EV3, MIFARE, iCLASS CSN
• Highest Security Option: X-Secure

XPR XP-K-MFBT

• Key Technology: Bluetooth + 13.56MHz RFID + Keypad
• Key Credential Support: MIFARE, DESFire, iCLASS CSN, NFC, Mobile ID
• Highest Security Option: Standard CSN

XPR XP-K-MFBT-X

• Key Technology: Bluetooth + 13.56MHz RFID + Keypad
• Key Credential Support: X-Secure DESFire EV3, MIFARE, iCLASS CSN, Mobile ID
• Highest Security Option: X-Secure

XPR XP-K-QR-MFBT

• Key Technology: QR Code + Bluetooth + 13.56MHz RFID + Keypad
• Key Credential Support: MIFARE, DESFire, iCLASS CSN, NFC, QR Codes
• Highest Security Option: Standard CSN

XPR XP-K-QR-MFBT-X

• Key Technology: QR Code + Bluetooth + 13.56MHz RFID + Keypad
• Key Credential Support: X-Secure MIFARE, DESFire, iCLASS CSN, NFC, QR Codes
• Highest Security Option: X-Secure

Core Features (Common to all models):

• Multi-Technology Keypad: Combines a secure code entry keypad with advanced 13.56MHz RFID reading (NFC, MIFARE, DESFire, iCLASS CSN).
• Robust Durability: Built for tough environments with high protection ratings:
  • IP65 Rated: Fully weatherproof (resin potted) for Indoor/Outdoor use.
  • IK10 Rated: High resistance to physical impact and vandalism. (Note: External use in direct rain requires the XP-ATP protection cover).
• Universal Communication: Compatible with nearly all access controllers on the market, offering Wiegand, RS-485, and OSDP output.
• Keypad: Features blue illuminated and recessed touch sensor keys for reliable, low-wear operation and clear visibility.
• Wide Operating Range: Functions reliably in extreme temperatures, from -35°C to +70°C.
• Flexible Configuration: Configuration and firmware updates can be performed easily via a USB-C input or using a programming card, allowing for quick selection of identifiers and communication protocols.
• Tamper Protection: Includes tamper protection for enhanced physical security.
• DESFire Security: Built upon MIFARE DESFire technology, allowing for advanced encryption possibilities for fobs/cards and the reader itself.

Advanced Features (Model Dependent):

• Bluetooth (BT Models): Enables secure access via Mobile ID credentials using a user’s smartphone.
• QR Code (QR Models): Allows for access using scanned QR codes (ideal for temporary access, visitors, and deliveries).
• X-Secure Encryption (-X Models): Reads highly secure X-Secure credentials (programmed DESFire EV3), providing proprietary, irreversible data encryption to prevent credential cloning.

Technical Information:

• Mounting: Surface mount (Wallswitch size)
• Housing: Polycarbonate copolymer (UL94)
• Communication: Wiegand, RS-485, OSDP
• Keypad: Blue illuminated, recessed touch sensor keys
• Reading Range: Up to 9 cm (depending on tag)
• Operating Frequency: 13.56 MHz
• Operating Voltage: 9 – 15 V DC
• Max. Consumption @ 12 V DC: 100 mA (nominal)
• Environmental Rating: IP65
• Impact Protection: IK10
• Operating Temperature: -35°C to +70°C
• See Data Sheet

Benefits:

• Maximum Security: The combination of keypad, advanced credential reading, and optional X-Secure encryption provides triple-layered security against unauthorized access and cloning.
• Unmatched Flexibility: Offers a single platform to manage codes, traditional cards, mobile phones (Bluetooth), and temporary access (QR codes).
• Extreme Durability: IP65 and IK10 ratings ensure reliable, long-term operation in high-traffic and harsh environments.
• Future-Proof: Supports the latest secure credential and mobile access technologies, ensuring a scalable and sustainable investment.

Ideal Applications:

• High-Security Entrances: Data centres, laboratories, and financial institutions requiring dual-factor authentication (Code + Card/Fob).
• Commercial and Residential Buildings: Managing codes for temporary access, fobs for residents/employees, and mobile credentials for convenience.
• Outdoor/Public Access: Gates and entry points requiring a vandal-resistant and weather-protected device.
