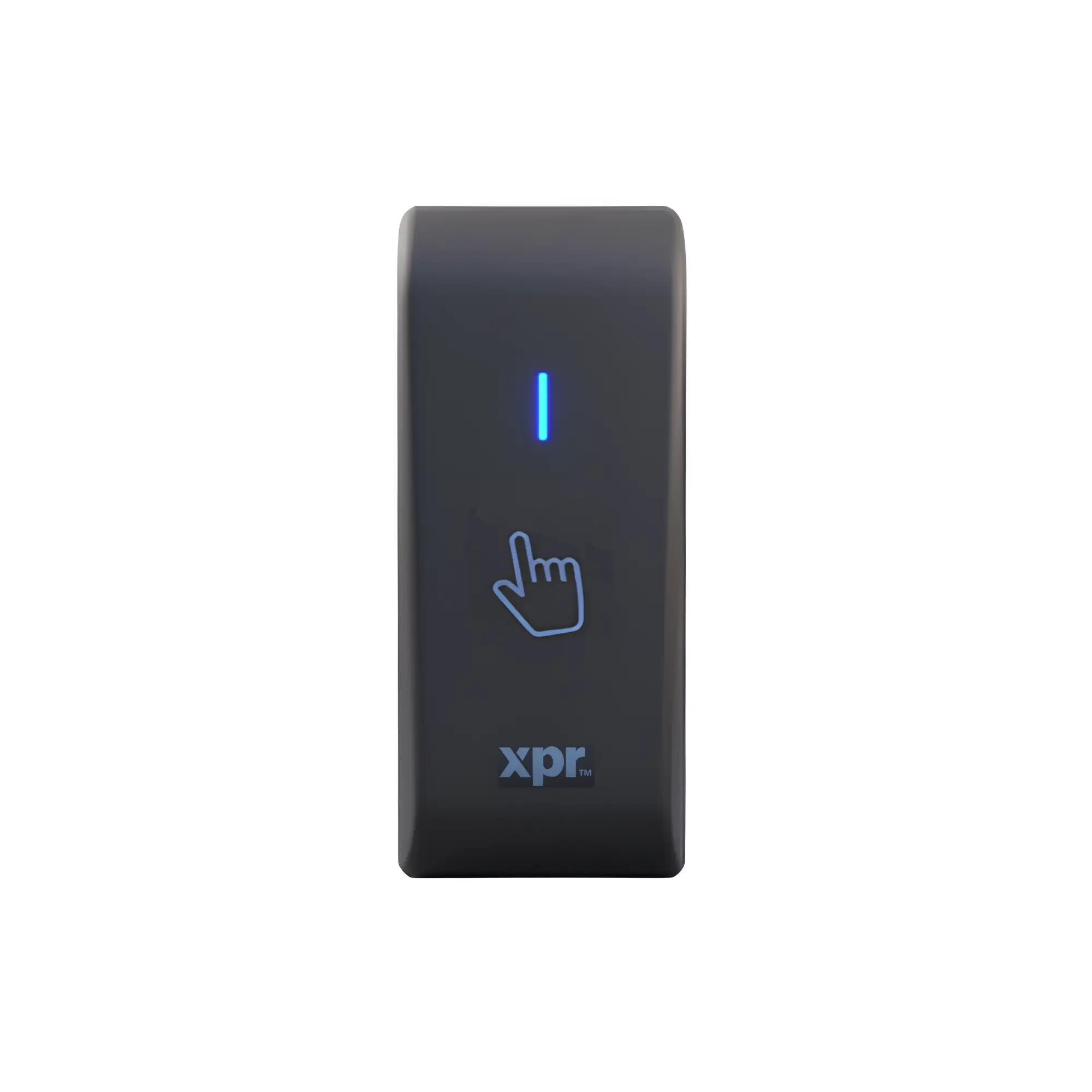

XPR XPM-PB: Mullion REX Button – Touch Capacitive and IP65 Rated
The XPR XPM-PB is an advanced, high-durability “Request to Exit” (REX) button, specifically designed for mullion mounting. It uses touch capacitive technology to offer reliable, non-mechanical door release. With its exceptional IP65 and IK11 ratings, this button is built to withstand both harsh weather and vandalism, making it an ideal companion to the XPR XPM reader series, which it is colour-matched to.
Key Features:
- Dual Relay Output: The XPR XPM-PB features two built-in relays, allowing the button to simultaneously control two separate devices, such as the door lock and a security alarm panel.
- Flexible Operating Modes: The button can be configured for two types of operation:
- Pulse Mode: Provides a momentary contact, ideal for standard door strike or maglock release.
- Latch Mode: Provides an on/off contact for continuous control or special functions.
- Visual Feedback: An LED indicator and an arrow symbol provide clear, intuitive visual guidance for the user.
- Voltage: Compatible with standard access control systems, operating on 12VDC or 24VDC.
Full Description
The XPR XPM-PB: Slim, Vandal-Resistant, Touch Capacitive REX Button for Mullion Installation
The XPR XPM-PB is a high-specification mullion-mount Request to Exit (REX) button that combines modern touch capacitive technology with extreme durability. Designed with a slim profile to fit perfectly on door frames, this non-mechanical button is highly reliable and wear-resistant. It boasts both IP65 and IK11 protection ratings, making it robust against water, dust, and vandalism. Its sleek black finish and dimensions are specifically engineered to match XPM readers, providing a uniform and highly professional aesthetic for any secure entry/exit point.
Key Features of the XPR XPM-PB:
- Slim Mullion Design: The XPR XPM-PB is engineered for surface mounting on narrow door frames (mullions), providing a discreet and streamlined appearance.
- Touch Capacitive Technology: Eliminates mechanical moving parts, offering superior reliability, extended lifespan, and wear resistance compared to traditional push buttons.
- Extreme Environmental Protection:
- IP65 Rated: Provides protection against dust and water jets, ensuring reliable performance in both internal and external environments.
- IK11 Rated: Offers the highest level of vandal resistance for a push button, protecting the unit from high physical impact.
- Flexible Operation Modes: The button is configurable for either pulse mode (momentary contact for standard exit) or latch mode (toggle contact for holding the door open).
- Dual Voltage Support: Compatible with both 12VDC and 24VDC power systems, allowing for flexible integration.
- Dual Relay Output: Equipped with 2 relays, providing a versatile output for activating the locking mechanism and simultaneously signalling an access control panel or alarm system.
- Visual Indication: Includes an integrated LED indicator for clear operational status feedback, along with a visible arrow symbol to designate the exit function.
- Aesthetic Match: Finished in black to perfectly match the XPM reader series, ensuring design consistency across the installation.
Technical Specifications:
- Mounting: Mullion mount (Slim Profile)
- Operation: Touch Capacitive (REX)
- Power: 12VDC / 24VDC (Dual Voltage)
- Output: 2 Relays
- Modes: Pulse or Latch (Configurable)
- Ingress Protection: IP65 (Weatherproof)
- Impact Protection: IK11 (Vandal Resistant)
- Colour: Black
- Visual Signal: LED Indicator and Arrow Symbol
Benefits:
- Maximum Durability: The combination of IP65 and IK11 ratings ensures the XPR XPM-PB button functions reliably in the harshest conditions, with strong resistance to vandalism and wear.
- High Reliability: The non-mechanical, touch-based operation prevents typical mechanical failures, leading to fewer maintenance call-outs.
- Clean Aesthetics: The slim, black mullion design is highly discreet and integrates perfectly into modern architectural settings.
- Versatile Integration: Dual relays and configurable modes make it easy to interface with virtually any access control system.
Ideal Applications:
- Door frames (mullions) in commercial, government, and high-security facilities.
- Outdoor gates and entry points where weather and vandalism are a concern.
- Clean room environments or other areas where a non-contact button is preferred.
- Any professional installation utilising the XPR XPM reader series, requiring a matching, highly durable exit device.
Product Specifications
| Brand | XPR |
|---|---|
| Device Type | Exit Button |
| Protection Rating | IP65, IK11 |
| Power Requirement | 12-24 VDC |
| Output Relays | 2 |
| SKU | XPR-XPM-PB |
