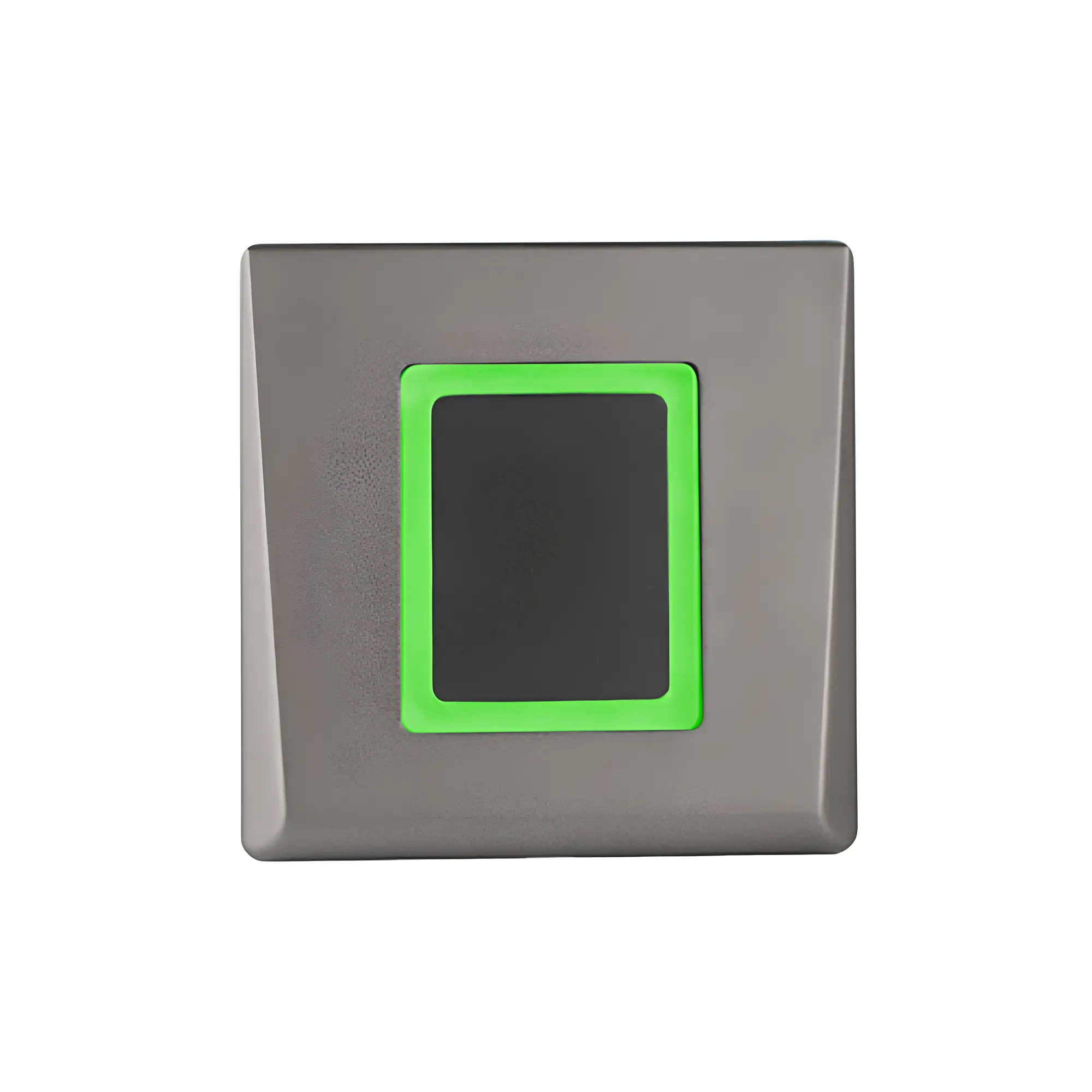

XPR DINMTPX-MF-SA: Flush-Mount MIFARE Reader for XPR Offline Systems

Full Description

The Ideal Flush-Mount MIFARE Reader for Hotels and Modern Offices

The XPR DINMTPX-MF-SA is a state-of-the-art flush-mount MIFARE reader designed specifically for XPR offline systems. This sleek and discreet reader offers a powerful and cost-effective access control solution, making it ideal for hotels and other applications where aesthetics are as important as security. Its unique modular design allows the electronics to be installed seamlessly into a standard electrical gang box, with a matching mask available in UK and European standards. The reader can be configured easily via a micro-USB connector or through the convenience of programming cards.

Key Features of the DINMTPX-MF-SA:

• Flush-Mount Design: Provides a clean and professional installation by sitting flush with the wall. The modular system, including the electronics and separate mask, simplifies mounting in standard electrical gang boxes.
• Offline Access Control: The DINMTPX-MF-SA functions as a standalone unit, eliminating the need for a constant network connection. This makes it a perfect, low-cost solution for a wide range of single-door applications, particularly in hotels where guests’ access can be managed via programmed cards.
• MIFARE Read/Write Technology: Supports MIFARE Classic 1K and 4K memory cards, allowing for secure access control. The DINMTPX-MF-SA reader can also support a “credit on-card” option with software configuration, providing a flexible way to manage paid services.
• Flexible Programming: Offers two convenient programming methods:
  1. Micro-USB Connection: Program the reader directly from a PC using the built-in micro-USB connector on the back of the electronics unit.
  2. Card Configuration: Create programming cards from the software and use them to easily initialize, configure, and collect events from the readers on-site, providing a simple, keyless management solution.
• Visual Status Indicators: A multi-colour rectangular status LED provides clear visual feedback:
  • Orange LED: Idle mode
  • Green LED: Access granted
  • Red LED: Access denied
• Integrated Relay: The XPR DINMTPX-MF-SA features a built-in relay (2 A; 24 V AC/DC) with a configurable trigger time (1-255s or toggle) for direct lock control.
• High-Capacity Memory: While offline, the DINMTPX-MF-SA can store up to 3500 events and has a 500-card blacklist capacity.
• Tamper Protection: Includes a tamper switch for enhanced physical security.
• Exit Button Input: Has a dedicated input for connecting an external exit button.

Technical Specifications:

• Mounting: Flush-mount
• Housing: ABS
• Colour: Silver (standard model)
• Technology: RFID, MIFARE Classic 1K, 4K
• Dimensions (L x H x W): 80 x 80 x 9 mm (mask)
• Weight: ~150 g (electronics)
• Read Range: Up to 6 cm
• Events Memory: 3500 events
• Blacklist Capacity: 500
• Data Connectivity: USB micro connector
• Voltage: 12 V DC
• Consumption: Maximum 150 mA
• IP Rating: IP40
• Operating Temperature: -20ºC to 50ºC
• Output: 1 built-in relay (2A; 24V AC/DC) or RS-485 for remote relay units
• See the Manufacturers Data Sheet

Benefits of the Offline Flush-Mount MIFARE Reader:

• Discreet Aesthetics: The flush-mount design and clean finish of the DINMTPX-MF-SA provides a high-end, unobtrusive appearance, making it perfect for modern interiors.
• Cost-Effective: A secure and reliable access control solution without the expense of networking infrastructure and complex wiring to each door.
• Simplified Management: The card-based programming and event collection system makes on-site management of user access easy and efficient.
• Versatile Use: The robust offline capabilities and modular design make it an ideal choice for a variety of single-door applications.
• Secure & Reliable: Despite being an offline system, it offers key security features like event memory, a blacklist, and tamper protection.

Ideal Applications:

• Hotels and Motels: Provides a cost-effective and easy-to-manage system for guest access to rooms.
• Offices and Commercial Buildings: A secure and aesthetically pleasing solution for individual office doors.
• Apartment Buildings and Residential Complexes: Ideal for managing access to residential units.
• Any application requiring a secure, standalone, and visually discreet access control solution.
